TOMEI

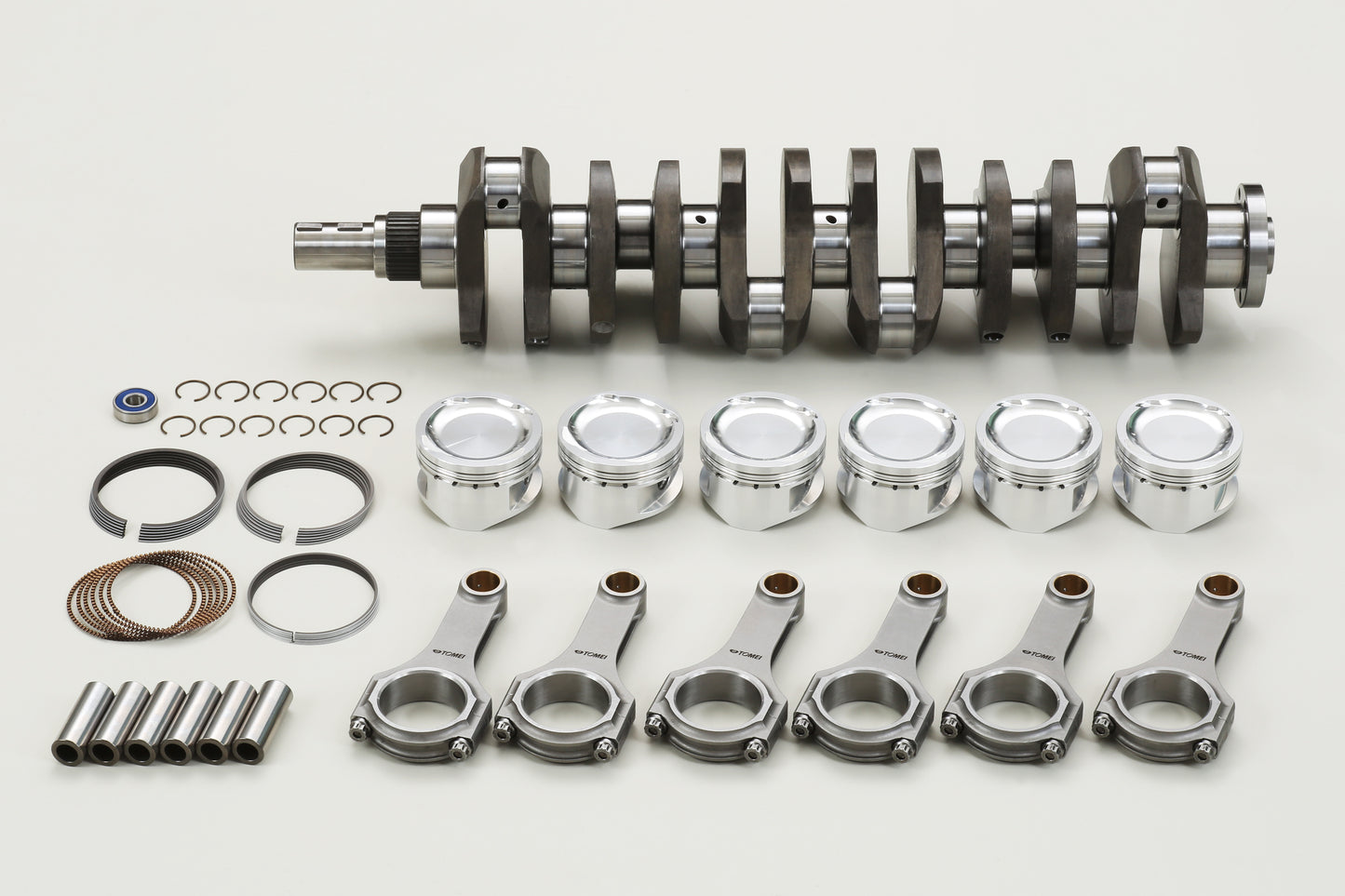

Tomei 2JZ36KIT 87.0mm
Tomei 2JZ36KIT 87.0mm
Regular price
£7,462.80
Regular price
Sale price
£7,462.80
Unit price
per
Tax included.
Some items may take 3-5 days to ship.
Couldn't load pickup availability
Significant toque gain proved under racing condition and through strict R&D. Characteristic torque curve and great response will compete larger single turbines.
PRODUCT INFO
| APPLICATION | BORE | P/N | NOTES | |
|---|---|---|---|---|
| 2JZ | φ87.0 | 252004 |
【With Conrod Bearings Bundle Pack】
| APPLICATION | BORE | P/N | NOTES | |
|---|---|---|---|---|
| 2JZ | φ87.0 | 250018 |
FEATURE / SPEC
SPEC
PISTON
|
Bore (Φ) |
Pin Dia (Φ) |
Length (mm) |
Recess |
Comp.Height (mm) |
PistonCrownVolume (cc) |
Weight (g) |
Pin weight (g) |
Total weight (g) |
|---|---|---|---|---|---|---|---|---|
| 87.0 | 22.0 | 60 | ○ | 29.5 | 23.0 | 317 | 112 | 429 |
| Top ring B×T(mm) | Second ring B×T(mm) | Oil ring B×T(mm) |
|---|---|---|
| 1.2×3.1 | 1.2×3.9 | 2.5×3.1 |
CRANKSHAFT
|
Stroke (mm) |
Weight (kg) |
STD Stroke (mm) |
Material |
Pin Dia. (Φ) |
journal Dia. (Φ) |
|---|---|---|---|---|---|
| 100.0 | 29.0 | 86.0 | SNCM49 | 52 | 62 |
CONNECTING ROD
| Conrod | Conrod Bolt | Conrod Bearing | Material | ||||
|---|---|---|---|---|---|---|---|
|
Length (mm) |
L.Diam×Length (mm) |
S.Diam×Length (mm) |
Bolt Size |
Height Under Neck (mm) |
Inner Circum (mm) |
Bearing Width (mm) |
|
| 139.0 | φ55×26.0 | φ23×26 | 3/8-24 | 40 | 52 | 19.0 | SNCM439 |
Compression Ration Specs
| Bore | φ87.0 | |
|---|---|---|
|
Gasket Thickness (mm) |
1.5 | 9.0 |
| 1.8 | 8.8 | |
| 2.0 | 8.7 | |
| Gasket Bore | 87.5 | |
DATA
KIT WITH BEARINGS INCLUDED
Tomei has made an option to include their Competition Bearing Series product with our kits. All the engine internals are brought to static temperature (20 degrees Celcius) and blueprinted with 0.040~0.060mm clearance bearings.This eliminates the measuring and blueprinting process for the customer, so the kit can be installed with less hassle.
