TOMEI

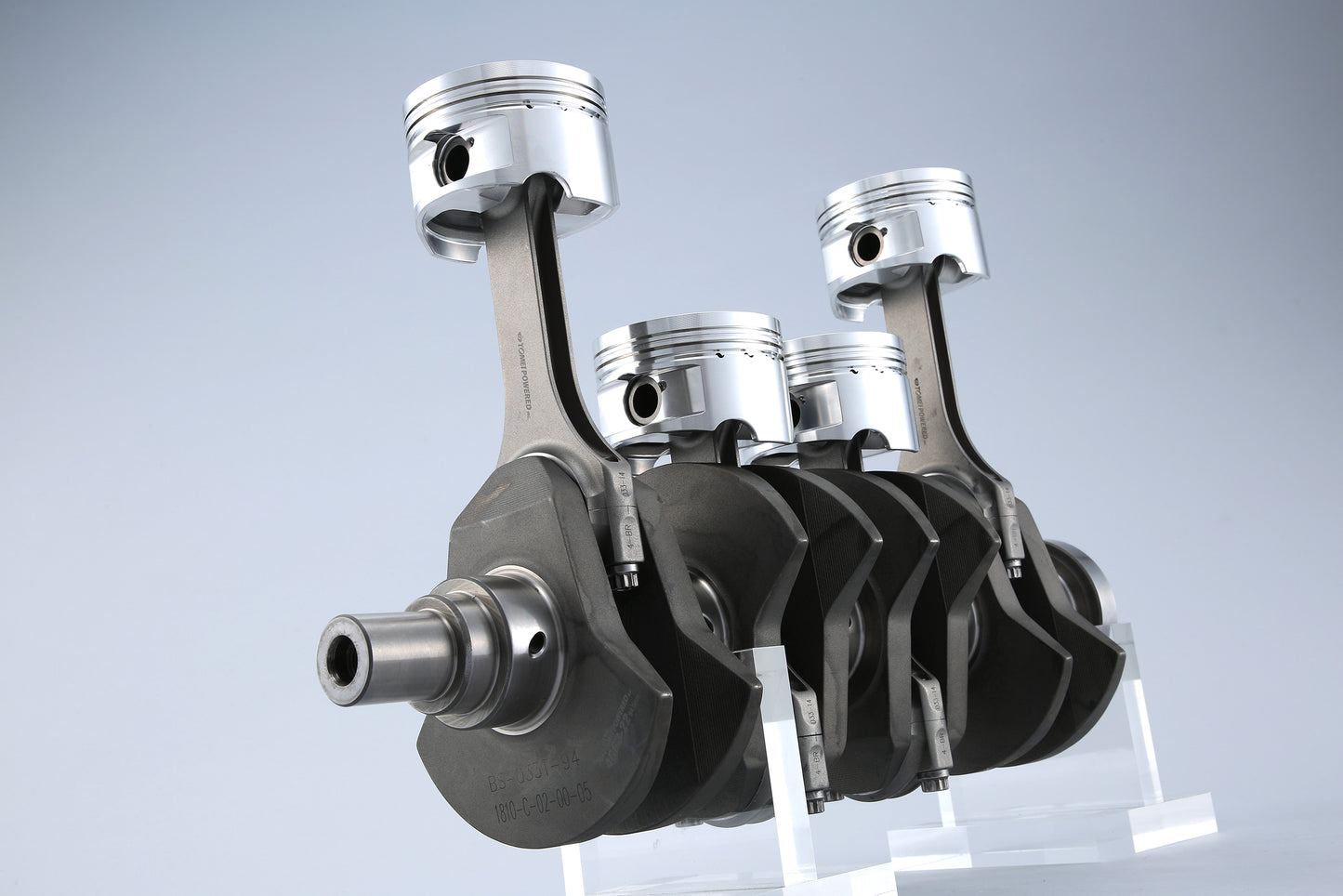

Tomei 4G63-22KIT 85.5mm
Tomei 4G63-22KIT 85.5mm
Regular price
£3,226.11
Regular price
Sale price
£3,226.11
Unit price
per
Some items may take 3-5 days to ship.
Couldn't load pickup availability
THE SUPER RESPONSIVE CRANKSHAFT, FOR HIGH RPM! THE TRUE COMPETITION KIT!!
PRODUCT INFO
| APPLICATION | BORE | P/N | NOTES | |
|---|---|---|---|---|
| Evo I-Evo IX | φ85.5 | 221040 | ||
| φ86.0 | 221041 |
【With Conrod Bearings Bundle Pack】
| APPLICATION | BORE | P/N | NOTES | |
|---|---|---|---|---|
| Evo I-Evo IX | φ85.5 | 223022 | ||
| φ86.0 | 223023 |
* The intake side balancer shaft is removed for this application and a blocking cap is used in it's place.
* The conrod bearing option kit is supplied with the conrod bearings for the 1 engine application.
FEATURE / SPEC
SPEC
PISTON
|
Bore (Φ) |
Pin Dia (Φ) |
Length (mm) |
Recess |
Comp.Height (mm) |
PistonCrownVolume (cc) |
Weight (g) |
Pin weight (g) |
Total weight (g) |
|---|---|---|---|---|---|---|---|---|
| 85.5 | 22.0 | 60 | ○ | 31.65 | 20.5 | 327 | 113 | 440 |
| 86.0 | ○ | 20.5 | 335 | 448 |
| Top ring B×T(mm) | Second ring B×T(mm) | Oil ring B×T(mm) |
|---|---|---|
| 1.2×3.05 | 1.2×3.7 | 2.5×2.85 |
CRANKSHAFT
| Stroke (mm) | Weight (kg) | STD Stroke (mm) |
|---|---|---|
| 94.0 | 18.3 | 88.0 |
CONNECTING ROD
| Conrod | Conrod Bolt | Conrod Bearing | Material | ||||
|---|---|---|---|---|---|---|---|
|
Length (mm) |
L.Diam×Length (mm) |
S.Diam×Length (mm) |
Bolt Size |
Height Under Neck (mm) |
Inner Circum (mm) |
Bearing Width (mm) |
|
| 150.0 | φ48×26.4 | φ22×23 | 3/8-24 | 40 | 45 | 21.0 | SNCM439 |
Compression Ration Specs
| Bore | φ85.5 | φ86.0 | |
|---|---|---|---|
|
Gasket Thickness (mm) |
1.0 | 8.7 | 8.8 |
| 1.2 | 8.6 | 8.7 | |
| 1.5 | 8.4 | 8.5 | |
| 1.8 | 8.2 | 8.3 | |
| Gasket Bore | 86.5 | ||
DATA
KIT WITH BEARINGS INCLUDED
Tomei has made an option to include their Competition Bearing Series product with our kits. All the engine internals are brought to static temperature (20 degrees Celcius) and blueprinted with 0.040~0.060mm clearance bearings.This eliminates the measuring and blueprinting process for the customer, so the kit can be installed with less hassle.
