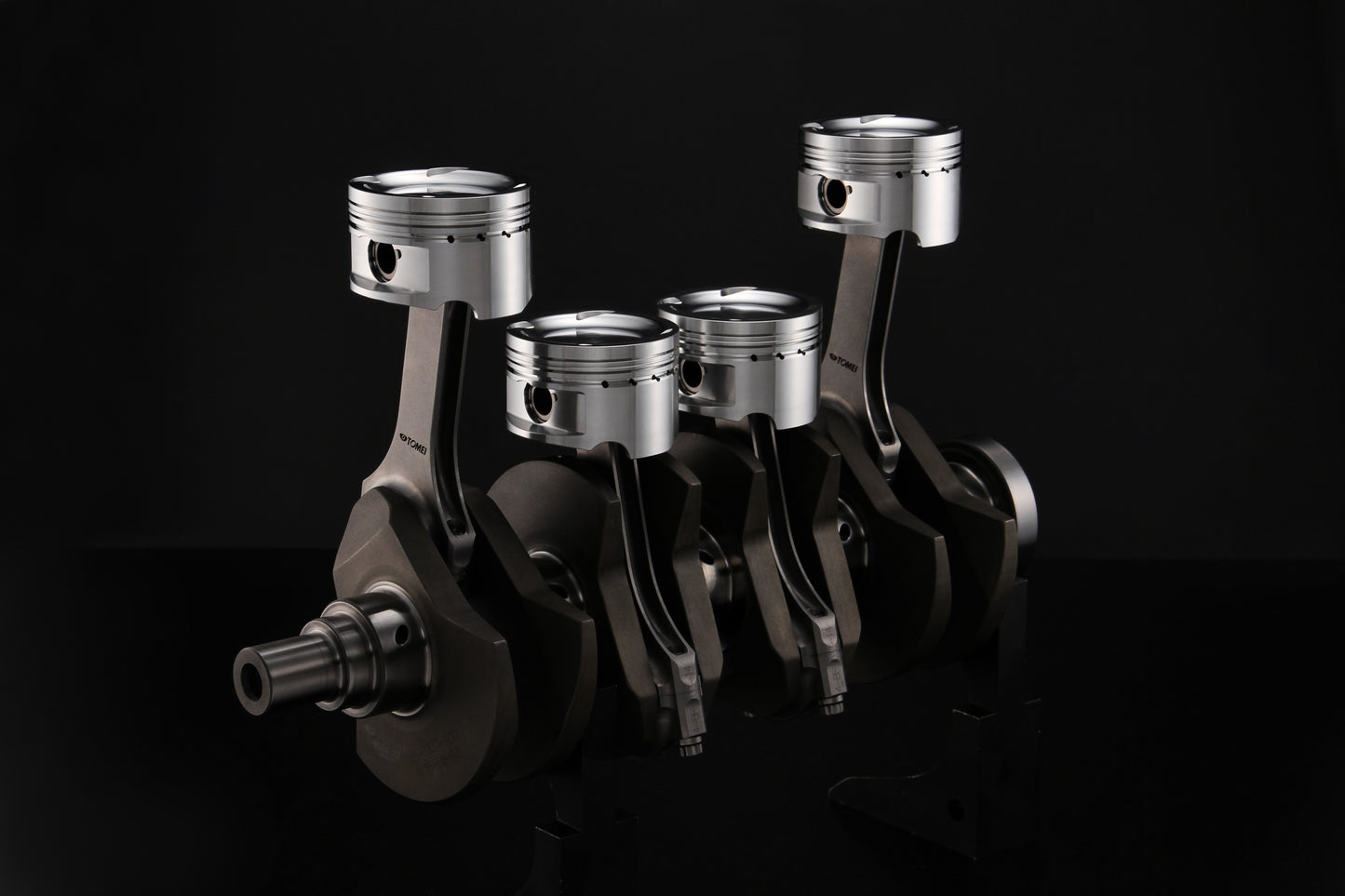

Tomei 4G63-23KIT 86.0mm
Tomei 4G63-23KIT 86.0mm
Regular price
£3,871.33
Regular price
Sale price
£3,871.33
Unit price
per
Taxes included.
Shipping calculated at checkout.
Some items may take 3-5 days to ship.
Couldn't load pickup availability
Now includes a new billet crankshaft featuring a superior balance design.
Feel the plentiful torque that a 2.3 liter engine produces over the stock displacement and dominate the competition at any given condition! Having a torque advantage creates a feeling of almightiness as well as enhanced drivability, and adds much more sporty characteristic to the vehicle. This stroker kit can be used in conjunction with a larger turbocharger if even more power is the objective.
PRODUCT INFO
| APPLICATION | BORE | P/N | NOTES | |
|---|---|---|---|---|
| Evo I-Evo IX | φ85.5 | 252002 | ||
| φ86.0 | 252003 |
【With Conrod Bearings Bundle Pack】
| APPLICATION | BORE | P/N | NOTES | |
|---|---|---|---|---|
| Evo I-Evo IX | φ85.5 | 250016 | ||
| φ86.0 | 250017 |
* The conrod bearing option kit is supplied with the conrod bearings for the 1 engine application.
FEATURE / SPEC
SPEC
PISTON
|
Bore (Φ) |
Pin Dia (Φ) |
Length (mm) |
Recess |
Comp.Height (mm) |
PistonCrownVolume (cc) |
Weight (g) |
Pin weight (g) |
Total weight (g) |
|---|---|---|---|---|---|---|---|---|
| 85.5 | 22.0 | 60 | ○ | 31.65 | 20.5 | 327 | 113 | 440 |
| 86.0 | ○ | 20.5 | 335 | 448 |
| Top ring B×T(mm) | Second ring B×T(mm) | Oil ring B×T(mm) |
|---|---|---|
| 1.2×3.05 | 1.2×3.7 | 2.5×2.85 |
CRANKSHAFT
| Stroke (mm) | Weight (kg) | STD Stroke (mm) |
|---|---|---|
| 100.0 | 18.5 | 88.0 |
CONNECTING ROD
| Conrod | Conrod Bolt | Conrod Bearing | Material | ||||
|---|---|---|---|---|---|---|---|
|
Length (mm) |
L.Diam×Length (mm) |
S.Diam×Length (mm) |
Bolt Size |
Height Under Neck (mm) |
Inner Circum (mm) |
Bearing Width (mm) |
|
| 147.0 | φ48×26.4 | φ22×23 | 3/8-24 | 40 | 45 | 21.0 | SNCM439 |
Compression Ration Specs
| Bore | φ85.5 | φ86.0 | |
|---|---|---|---|
|
Gasket Thickness (mm) |
1.0 | 9.2 | 9.3 |
| 1.2 | 9.1 | 9.2 | |
| 1.5 | 8.9 | 9.0 | |
| 1.8 | 8.7 | 8.8 | |
| Gasket Bore | 86.5 | ||
DATA
KIT WITH BEARINGS INCLUDED
Tomei has made an option to include their Competition Bearing Series product with our kits. All the engine internals are brought to static temperature (20 degrees Celcius) and blueprinted with 0.040~0.060mm clearance bearings.This eliminates the measuring and blueprinting process for the customer, so the kit can be installed with less hassle.
