TOMEI

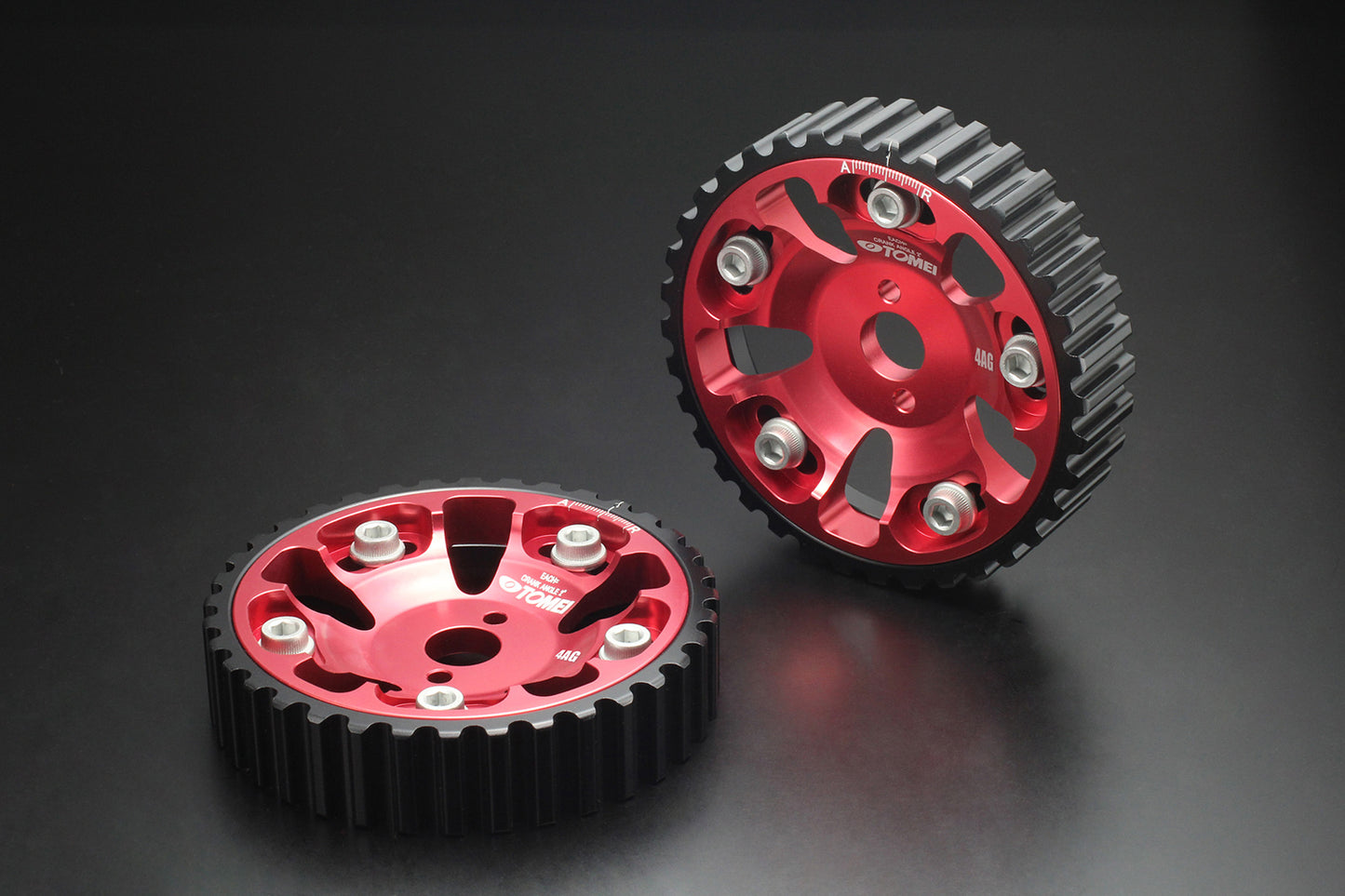

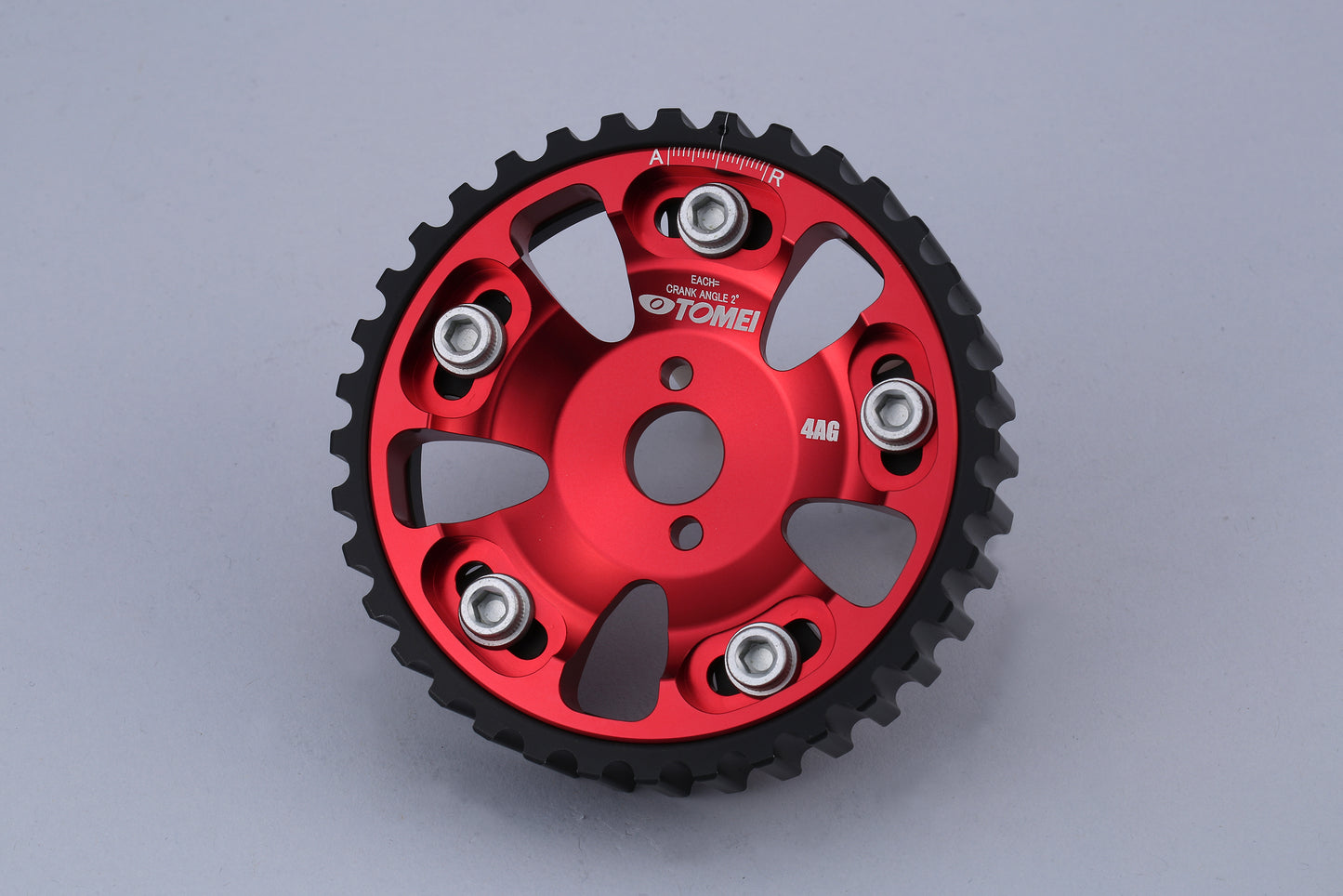

Tomei ADJUSTABLE CAM GEAR 4AG 4VALVE

Tomei ADJUSTABLE CAM GEAR 4AG 4VALVE

SKU: 152015
£138.37
£138.37
Sale Sold out
Taxes included.

Some items may take 3-5 days to ship.

PRODUCT INFO

APPLICATION IN/EX P/N NOTES
4AG Compatible 152015

FEATURE / SPEC

TYPE MATERIAL WEIGHT
PULLEY GEAR
ADJUSTABLE ANODIZED ALUMINUM ANODIZED ALUMINUM 250g

■ Super Lightweight Duralumin
Duralumin was used for both the outer gear and the inner pulley section; we were able to significantly drop the weight whilst increasing durability.

■ SUPERIOR ACCURACY
Both the pulley and the inner plate have been milled to perfection. This ensures itʼs functionality for timing accuracy and maximum durability.

■ SUPERIOR DURABILITY
The hard anodizing surface treatment of the pulley increases the products surface durability substantially. This also decreases the wear rate on the gears teeth contact areas.

■ UNIQUE DESIGN THAT STANDS OUT
Every bit of the pure Duralumin was processed with the deep anodized colour.
With the functional design.

■ USER FRIENDLY ADJUSTABLE SCALE
Great consideration was taken in making a simple and easy to follow adjustable scale for anyone to understand.
TIPS

SLIDING ADJUSTER

The simple graph makes it easy to change the engines characteristics with the simple sliding adjustments of the Cam Gear. If the intake valve timing is advanced (i.e. 120° to 110°) then performance gains are achieved at low RPM. If the intake valve timing is retarded (i.e. 110° to 120°) then performance gains are achieved at high RPM. Camshafts with no dowel pin attached will require you to check the timing adjustments with a dial gauge and scale board.

EASY VALVE TIMING ADJUSTMENTS WITH PONCAM

The Poncams valve timing has been preset at 110°. This Valve Timing has been calculated as the best setting for both performance and drivability. You can adjust the engines performance by making adjustments with the cam Gear carefully. This easy adjustable system is a great advantage over other conventional designs.
