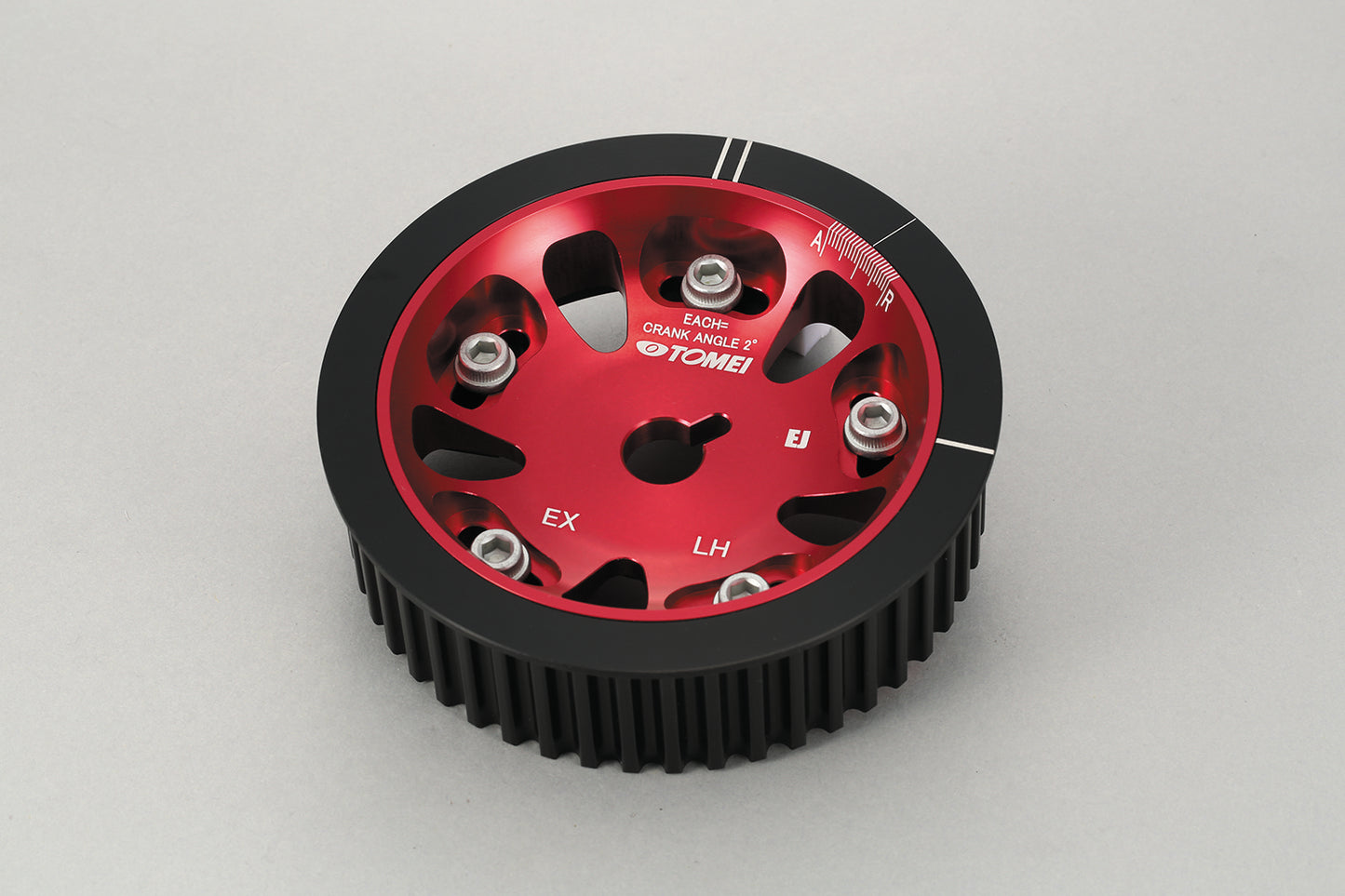

Tomei ADJUSTABLE CAM GEAR for EJ SINGLE AVCS EX LH

Tomei ADJUSTABLE CAM GEAR for EJ SINGLE AVCS EX LH

SKU: 152018
Regular price £194.34
Regular price Sale price £194.34
Sale Sold out
Taxes included. Shipping calculated at checkout.

Some items may take 3-5 days to ship.

PRODUCT INFO

APPLICATION TYPE P/N NOTES

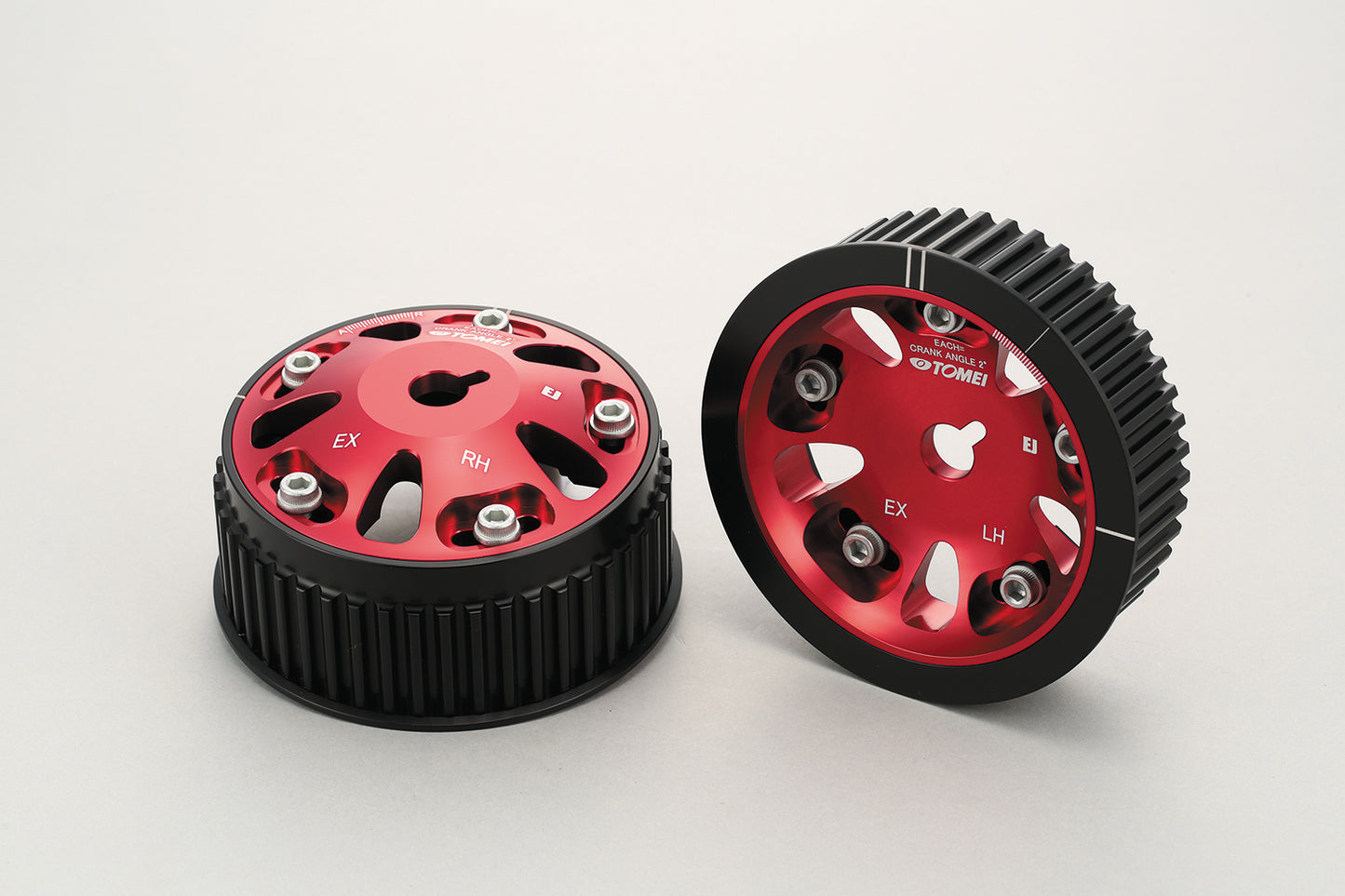

EJ20,25 Single AVCS EX RH 152017
EX LH 152018

FEATURE / SPEC

TYPE MATERIAL WEIGHT
PULLEY GEAR
ADJUSTABLE EX RH ANODIZED ALUMINUM ANODIZED ALUMINUM 520g
EX LH 485g

■ DURALUMIN IS USED.
Duralumin was used for both the outer gear and the inner pulley section.

■ SUPERIOR ACCURACY&DURABILITY
Both the pulley and the inner plate have been milled to perfection.
Precisely made of billet anodized aluminum with a layer of hardening process on the outer gear for maximum gear resistance and at the same time for the best friction between the timing belt that helps maintaining a precise engine timing.

■ UPGRADES THE APPEARANCE AND FUNCTIONALITY
Redesigned for maximum ease of reading and adjusting.
Curved design of the gear center increases not just the appearance but the rigidity and reduces the weight at the same time.


■ DON’T lET THE FACTOTY GEARS DESTROY THE ENTIRE ENGINE
The factory gears that are made of plastic can deteriorate over time and eventually break apart during engine operation that leads to destroy the entire engine especially on a tuned engine.
Replacing them with trust worthy alternatives prevents this nightmare.
TIPS

SLIDING ADJUSTER

The simple graph makes it easy to change the engines characteristics with the simple sliding adjustments of the Cam Gear. If the intake valve timing is advanced (i.e. 120° to 110°) then performance gains are achieved at low RPM. If the intake valve timing is retarded (i.e. 110° to 120°) then performance gains are achieved at high RPM. Camshafts with no dowel pin attached will require you to check the timing adjustments with a dial gauge and scale board.

EASY VALVE TIMING ADJUSTMENTS WITH PONCAM

The Poncams valve timing has been preset at 110°. This Valve Timing has been calculated as the best setting for both performance and drivability. You can adjust the engines performance by making adjustments with the cam Gear carefully. This easy adjustable system is a great advantage over other conventional designs.
