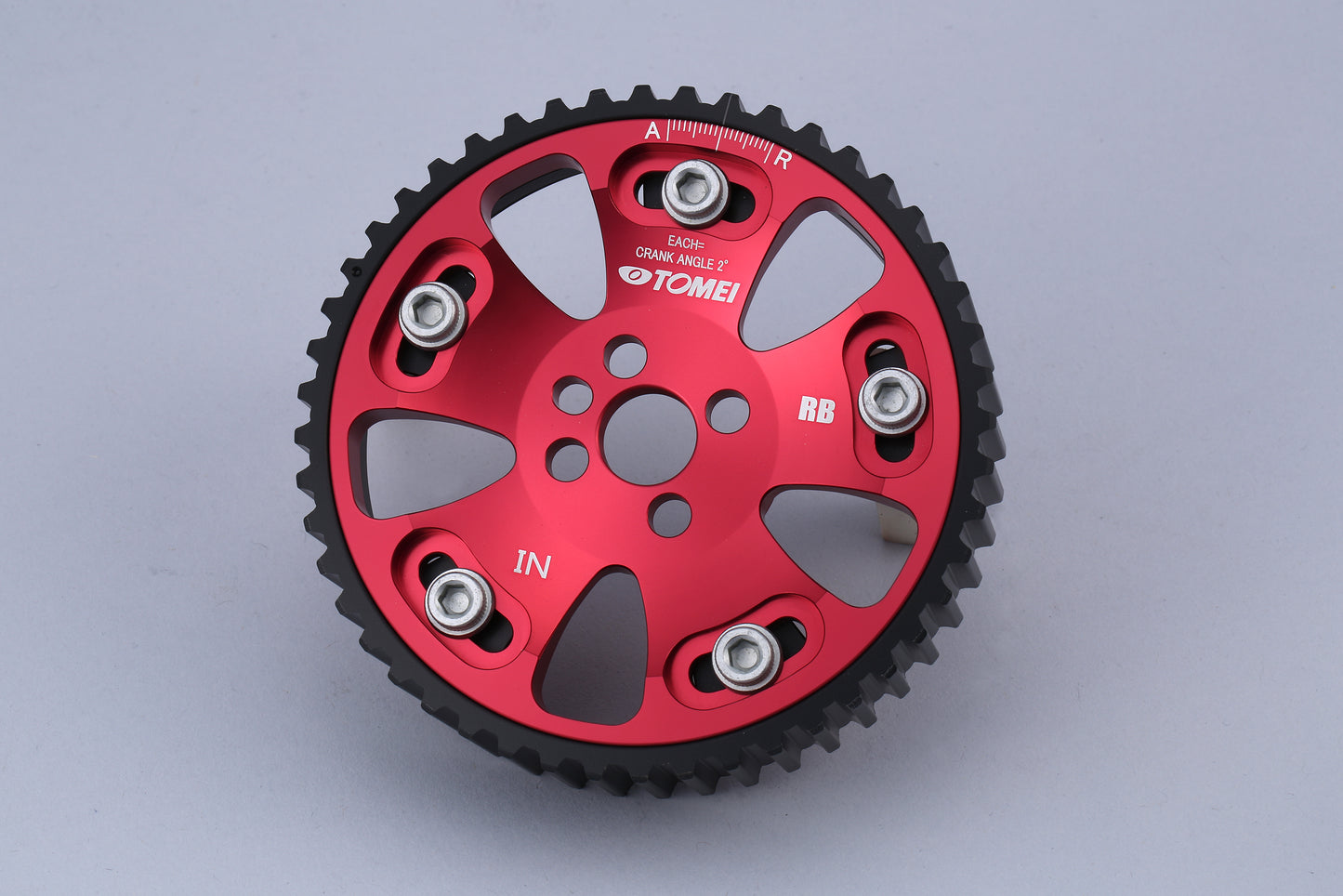

Tomei ADJUSTABLE CAM GEAR RB26DETT/RB25DE(T)/RB20DE(T) IN

Tomei ADJUSTABLE CAM GEAR RB26DETT/RB25DE(T)/RB20DE(T) IN

SKU: 152009
£130.60
£130.60
Sale Sold out
Taxes included. Shipping calculated at checkout.

Some items may take 3-5 days to ship.

PRODUCT INFO

APPLICATION IN/EX P/N NOTES
RB26DETT
RB25DE(T)
RB20DE(T)		 IN 152009
EX 152010

FEATURE / SPEC

TYPE MATERIAL WEIGHT
PULLEY GEAR
ADJUSTABLE ANODIZED ALUMINUM ANODIZED ALUMINUM 340g

■ Super Lightweight Duralumin
The Duralumin alloy was chosen for it’s super light weight properties. So our product is made from 100% Duralumin.

■ SUPERIOR ACCURACY
Both the pulley and the gear sections were manufactured from special precision methods.
This helps secure the set position from the transmission drive to the timing belt.

■ SUPERIOR DURABILITY
Highly durable in contact areas with the timing belt has been greatly enhanced by giving the industry’s first product to have deep anodized colouring applied to the surface of the pulley.
It is suited for Drag Racing Cars that are well over 1000 HP and rev well past the 10,000 RPM mark. There are also no signs of the colour coming off.

■ UNIQUE DESIGN THAT STANDS OUT
Every bit of the pure Duralumin was processed with the deep anodized colour.
With the functional design.

■ USER FRIENDLY ADJUSTABLE SCALE
Great consideration was taken in making a simple and easy to follow adjustable scale for anyone to understand.
TIPS

SLIDING ADJUSTER

The simple graph makes it easy to change the engines characteristics with the simple sliding adjustments of the Cam Gear. If the intake valve timing is advanced (i.e. 120° to 110°) then performance gains are achieved at low RPM. If the intake valve timing is retarded (i.e. 110° to 120°) then performance gains are achieved at high RPM. Camshafts with no dowel pin attached will require you to check the timing adjustments with a dial gauge and scale board.

EASY VALVE TIMING ADJUSTMENTS WITH PONCAM

The Poncams valve timing has been preset at 110°. This Valve Timing has been calculated as the best setting for both performance and drivability. You can adjust the engines performance by making adjustments with the cam Gear carefully. This easy adjustable system is a great advantage over other conventional designs.
