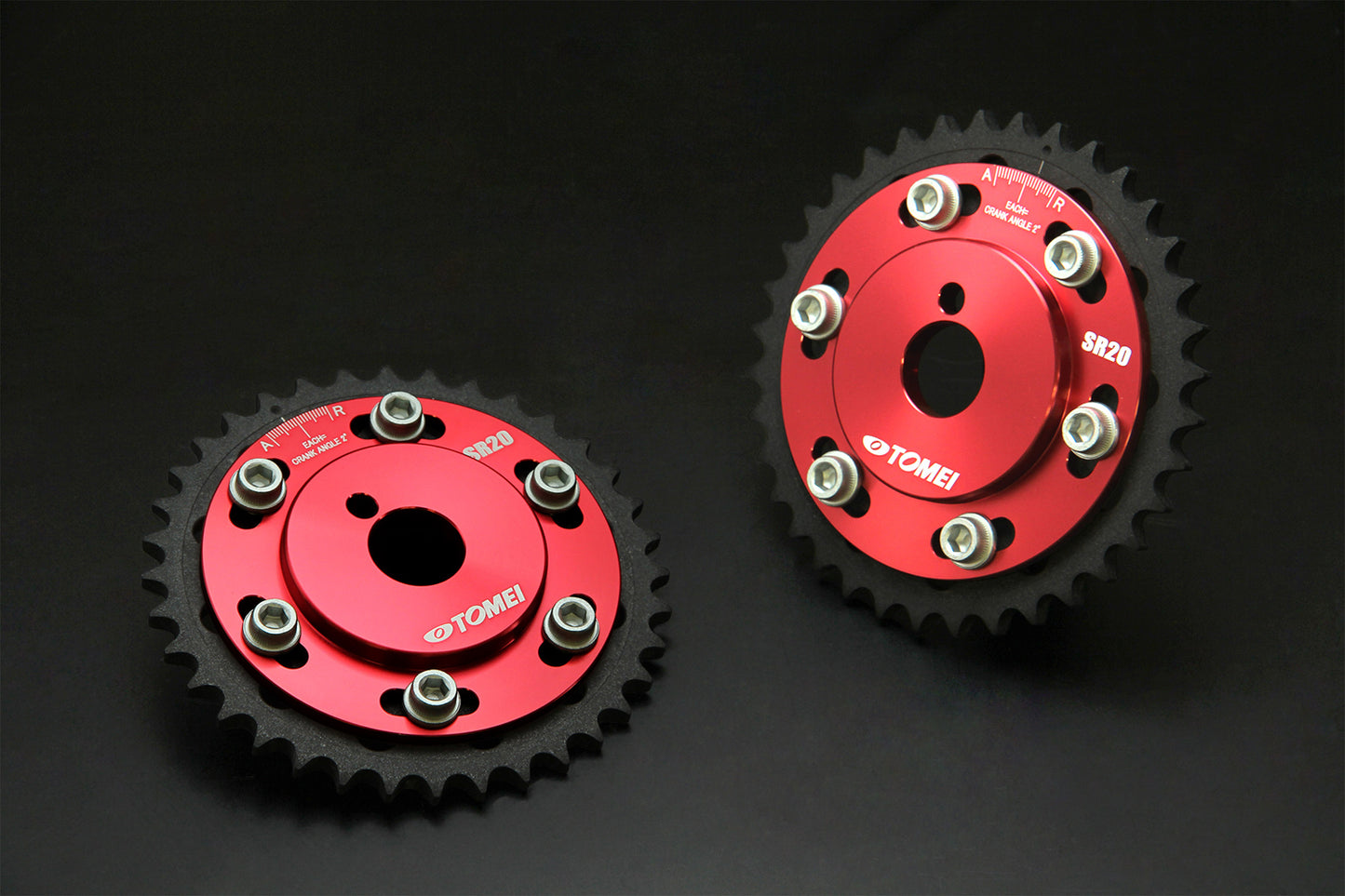

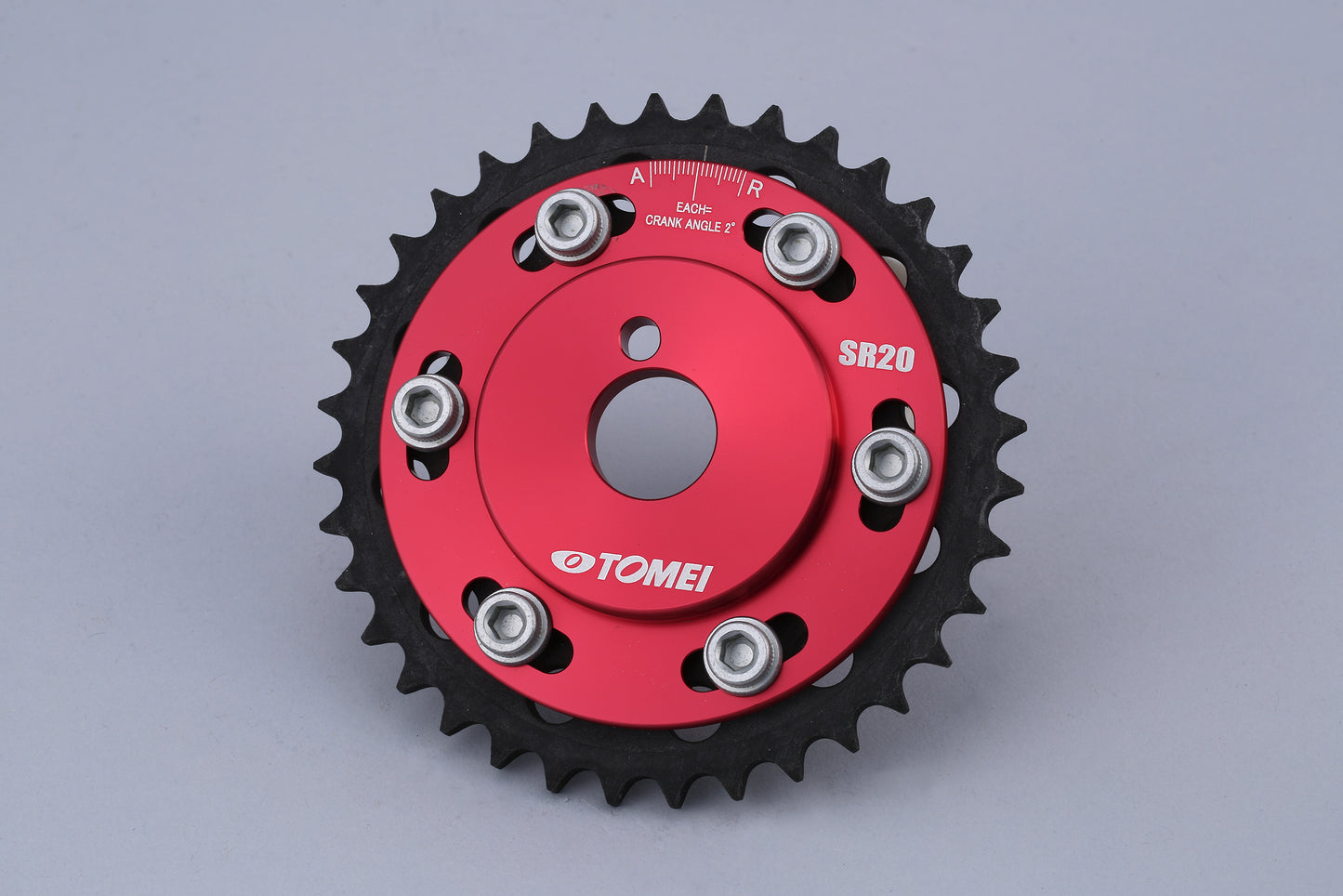

Tomei ADJUSTABLE CAM GEAR SR20DE(T)

Tomei ADJUSTABLE CAM GEAR SR20DE(T)

SKU: 13024R310
£115.05
£115.05
Sale Sold out
Taxes included. Shipping calculated at checkout.

Some items may take 3-5 days to ship.

PRODUCT INFO

APPLICATION IN/EX P/N NOTES
SR20DE(T) Common 13024R310 Need to use with the standard drive gear when fitted on Exhaust side.

FEATURE / SPEC

TYPE MATERIAL WEIGHT
PULLEY GEAR
ADJUSTABLE ANODIZED ALUMINUM STEEL 330g

■ Super Light Duralumin
The super light weight Duralumin material was selected for the inner part as well. This resulted with the ultra light weight product.

■ Superior in accuracy
The inner section is made from a single piece billet.This gives the product precision for superior accuracy, which secure the timing chain.

■ Simple Scales for Adjustments
A simple scale was designed to help aid tuners anywhere are able to setup the settings on the scale to aid with easy setup process.

■ Increased Durability
The Lubrite coating on the gear assists in holding the timing chain better & increasing the durability.

■ Visual Impact
The Duralumin center part was given our typical anodized treatment, for its visual impact.
TIPS

SLIDING ADJUSTER

The simple graph makes it easy to change the engines characteristics with the simple sliding adjustments of the Cam Gear. If the intake valve timing is advanced (i.e. 120° to 110°) then performance gains are achieved at low RPM. If the intake valve timing is retarded (i.e. 110° to 120°) then performance gains are achieved at high RPM. Camshafts with no dowel pin attached will require you to check the timing adjustments with a dial gauge and scale board.

EASY VALVE TIMING ADJUSTMENTS WITH PONCAM

The Poncams valve timing has been preset at 110°. This Valve Timing has been calculated as the best setting for both performance and drivability. You can adjust the engines performance by making adjustments with the cam Gear carefully. This easy adjustable system is a great advantage over other conventional designs.
