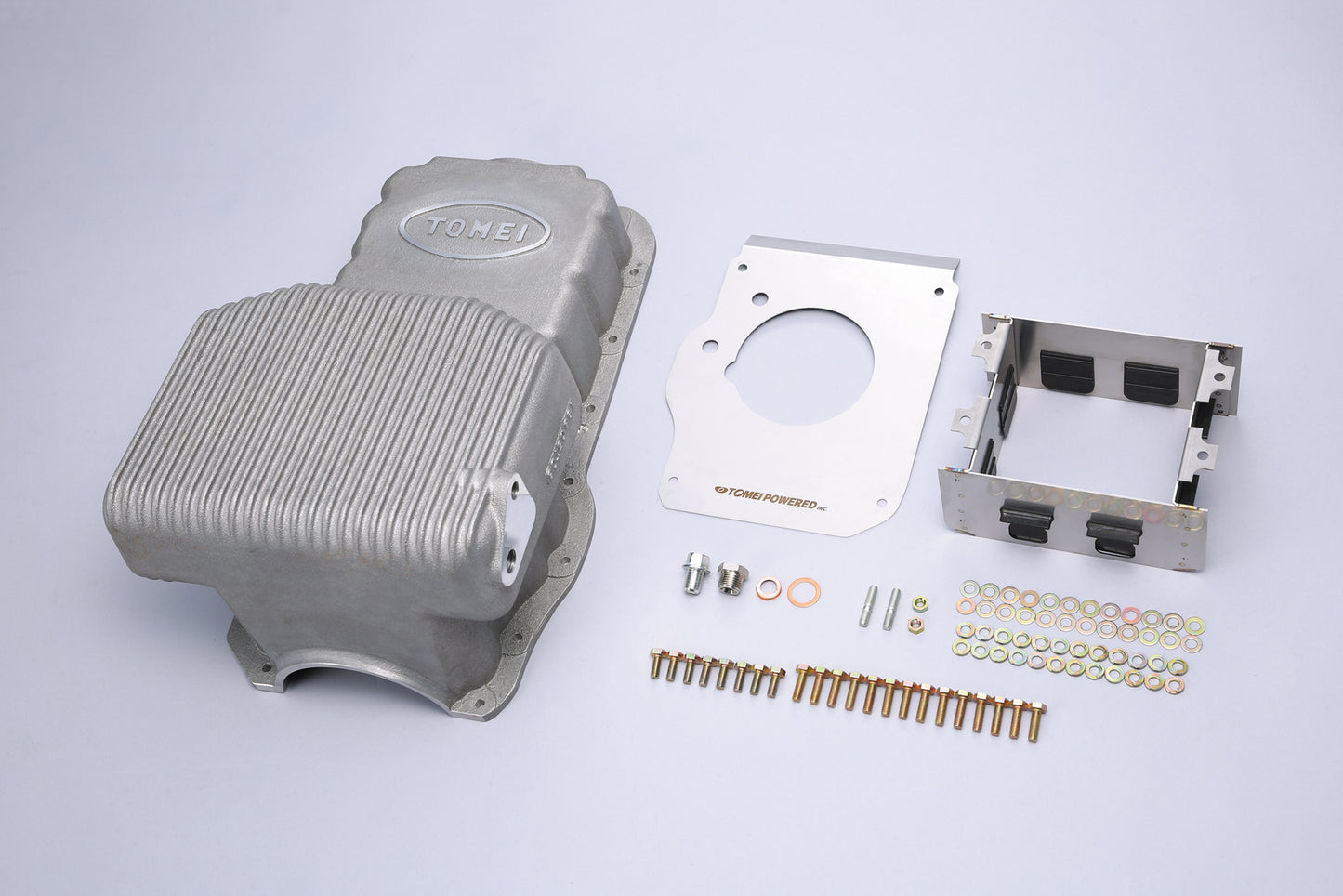

Tomei ALUMINUM OIL PAN NISSAN A SERIES

Tomei ALUMINUM OIL PAN NISSAN A SERIES

SKU: 194006
£1,399.28
£1,399.28
Sale Sold out
Tax included.

Some items may take 3-5 days to ship.

Keeps the oil temp low which helps reducing oil cavitation and increasing overall engine performance by the cooling fins and increased oil capacity.
The aluminum structure that is made by sand-cast process, as well as heat treated finish together bring the engine stiffness and durability a whole lot different level.

PRODUCT INFO

APPLICATION P/N NOTES
A12/A13/A14 194006 ・RWD applications with A type engines.
・Compatible with A12 (70mm stroke)
・A14 requires to replace the conrod bolts etc.

FEATURE / SPEC

It’s finally back with an improved design!



Based on the design that was proven back in 70’s in the legendary TS Race Series, it’s finally back on the market with a revised and improved design that is equipped with sensor boss, as well as a built-in oil baffle for an even better oil lubrication all the time.

■ Based on the legendary original design

Well proven cooling fins from back in 70’s.The original 70’s style logo.
Designed to increase as much oil capacity as possible, while as well not sacrificing the ground clearance as much as possible.

■ Improved design

comes with an M16-P1.5 sensor boss for an aftermarket oil temp sensor to monitor and keep the engine condition.
Oil drain plug has been relocated to the side and upgraded to M12-P1.5 size.
Newly designed and well tested oil baffle keeps oil at the pick up all the time.
The baffle with the built in flap-style valves supports and protects your tuned Nissan-A motor.
SPEC
BAFFLE OIL PAN
MATERIAL SUS304 SAND-CASTED ALUMINUM
UPPER BAFFLE THICKNESS 1.0mm –
LOWER BAFFLE THICKNESS 1.2mm –
WEIGHT UPPER : 250g
LOWER : 460g (Including rubber valve) 		3.4Kg
(STD: PRESSED STEEL 2.5kg)
OIL CAPACITY
※Amount in the oil pan		 800cc UP(STD:2.7L)
The factory oil pan gasket (P/N: 11132-H5025) is also required for installation.
