Bolt-on, perfect balanced turbo for RB25!
The boost build up is neither sluggish nor abrupt; we have designed this to be natural and smooth.This characteristic provides a stress free driving experience with easy vehicle operation.
Peripheral parts such as Poncam, Cam Gear, Head Gasket, Forged Piston, Down Pipe etc… These parts make synergistic effect when combined with the ARMS Turbo.

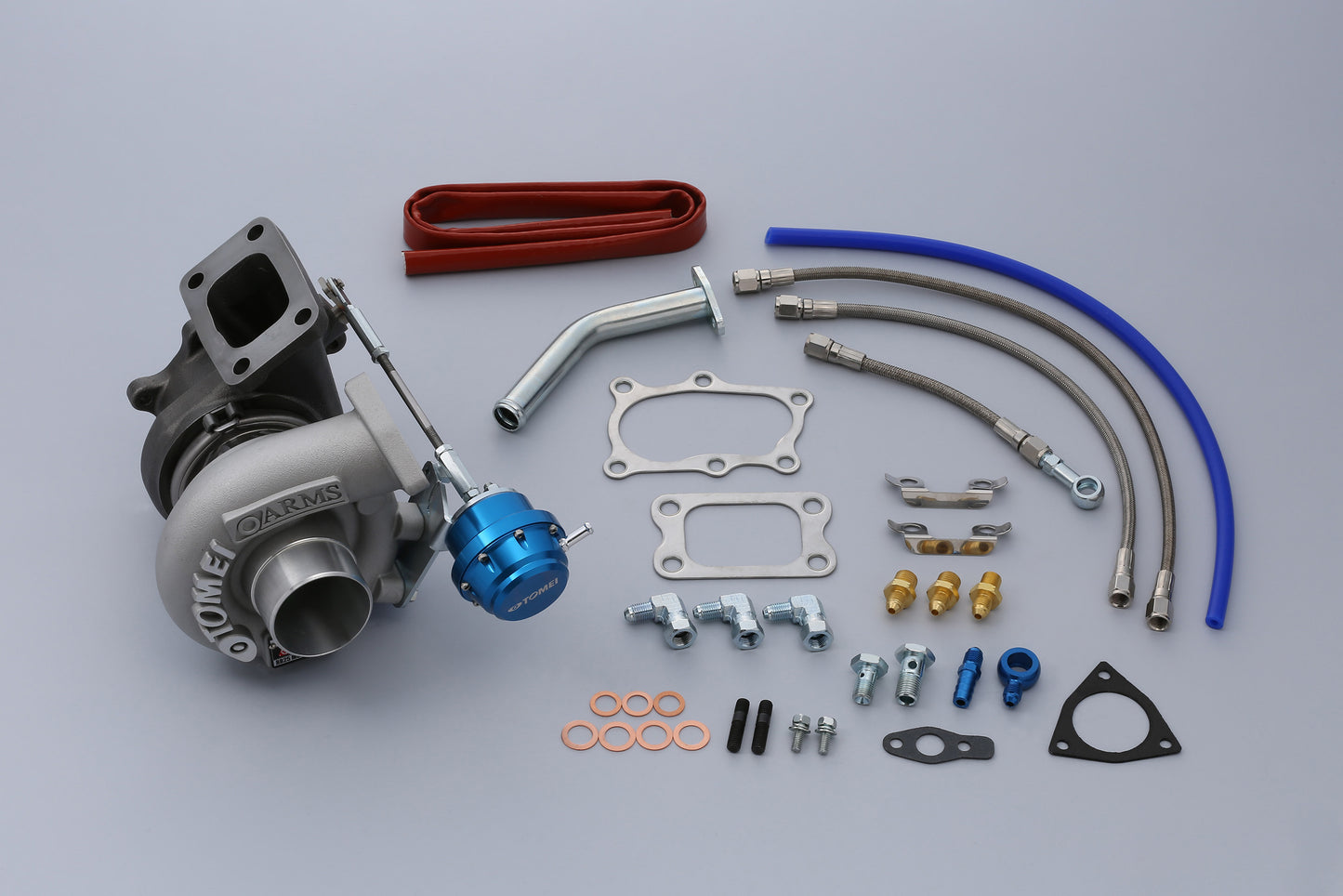

The ARMS series turbo kits all come supplied with all the required gaskets and fitting accessories for a true bolt on application out of the box. So it can be installed immediately without the need to hunt for other parts.
A Floating Bearing (Journal Bearing) was adopted for use on the shaft.
COMPRESSOR WHEEL DATA
TURBINE WHEEL DATA
MAINTAINING POWER AT HIGHER TUNING
With the stock displacement, you can expect to see good power from 6000rpm and higher. But with the increase in the engines displacement, even more potential gains are possible.
ARMS M8265 guarantees amazing performance for all RB25DET no matter drift competition or street daily driver!
PRODUCT INFO
| APPLICATION | TYPE | P/N | NOTES | |
|---|---|---|---|---|
| R33/R34 C34/C35/WC34 RB25DET |
M8265 | 173029 |
FEATURE / SPEC
Flat Primary Exhaust Pressure
The boost build up is neither sluggish nor abrupt; we have designed this to be natural and smooth.This characteristic provides a stress free driving experience with easy vehicle operation.
Unleash the true performance of ARMS M8265
Peripheral parts such as Poncam, Cam Gear, Head Gasket, Forged Piston, Down Pipe etc… These parts make synergistic effect when combined with the ARMS Turbo.
100% BOLT ON
The ARMS series turbo kits all come supplied with all the required gaskets and fitting accessories for a true bolt on application out of the box. So it can be installed immediately without the need to hunt for other parts.
FLOATING METAL
A Floating Bearing (Journal Bearing) was adopted for use on the shaft.
1 YEAR WARRANTY
 |
The ARMS RB25 M8265 Turbine Kits come with a 1 year limited warranty after the product has been registered with Tomei Powered shortly after purchase. |
SPEC
| TYPE | TRIM | INNER DIA. | OUTER DIA. | BLADES | |
|---|---|---|---|---|---|
| RB25DET STD | – | 53 | 48.5 | 66.5 | 6/6 |
| ARMS M8260 | 65 | 52 | 54.8 | 76.2 | 6/6 |
| TYPE | TRIM | OUTER DIA. | EXIT DIA. | BLADES | |
|---|---|---|---|---|---|
| RB25DET STD | – | 70 | 43.0 | 51.5 | 9 |
| ARMS M8260 | 82 | 77 | 58.8 | 67.0 | 11 |
DATA
