TOMEI

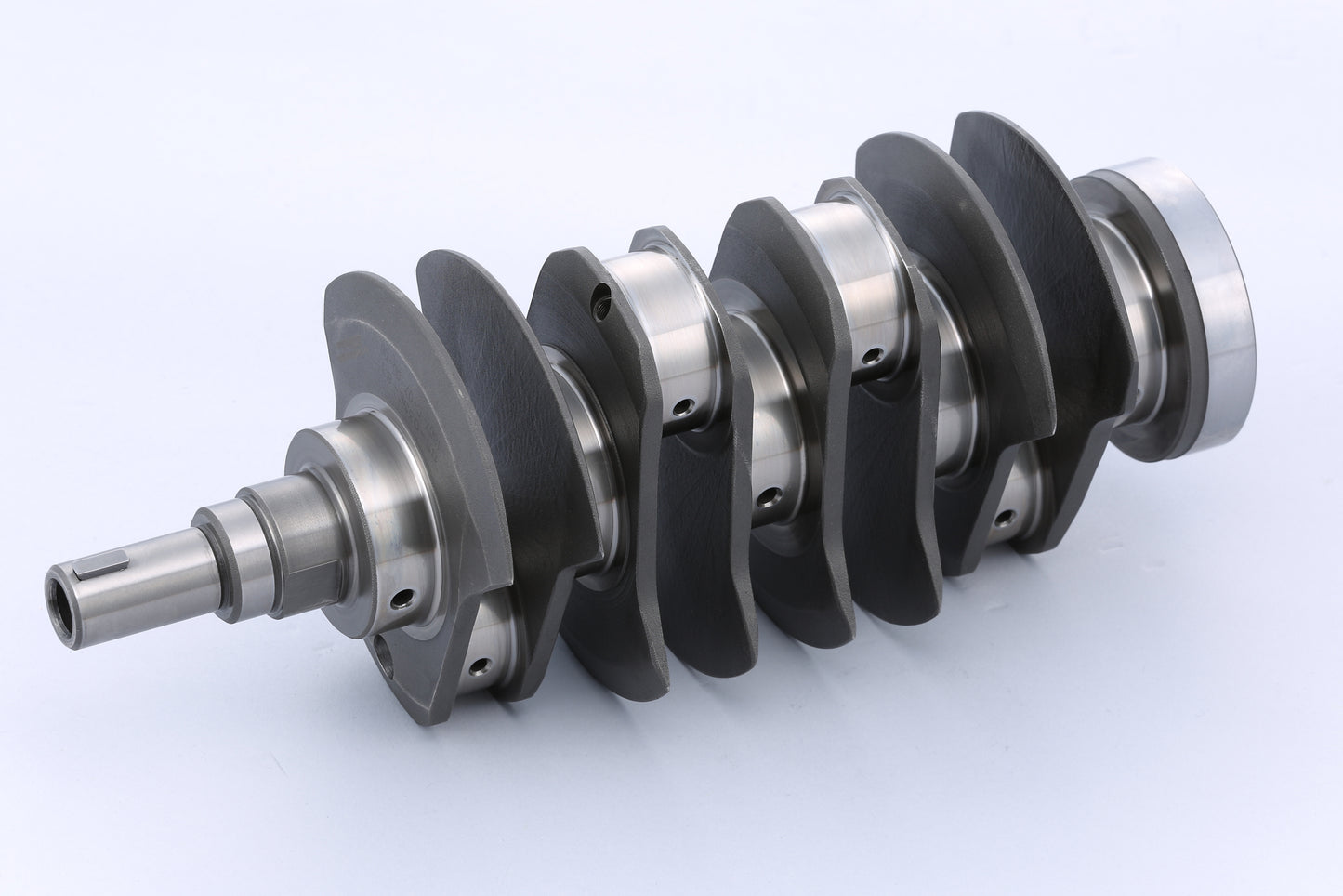

Tomei BILLET FULL COUNTERED CRANK EJ26
Tomei BILLET FULL COUNTERED CRANK EJ26
Regular price
£2,332.13
Regular price
Sale price
£2,332.13
Unit price
/
per
Some items may take 3-5 days to ship.
PRODUCT INFO
APPLICATION | P/N | NOTE | |
---|---|---|---|
EJ26 | 121045 | Special Conrods & Special Pistons are required |
FEATURE / SPEC
TOMEI | STD | |
---|---|---|
STROKE | 83.0mm | 79.0mm |
WEIGHT | 9.2kg | 9.4kg |
Full-counter weighted
By preparing counter weight on every cylinder, making inertia power balance so that bent of the crankshaft is suppressed and vibration and friction is reduced, while the reliability of bearing is raised.
Edge shape designed with hydrodynamics
At high RPM, counterweight rotates at more than 200km/h inside the crankcase through the oil and air.
We designed the edge shape of the counterweight hydro-dynamically sharp so that less resistance will occur even at high rotation.
※1 : If the radius of crank counter weight is 65mm, its circumference is 408mm = 0.4meter. When the engine is running at 8500RPM, crank rotates 141.7 turns per second which is translated in 56.7m/s = 204.1km/h of peripheral speed.
