TOMEI

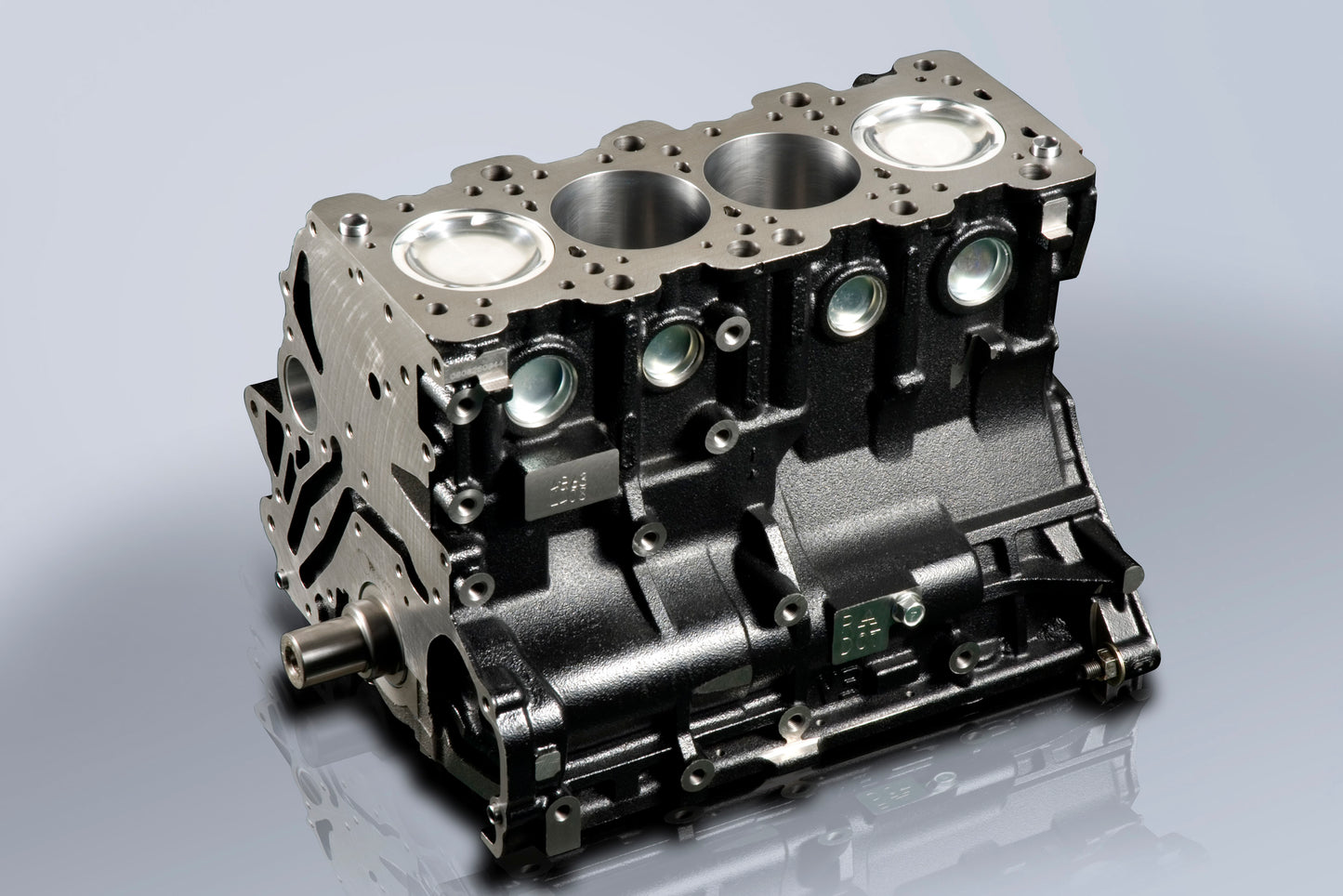

Tomei COMPLETE BLOCK CPB-4G23-E8 for EVO8

Tomei COMPLETE BLOCK CPB-4G23-E8 for EVO8

SKU: 213221
Regular price £8,719.00
Regular price Sale price £8,719.00
Sale Sold out
Tax included.

Some items may take 3-5 days to ship.

Pistons, crank and connecting rods are pre-assembled for the best tuning block.

PRODUCT INFO

APPLICATION TYPE PART P/N NOTES
Evo.8
Evo.9
4G63-22 Evo.8 CPB-4G22-E8 213211
Evo.9 CPB-4G22-E9 213311
4G63-23 Evo.8 CPB-4G23-E8 213221
Evo.9 CPB-4G23-E9 213321

FEATURE / SPEC

TYPE CPB-4G22-E8 CPB-4G22-E9 CPB-4G23-E8 CPB-4G23-E9
P/N 213211 213311 213221 213321
BASE ENGINE
4G63
BORE*STROKE Φ85.5×94.0㎜ Φ85.5×100.0㎜
DISPLACEMENT 2158cc 2295cc
PISTON TOMEI FORGED PISTON Φ85.5
CONNECTING ROD TOMEI FORGED H-BEAM 150.0mm TOMEI FORGED H-BEAM 147.0mm
CRANKSHAFT TOMEI BILLET FULL COUNTERED 94.0mm TOMEI BILLET FULL COUNTERED 100.0mm
MAIN BEARING
TOMEI COMPETITION
CONROD BEARING
TOMEI COMPETITION
MAIN BOLTS
TOMEI STUDS TYPE
CYLINDER BLOCK
STD



4G63-22
The 2.2’s unique torque and extension in the high RPM range.
This is the perfect model for those who prefer a feeling closer to that of a 2L.
4G63-23
The overwhelming torque from the low speed range produced by the 100mm stroke is both sporty and easy to ride.
View full details
