TOMEI
Tomei COMPLETE BLOCK CPB-4G23-E9 for EVO9
Tomei COMPLETE BLOCK CPB-4G23-E9 for EVO9
Regular price
£8,719.00
Regular price
Sale price
£8,719.00
Unit price
/
per
Some items may take 3-5 days to ship.

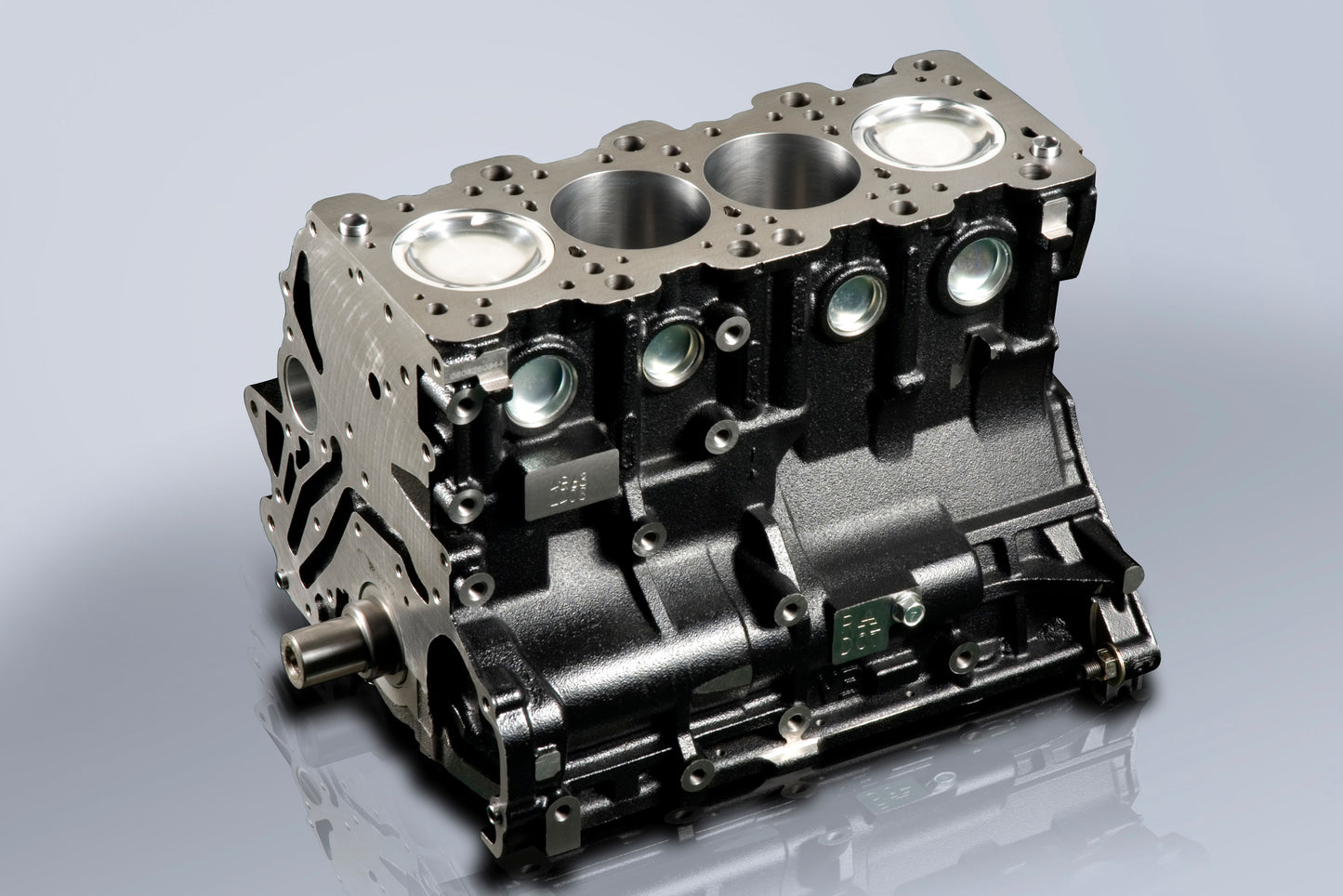

Pistons, crank and connecting rods are pre-assembled for the best tuning block.
PRODUCT INFO
APPLICATION | TYPE | PART | P/N | NOTES | ||
---|---|---|---|---|---|---|
Evo.8 Evo.9 |
4G63-22 | Evo.8 | CPB-4G22-E8 | 213211 | ||
Evo.9 | CPB-4G22-E9 | 213311 | ||||
4G63-23 | Evo.8 | CPB-4G23-E8 | 213221 | |||
Evo.9 | CPB-4G23-E9 | 213321 |
FEATURE / SPEC
TYPE | CPB-4G22-E8 | CPB-4G22-E9 | CPB-4G23-E8 | CPB-4G23-E9 |
---|---|---|---|---|
P/N | 213211 | 213311 | 213221 | 213321 |
BASE ENGINE | ||||
BORE*STROKE | Φ85.5×94.0㎜ | Φ85.5×100.0㎜ | ||
DISPLACEMENT | 2158cc | 2295cc | ||
PISTON | TOMEI FORGED PISTON Φ85.5 | |||
CONNECTING ROD | TOMEI FORGED H-BEAM 150.0mm | TOMEI FORGED H-BEAM 147.0mm | ||
CRANKSHAFT | TOMEI BILLET FULL COUNTERED 94.0mm | TOMEI BILLET FULL COUNTERED 100.0mm | ||
MAIN BEARING | ||||
CONROD BEARING | ||||
MAIN BOLTS | ||||
CYLINDER BLOCK |
4G63-22 The 2.2’s unique torque and extension in the high RPM range. This is the perfect model for those who prefer a feeling closer to that of a 2L. |
4G63-23 The overwhelming torque from the low speed range produced by the 100mm stroke is both sporty and easy to ride. |
