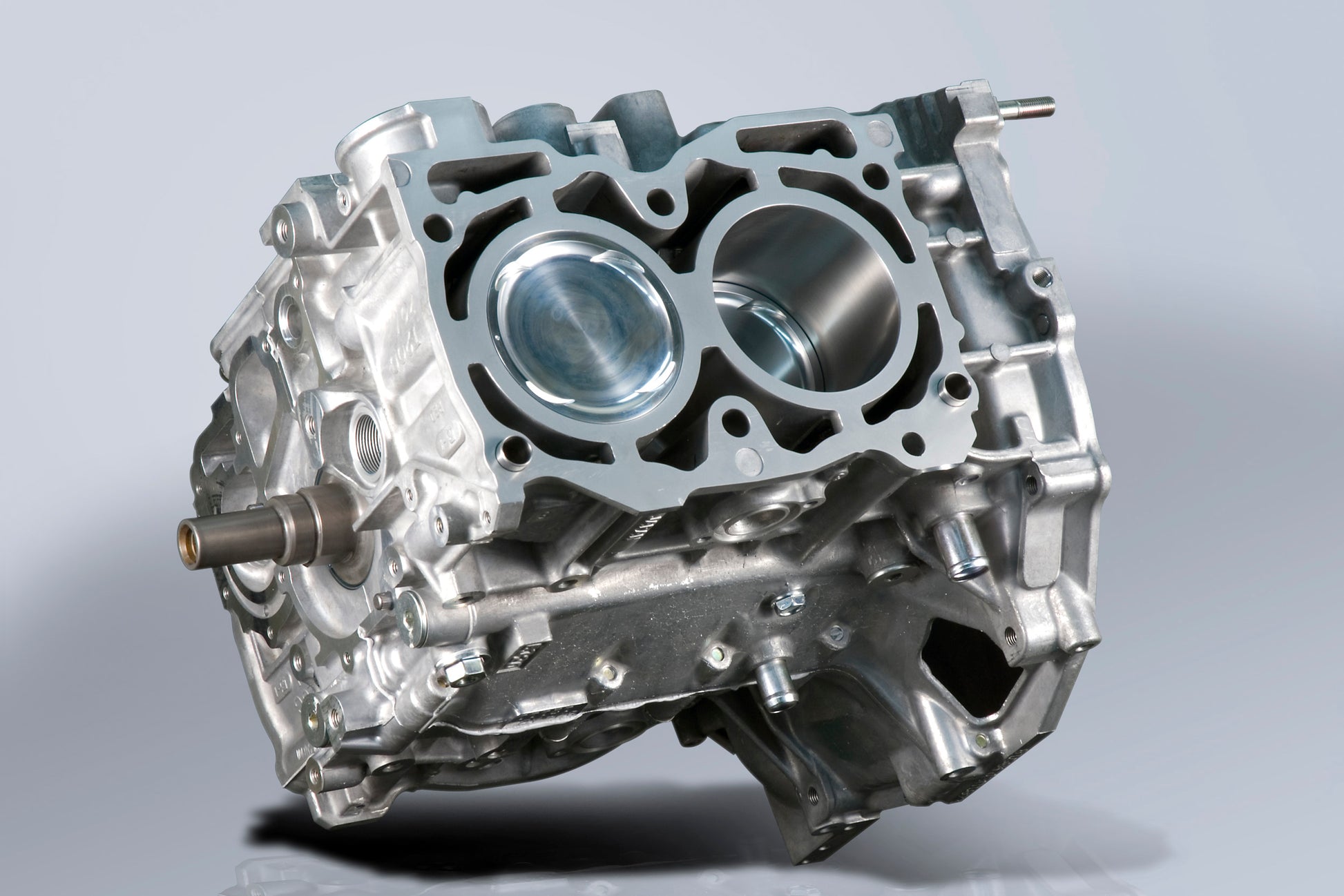

Tomei Complete Engine Block EJ20 For GRB/GVB/VAB/GDB C-G EJ207/20Y

Tomei Complete Engine Block EJ20 For GRB/GVB/VAB/GDB C-G EJ207/20Y

SKU: 215012
£6,849.00
£6,849.00
Sale Sold out
Taxes included. Shipping calculated at checkout.

Some items may take 3-5 days to ship.

Pistons, crank and connecting rods are pre-assembled for the best tuning block.

PRODUCT INFO

APPLICATION TYPE PART P/N
NOTES
EJ207/20Y EJ20 GRB/GVB/VAB/GDB C-G CPB-EJ20-D 215012 Dual AVCS specific block
EJ22 CPB-EJ22-D 214311
EJ255/257 EJ26 CPB-EJ26 215011

FEATURE / SPEC

TYPE CPB-EJ20-D CPB-EJ22-D CPB-EJ26
P/N 215012 214311 215011
BASE ENGINE
EJ20Y
 EJ257
BORE*STROKE Φ92.5×75.0㎜ Φ92.5×79.0㎜ Φ99.75×83.0㎜
DISPLACEMENT 2015cc 2123cc 2593cc
PISTON
TOMEI FORGED PISTON Φ92.5
 TOMEI FORGED PISTON Φ99.75
CONNECTING ROD
TOMEI FORGED H-BEAM 130.5mm
 TOMEI FORGED H-BEAM 128.5mm
CRANKSHAFT STD TOMEI BILLET 79.0mm TOMEI BILLET FULL COUNTERED 83.0mm
MAIN BEARING
TOMEI COMPETITION
CONROD BEARING
TOMEI COMPETITION
MAIN BOLTS
TOMEI REINFORCED TYPE
CYLINDER BLOCK STD STD STD



EJ20
A high performance tuning base that also serves as an alternative for refreshing a tired engine.
The reliable build covers a wide range of performance requirements. 		EJ22
This is the best unit that makes the most of the EJ20 block and surpasses the 2L in all aspects of torque, power and feeling. 		EJ26
This is the definitive EJ25 tuning kit that uses a minimum bore size and a stroker kit that pursues the design of each part to ensure the strength of the engine and improve the total balance.




BUILD PROCESS

1:DECK HEIGHT & SURFACE CORRECTION


When the blocks surface is deformed which at times happens even with new blocks from factory it will need to be corrected.The surface is then milled and corrected within 0.1mm accuracy.
With the horizontal face corrected with a perfectly flat surface the meting face is improved which also improves sealing characteristics for maintaining the right combustion gas pressure.

2:DUMMY HEAD INSTALLATION


Boring the block with the dummy head attached greatly enhances the machining results so that during the boring process the block is not deformed more than 0.01mm.
This is another key factor in achieving the highest precision possible with each engine build.
The block is assembled with a dummy head ( of the same height as the stock head ), head gasket and crank caps to replicate the same condition as an assembled engine.

2:CYLINDER BORING


Boring with the dummy head helps improve the precision of each of the cylinder dimension with minimal distortion.
The results of boring the block rith the dummy head attached are the best results for precision.

4:PLATEAU HONING


the small grooves made by the general honing is processed called the “cross hatch”style on the cylinder walls helps with holding oil on the cylinder wall surface for the best lubricarion results for the pistons.
The general rough surface finish of the cylinder walls will usually cause unwanted friction.
The Plateau honing with the Cross Hatch layout will help smooth the surface more whilist still holding oil in the walls and greatly reducing fiction which greatly enhances the engines life and durability.

5:PISTON TO CYLINDER WALL CLEARANCE INSPECTION


The block is then left in the climate controlled room for a minimum of 24 hours to maintain a stable temperature at 20℃,this is the best temperature for checking and verifying piston clearance with tolerances kept within an acceptable range of ±5μ.

6:BLOCK BURR CHECK AND CLEANUP


To maintain precision and the cylinder block is checked for any signs of imperfection from any unwanted burr and or debris that was caused during casting at the OEM manufacturer.
This assures no unwanted matter will cause any harm during assembly and more importantly keeping the oil and waterlines completely clean to eliminate any troubles.

7:WASHING


Complete cleaning of the water & oil lines is meticulously done by hand manually with each and every block with every orifice and areas checked thoroughly, Then finished off with a high pressure hot wash in a specialized machine and finally completed with a high pressure air clean in evey line,gaps and orifices.
This extensive 3 stage process is time consuming but an absolute must to completely eradicate any unwanted burr and foreign material from causing harm to the internals.

8:PISTON,CONNECTING RODS WEIGHT MEASUREMENTS AND ADJUSTMENTS


The TOMEI products have already been checked and balanced when we packed them in the beginning.
But we then re-check the weights again in various assembly stageswhen we assemble the short block.
After the conrod and piston is assembled together we then again re-check the combined weights again to make sure that the weight difference is within 0.1g from each other donrod and piston assembly.
This will yield the best response,added power,smoother operations and extending engine life and durability.

9:DYNAMIC BALANCING OF THE CRANKSHAFT


The dynamic balancing of the crankshaft helps improve response, extra power gains, significantly reduces unwanted vibrations which eases the stress on bearings to minimize rebuilds.
The crankshaft is also checked for any signs of bends in the crank and for any other faults and if found it will be corrected during this process.
Just another time intensive process that you will no longer have to worry about.

10:CRANKSHAFT & CONNECTING ROD BEARINGS


Each bearing clearance is carefully checked for guaranteeing that the right amount of oil film is maintained in the right areas for optimum lubrication of the crankshaft without causing any unwanted friction.
The thrust direction is also checked and this entire process is also performed in a climate controlled room with all parts and essential equipment maintained at a constant 20 ℃.

11:PISTON RINGS


The Piston ring is designed to provide the best sealing properties and clearance.
These piston rings are designed as a perfect circle for the protection of the cylinder walls and for maximum sealing properties.
This also aids with the best protection possible for the cylinder walls for extending the life of the engine.

12:PRECISION ASSEMBLY


Our precision assemblies are well known throughout the years and have been our trademark.
Our high standard of work has proven records on the street, track and evens to deliver results when needed most.
Our stringent lebels of operations management in materials and processes reflect on our products performance throughout the years.
