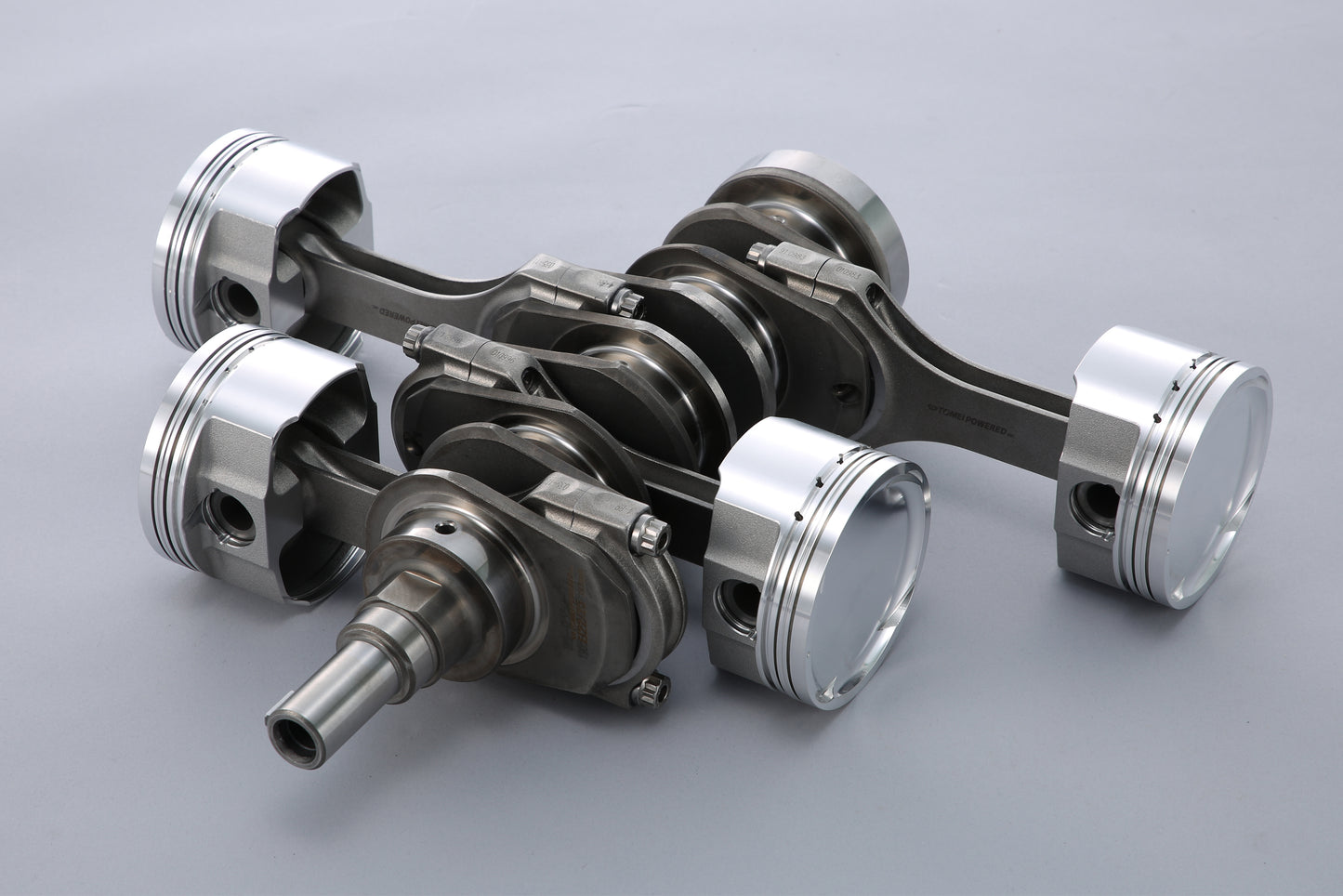

Tomei EJ22KIT
Tomei EJ22KIT
Regular price
£3,886.88
Regular price
Sale price
£3,886.88
Unit price
per
Taxes included.
Shipping calculated at checkout.
Some items may take 3-5 days to ship.
Couldn't load pickup availability
Full Billet 79.0mm Stroked!
New, stronger and lighter weight crankshaft.All new engine kit to win the competitions!
PRODUCT INFO
| APPLICATION | BORE | P/N | NOTES | |
|---|---|---|---|---|
| EJ205 EJ207 |
φ92.5 | 252007 |
【With Conrod Bearings Bundle Pack】
| APPLICATION | BORE | P/N | NOTES | |
|---|---|---|---|---|
| EJ205 EJ207 |
φ92.5 | 250019 |
FEATURE / SPEC
SPEC
PISTON
|
Bore (Φ) |
Pin Dia (Φ) |
Recess |
Comp.Height (mm) |
PistonCrownVolume (cc) |
Weight (g) |
|---|---|---|---|---|---|
| 92.5 | 23.0 | ○ | 31.0 | 18.43 | 498 |
| Top ring B×T(mm) | Second ring B×T(mm) | Oil ring B×T(mm) |
|---|---|---|
| 1.2×3.30 | 1.2×3.70 | 2.5×2.85 |
CRANKSHAFT
| Stroke (mm) | Weight (kg) | STD Stroke (mm) |
|---|---|---|
| 79.0 | 8.0 | 75.0 |
CONNECTING ROD
| Conrod | Conrod Bolt | Conrod Bearing | Material | ||||
|---|---|---|---|---|---|---|---|
|
Length (mm) |
L.Diam×Length (mm) |
S.Diam×Length (mm) |
Bolt Size |
Height Under Neck (mm) |
Inner Circum (mm) |
Bearing Width (mm) |
|
| 130.5 | φ55×21.4 | φ23×21.4 | 3/8-24 | 40 | 52 | 16.5 | SNCM439 |
Compression Ration Specs
| Bore | φ92.5 | |
|---|---|---|
|
Gasket Thickness (mm) |
0.7 | 8.2 |
| 1.0 | 8.0 | |
| 1.2 | 7.9 | |
| 1.5 | 7.7 | |
| 1.8 | 7.6 | |
| Gasket Bore | 93.5 | |
DATA
Displacement Comparison
| EJ20 STD | TOMEI EJ22KIT | TOMEI EJ25KIT | TOMEI EJ26KIT | |
|---|---|---|---|---|
| BORE×STROKE | Φ92×75.0mm | Φ92.5×79.0mm | Φ99.75×79.0mm | Φ99.75×83.0mm |
| DISPLACEMENT | 1994cc | 2123cc | 2468cc | 2593cc |
KIT WITH BEARINGS INCLUDED
Tomei has made an option to include their Competition Bearing Series product with our kits. All the engine internals are brought to static temperature (20 degrees Celcius) and blueprinted with 0.040~0.060mm clearance bearings.This eliminates the measuring and blueprinting process for the customer, so the kit can be installed with less hassle.
