TOMEI

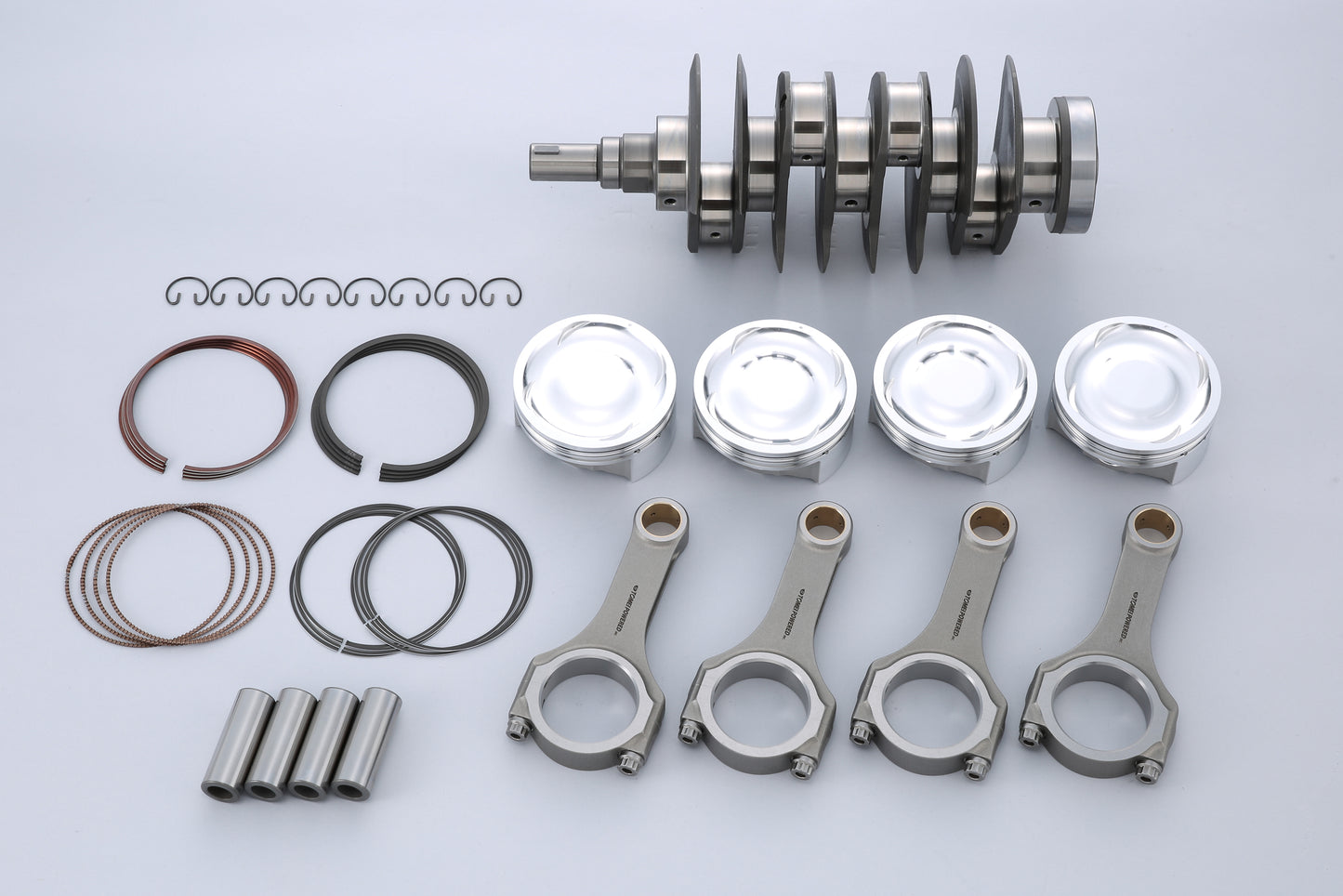

Tomei EJ26KIT 99.75mm
Tomei EJ26KIT 99.75mm
Regular price
£3,715.85
Regular price
Sale price
£3,715.85
Unit price
per
Taxes included.
Some items may take 3-5 days to ship.
Couldn't load pickup availability
Power, Torque, Response & Total Balance. A Fresh, New Stroker Kit Design to Suit a Wide Range Of Needs.
PRODUCT INFO
| APPLICATION | BORE | P/N | NOTES | |
|---|---|---|---|---|
| EJ255 EJ257 |
φ99.75 | 252001 |
【With Conrod Bearings Bundle Pack】
| APPLICATION | BORE | P/N | NOTES | |
|---|---|---|---|---|
| EJ255 EJ257 |
φ99.75 | 250015 |
FEATURE / SPEC
SPEC
PISTON
|
Bore (Φ) |
Pin Dia (Φ) |
Length (mm) |
Recess |
Comp.Height (mm) |
PistonCrownVolume (cc) |
Weight (g) |
Pin weight (g) |
Total weight (g) |
|---|---|---|---|---|---|---|---|---|
| 99.75 | 23.0 | 62 | ○ | 30.7 | 19.5 | 380 | 123 | 503 |
| Top ring B×T(mm) | Second ring B×T(mm) | Oil ring B×T(mm) |
|---|---|---|
| 1.2×3.60 | 1.2×4.0 | 2.5×3.0 |
CRANKSHAFT
| Stroke (mm) | Weight (kg) | STD Stroke (mm) |
|---|---|---|
| 83.0 | 9.2 | 79.0 |
CONNECTING ROD
| Conrod | Conrod Bolt | Conrod Bearing | Material | ||||
|---|---|---|---|---|---|---|---|
|
Length (mm) |
L.Diam×Length (mm) |
S.Diam×Length (mm) |
Bolt Size |
Height Under Neck (mm) |
Inner Circum (mm) |
Bearing Width (mm) |
|
| 127.8 | φ55×21.4 | φ23×21.4 | 3/8-24 | 40 | 52 | 16.5 | SNCM439 |
Compression Ration Specs
| Bore | φ99.75 | |
|---|---|---|
|
Gasket Thickness (mm) |
0.7 | 8.5 |
| 1.0 | 8.3 | |
| 1.2 | 8.2 | |
| 1.5 | 8.0 | |
| Gasket Bore | 101.2 | |
DATA
Displacement Comparison
| EJ20 STD | TOMEI EJ22KIT | EJ25 STD | TOMEI EJ26KIT | |
|---|---|---|---|---|
| ボア×ストローク | Φ92×75.0mm | Φ92.5×79.0mm | Φ99.5×79.0mm | Φ99.75×83.0mm |
| 排気量 | 1994cc | 2123cc | 2457cc | 2593cc |
KIT WITH BEARINGS INCLUDED
Tomei has made an option to include their Competition Bearing Series product with our kits. All the engine internals are brought to static temperature (20 degrees Celcius) and blueprinted with 0.040~0.060mm clearance bearings.This eliminates the measuring and blueprinting process for the customer, so the kit can be installed with less hassle.
