Tomei EXHAUST MANIFOLD 1JZ-GTE JZX100/JZX110(W)/JZZ30(1996.8-/JZS171(W))
Tomei EXHAUST MANIFOLD 1JZ-GTE JZX100/JZX110(W)/JZZ30(1996.8-/JZS171(W))
Regular price
£855.11
Regular price
Sale price
£855.11
Unit price
per
Taxes included.
Shipping calculated at checkout.
Some items may take 3-5 days to ship.
Couldn't load pickup availability
The Full Cast Structure! The Best Answer for 1JZ-GTE Exhaust!
It reduce exhaust pressure and improve flow efficiency of the manifold collecting part. This allows to supply better performance for “Boost up ~ Bolt-On turbo” set up.

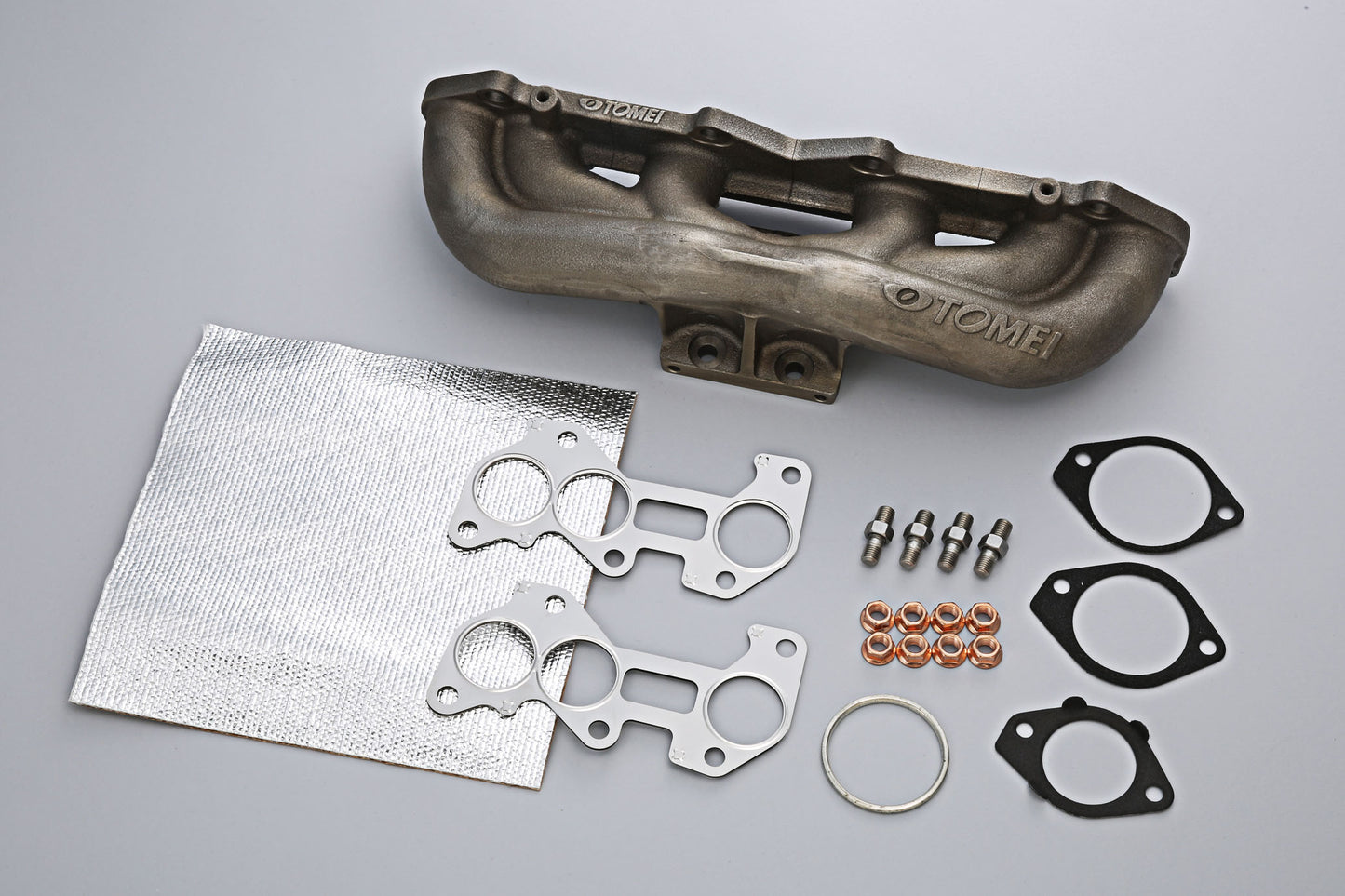

Exhaust Manifold
Air tube No.1 Gasket(φ60,φ65)
Turbo Charger Inlet Gasket
Air tube No.2 Gasket
Exhaust Manifold Gasket
Stud Bolt
Nut for Assembly
Flange Nut
Thermal Insulation Sheet
This exhaust manifold has been designed to perform with "boost-up ~ Bolt-On turbo" set up, specifically focus on increasing the power at high RPM range.
We choose casting process for 1JZ-GTE manifold which requires to stand high exhaust pressure, high exhaust temperature.
It demonstrates great mid-range pick up and powerful feeling at high-rpm which covers from street to drift tune use.
PRODUCT INFO
| APPLICATION | P/N | NOTES | ||
|---|---|---|---|---|
| 1JZ-GTE | JZX100 JZX110(W) JZS171(W) JZZ30(1996.8～) |
412001 | ・Compatible Turbines:Boost up and aftermarket bolt on turbines |
|
FEATURE / SPEC
| TOMEI | STD | |
|---|---|---|
| MANUFACTURING METHOD | CASTING | CASTING |
| PORT INLET DIA. (Inside dia.) | Φ39.0 | Φ30.0 |
| OUTER DIA. (Inside dia.) | Φ48.0 | Φ46.0 |
| FLANGE THICKNESS | CYLINDER HEAD：12.0mm TURBO：15.0mm |
13.0mm |
| WEIGHT | 6.7kg | 4.7kg |
■ Great performance for Boost up ~ Bolt-On Turbo applications
We adopt a manufacturing method to satisfy the all requirements for 1JZ exhaust manifold.It reduce exhaust pressure and improve flow efficiency of the manifold collecting part. This allows to supply better performance for “Boost up ~ Bolt-On turbo” set up.
KIT CONTENTS
DATA
