Tomei EXPREME EXHAUST MANIFOLD SR20DET (R)PS13/S14/S15

Tomei EXPREME EXHAUST MANIFOLD SR20DET (R)PS13/S14/S15

SKU: 193086
Regular price £691.86
Regular price Sale price £691.86
Sale Sold out
Taxes included.

Some items may take 3-5 days to ship.

Our EXPREME exhaust manifold is now available for SR20 owners who want a performance upgraded from the genuine exhaust manifold. With our product you can retain the genuine setup and no special modifications are needed to fit the standard turbo. With the SR20DET the exhaust manifold was designed to be close from the exhaust port to the turbine. With the comparison test of our isometric prototype & the factory genuine manifold which also utilizes the same layout, it shows that ours has succeeded in delivering an overall improved performance in both torque and power increase in areas like in the higher RPM range in which you were not able to utilize before. With our extensive testing we have reached the conclusion that the normal design is superior as a total overall efficiency. So to develop an exhaust manifold similar with the design and setup as the factory manifold we were finally able to produce a product worthy to bear our name as a product that has the potential to deliver an overall increase in performance.

PRODUCT INFO

APPLICATION P/N NOTES
SR20DET (R)PS13,S14,S15 193086 ・Compatible Turbines:Genuine and aftermarket bolt on turbines
・When this is to be installed to a (R)PS13, the factory standard outlet pipe may not fit as some models are different in which you will need to look at using this with our EXPREME outlet pipe to suit.

FEATURE / SPEC

MATERIAL PIPE SUS304
FLANGE STAINLESS STEEL
PIPE DIAMETER MAINφ42.7 / EXIT 4-2 TYPE
VOLUME 2.0mm
WEIGHT 3.3kg(STD 5.1kg)

■ Acquiring preeminent turbine response

Acquiring the preeminent turbine response, by utilizing a short piping layout.

■ Excessive anti-pressure rise is prevented even at high RPMs. Ideal exhaust efficiency is obtained.

TOMEI EXPREMEs exhaust manifold for the SR20 is designed with a partition plate inside the 1st & 4th turbine side ports as the 2nd & 3rd are divided for the exhaust ports. The sequential ignition firing order of the SR20 (1-3-4-2) can cause exhaust interference. The exhaust is discharged from both left and right of the partition plate and can cause to happen where the pipes all merge together. Now TOMEI has found the best possible exhaust flow.

■ Support Bracket

The support bracket is included, so there is no need to worry about the products strength.

■ Compatible with the EAI mechanism and blow-by separator.

EAI Control Valve can be installed upside down with just the use of a metal pipe to extend the connection to the hose as illustrated below.

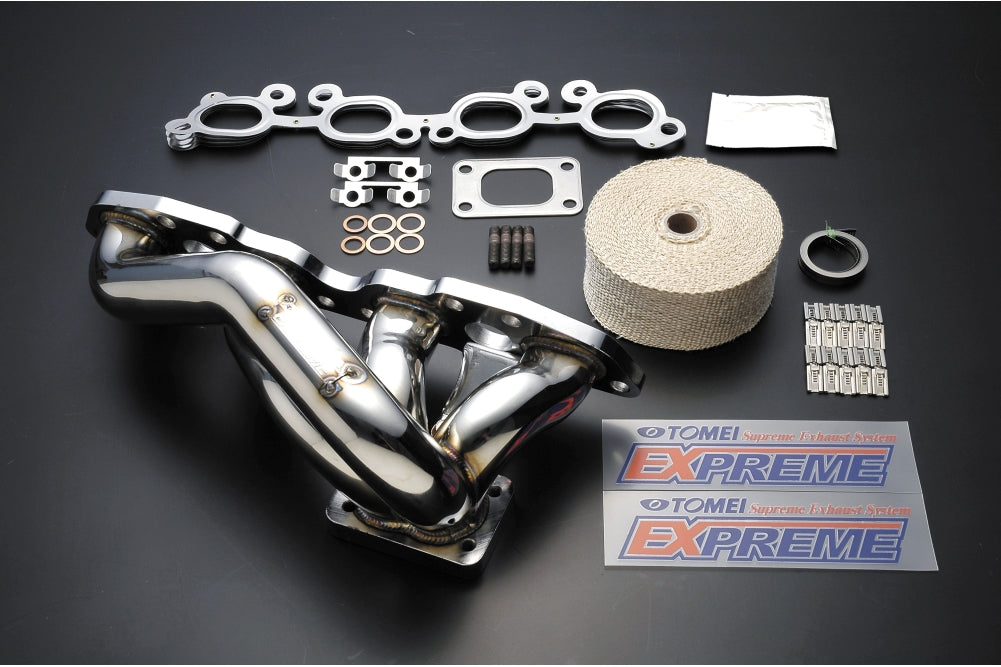

KIT CONTENTS


  • Header Unit
  • Exhaust Manifold Gasket
  • Turbo Charger Inlet Gasket
  • Eye Bolt Gasket(For Oil Line)
  • Eye Bolt Gasket(For Water Line)
  • Inlet Tube Gasket
  • Lock Plate
  • Stud Bolt
  • Bandage
  • Bandage Band
  • DATA
