TOMEI
Tomei EXPREME OUTLET COMPONENT EVO7-9 VER.2
Tomei EXPREME OUTLET COMPONENT EVO7-9 VER.2
Regular price
£713.00
Regular price
Sale price
£713.00
Unit price
per
Taxes included.
Shipping calculated at checkout.
Some items may take 3-5 days to ship.
Couldn't load pickup availability
WIDE MOUTH OUTLET & 3INCH PIPE
940cc High Flow Wide Mouth （vs. stock：130％/vs. old ver.：120％）
58% Weight Reduction
Step-less flange
High strength and precision made using Lost-Wax Casting
Complete with turbo charger bracket
Complete with O2 Sensor Boss
3” Large Diameter Pipe
84% Weight Reduction
3” Diameter Through to Catalytic Converter
Stress-dispersing flexible pipe
Step-less Flangee
Fits well with underside layout
The increased diameter and flow capacity improves exhaust efficiency whilst reducing secondary exhaust pressure.
The ver.2 was developed to cope with the demands of advanced 4G63 tuning.
In addition, the 74% overall weight reduction improves the vehicle’s responsiveness.
PRODUCT INFO
| APPLICATION | P/N | NOTES | ||
|---|---|---|---|---|
| EVO VII～IX MR | 4G63 | 433003 | ||
FEATURE / SPEC
■ TURBINE OUTLET
| TOMEI | STD | ||
|---|---|---|---|
| MATERIAL | MAIN | SUS304 | Cast Iron |
| FLANGE | |||
| EXIT DIA. | Φ73.3 | Φ56.5 | |
| FLANGE THICKNESS | FRONT | 11.0mm | 13.5mm |
| REAR | 115.mm | 14.5mm | |
| VOLUME | 940cc | 720cc | |
| WEIGHT | 1.75kg (3.86lbs) | 3.0kg (6.61lbs) | |
■ FRONT PIPE
| TOMEI | STD | ||
|---|---|---|---|
| MATERIAL | MAIN | SUS304 | IronR |
| FLANGE | IronR | Steel sheet | |
| PIPE DIAMETER | Φ76.3 | Φ60.5 | |
| PIPE THICKNESS | 1.5mm | 1.5mm | |
| FLANGE THICKNESS | FRONT | 11.5mm | 2.0mm |
| REAR | 12.0mm | 12.0mm | |
| WEIGHT | 4.05kg (8.93lbs) | 4.8kg (10.58lbs) | |

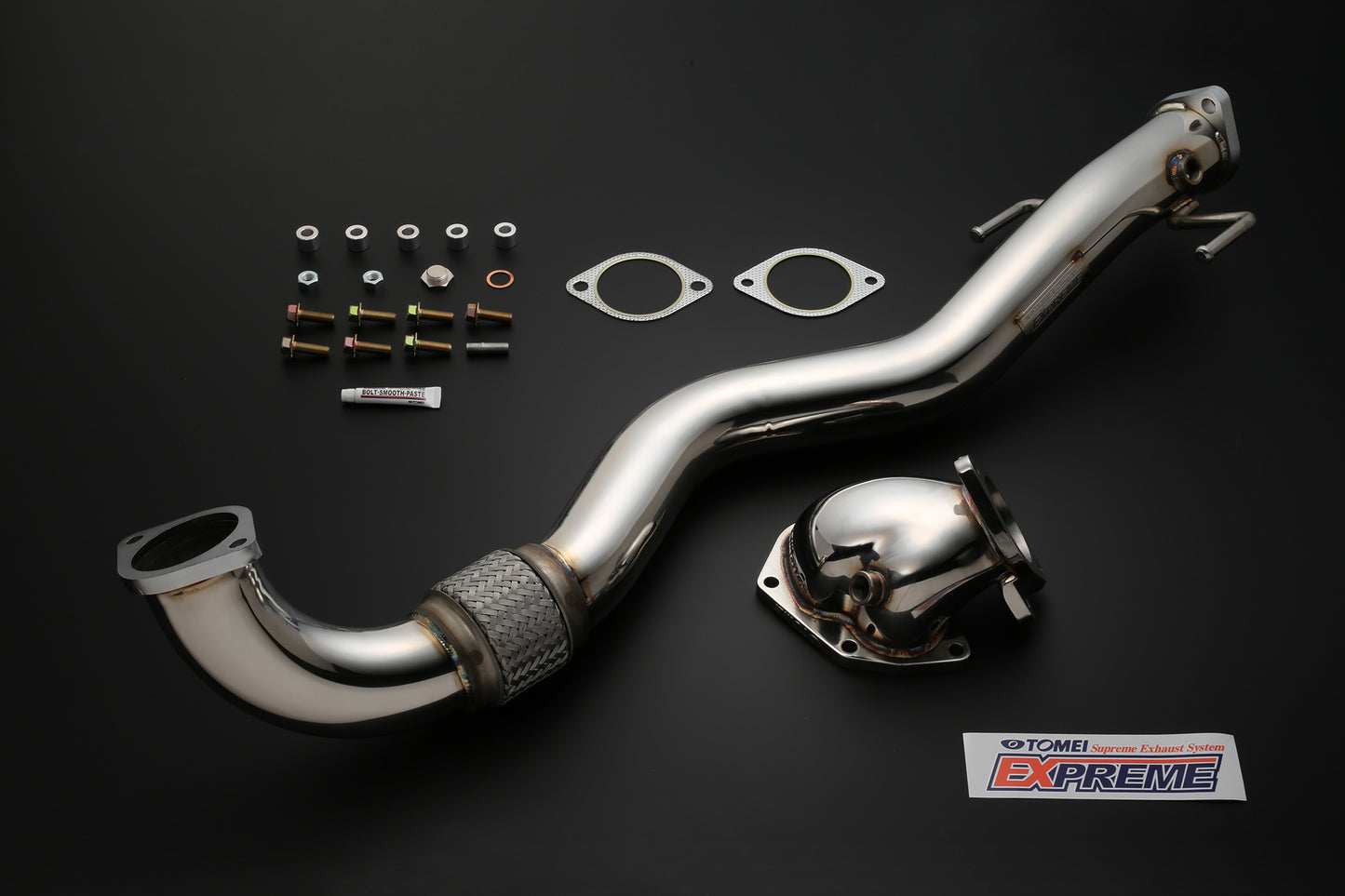

KIT CONTENTS
 |
|
DATA
