To truly enjoy the FA20 is to extract the most from it in NA form. So maximum weight reduction is an essential part of it. This product is specifically designed for competition use. With the absence of a catalytic converter, the pipes made from Titanium, this drastically reduces the overall weight to compliment the power gains.
When fitted to a car that has a forced induction setup, it greatly enhances the performance gains with the improved exhaust flow efficiency. This is one of the key products to extract the performance potential of the 86/BRZ/FR-S.
PRODUCT INFO
| APPLICATION | P/N | NOTES | |
|---|---|---|---|
| 86/BRZ(JDM・USDM)/FR-S FA20 6MT |
431005 | ※Designed for true competition off road use only. |
FEATURE / SPEC

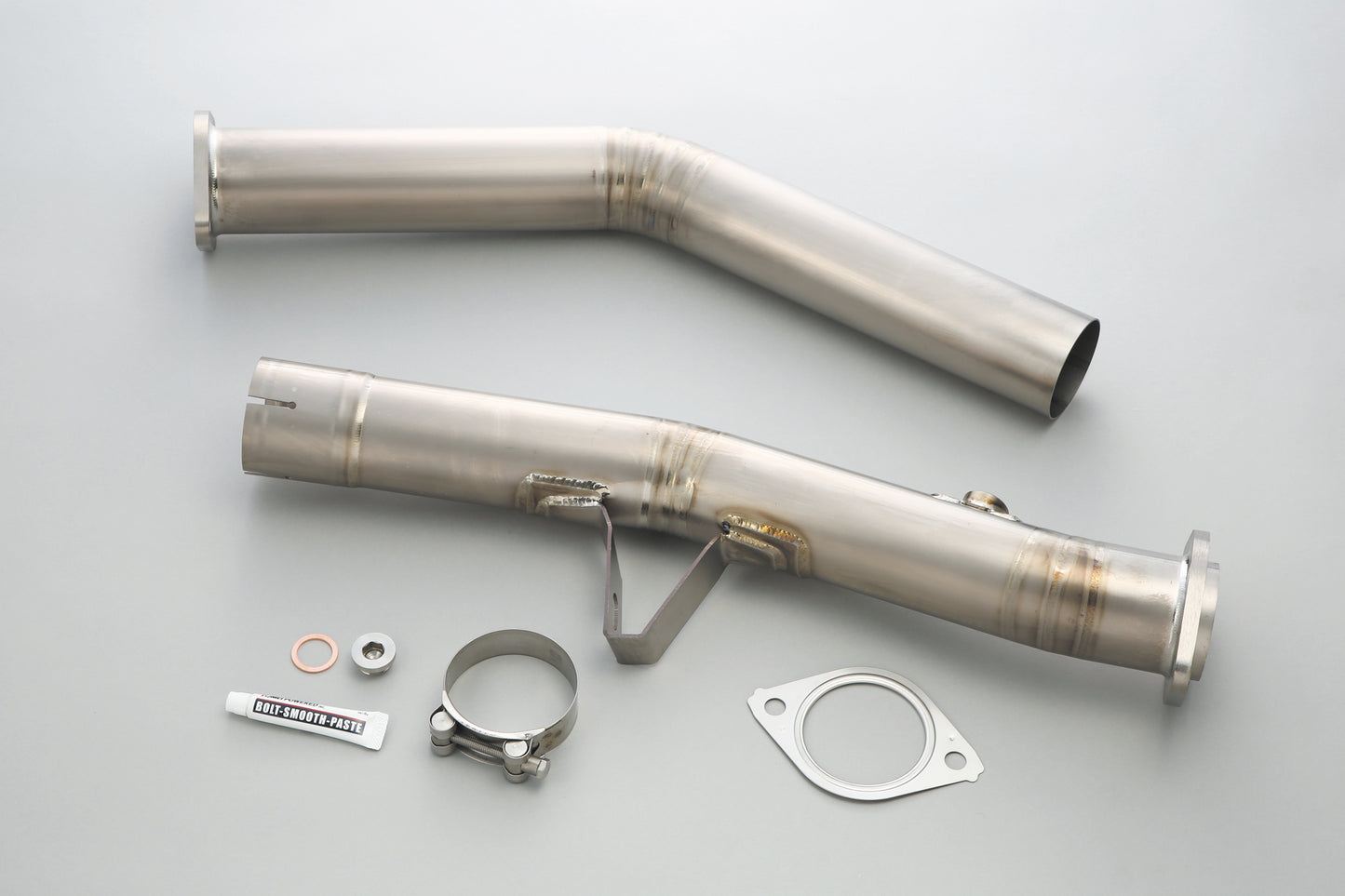

KIT CONTENTS
SPEC
| TOMEI | STD | |
|---|---|---|
| MATERIAL | TITANIUM | IRON |
| PIPE DIAMETER | Φ60.5 | Φ60.5 |
| PIPE THICKNESS | 1mm | 1.5mm |
| FLANGE THICKNESS (F) | 8.0mm | 10.0mm. |
| FLANGE THICKNESS (R) | 8.0mm | 8.0mm |
| WEIGHT | 1.4kg | 5.5kg |
| 4.1kg DROP! | ||
STYLE
 |
 |
 |
||
| 【FRONT SIDE】 Precision lightweight Titanium flange. |
【REAR SIDE】 Utilizes the same round Φ60.5 diameter flange design as the std item. |
【2 SECTION LAYOUT】 2 section pipe layout for ease of installation and a Mikalor damp band. |
||
 |
 |
|||
| 【BRACKET】 Lightweight Titanium is used. With a base plate to distributes stress. |
【A/F SENSOR BOSS】 Comes equipped with an A/F sensor boss for convenience when tuning. |
