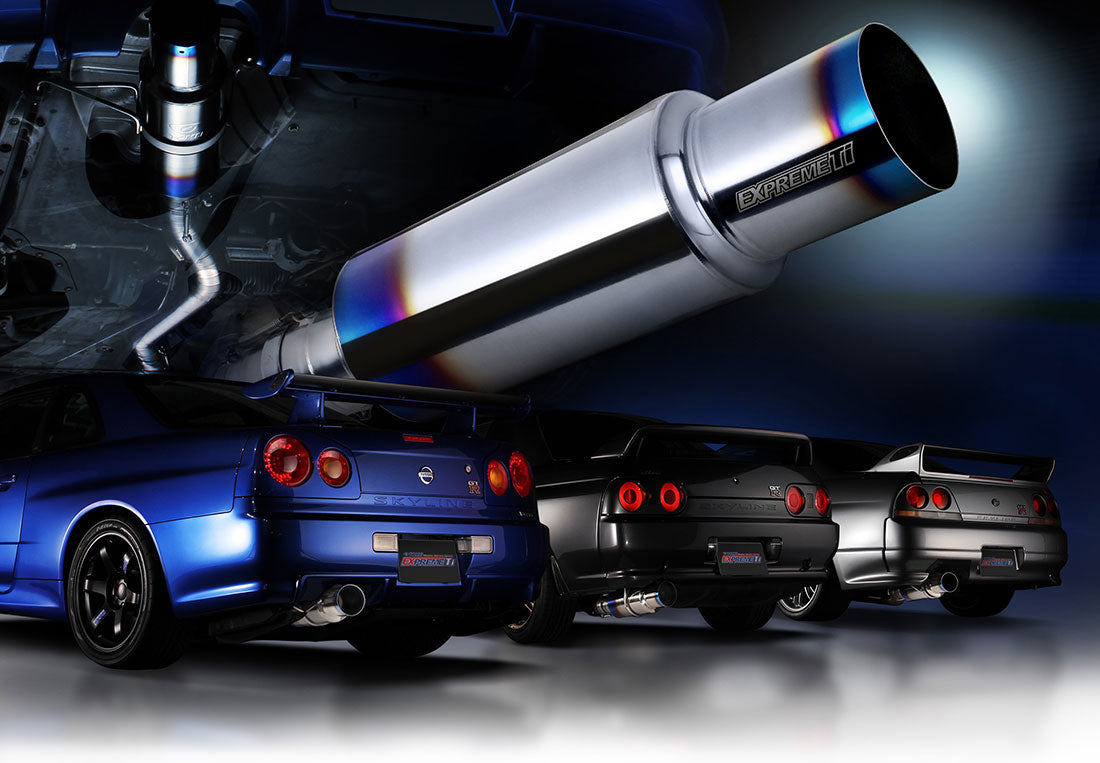

Tomei EXPREME Ti TITANIUM MUFFLER for BCNR33 RB26DETT
Tomei EXPREME Ti TITANIUM MUFFLER for BCNR33 RB26DETT
Regular price
£1,305.99
Regular price
Sale price
£1,305.99
Unit price
/
per
Taxes included.
Shipping calculated at checkout.
Some items may take 3-5 days to ship.
Couldn't load pickup availability
The Ultimate High-Performance Muffler for the 2nd Generation GT-R

When aiming for true performance efficiency, we had chosen to design the exhaust with the least amount of bends as possible. Just like the true purpose built race cars, in a racing layout design, yet to still comply with the stock body design so it can be fitted to any street used vehicles.
The conventional style flange is not used to help reduce weight even further. The use of the springs and clamps eliminates the need for gaskets as well.
BNR32


BCNR33


BNR34

High quality production, for true competition use without compromise. Only the best Titanium grade materials are used. From the special racing layout design, made as straight as possible, to the high flow silencer. We have poured our knowledge into it all. When you see our EXPREME Ti system, you can then understand that ours is unrivaled in terms of performance and price.
PRODUCT INFO
APPLICATION | P/N | NOTES | |
---|---|---|---|
BNR32 | 440007 | ※FOR OFF ROAD USE ONLY. | |
BCNR33 | 440008 | ||
BNR34 | 440009 |
FEATURE / SPEC
KIT CONTENTS
![]() |
|
SPEC
Designed for results, not too thick or thin. For best overall power gains, weight reductions and value for money.
BNR32 | BCNR33 | BNR34 | ||||
---|---|---|---|---|---|---|
TOMEI | STD | TOMEI | STD | TOMEI | STD | |
MATERIAL | TITANIUM | IRON | TITANIUM | STAINLESS | TITANIUM | STAINLESS |
MAIN PIPE DIAMETER | Φ89.1 | Φ70.0 | Φ89.1 | Φ68-63.5mm | Φ89.1 | Φ68-63.5mm |
MAIN PIPE THICKNESS | 1mm | 1.5mm | 1mm | 1.5mm | 1mm | 1.5mm |
SILENCER DIAMETER | Φ152 | – | Φ152 | – | Φ152 | – |
SILENCER THICKNESS | 1mm | – | 1mm | – | 1mm | – |
EXIT DIAMETER | Φ115 | (92-70mm) | Φ115 | (80-72mm)×2 | Φ115 | 80mm×2 |
EXIT THICKNESS | 1mm | – | 1mm | – | 1mm | – |
FLANGE THICKNESS | 8.0mm | 8.0mm | 8.0mm | 8.0mm | 8.0mm | 8.0mm |
WEIGHT | 7.35kg | 19.5kg | 7.15kg | 18.9kg | 7.05kg | 18.0kg |
12.15kg DROP! | 11.75kg DROP! | 10.95kg DROP! |
DATA

LAYOUT

RACING LAYOUT
A : MAIN SILENCER/ TAIL END
Compared with the stock design, our design is single piping all the way for max weight reduction. We have also focused on the design of the muffler to produce the best exhaust sound without compromising performance.B : MAIN PIPE
The pipe diameter was chosen for optimum exhaust flow efficiency. For performance use in mind and weigh reduction. Thus the slide joints was made instead of using the conventional flange and gasket design.C :SUB SILENCER
This design was adopted for maximum exhaust flow efficiency without comprimising the quality of the structure and sound.3 SECTION PIPE ASSEMBLY
