Tomei EXPREME Ti TITANIUM MUFFLER for GDB A-D JDM

Tomei EXPREME Ti TITANIUM MUFFLER for GDB A-D JDM

SKU: 440005
£1,305.99
£1,305.99
Sale Sold out
Taxes included. Shipping calculated at checkout.

Some items may take 3-5 days to ship.
MORE POWER, LESS WEIGHT, DRAMATIC CHANGE FOR IMPREZA GDB

High quality production, for true competition use without compromise. Only the best Titanium grade materials are used. From the special racing layout design, made as straight as possible, to the high flow silencer. We have poured our knowledge into it all. When you see our EXPREME Ti system, you can then understand that ours is unrivaled.

PRODUCT INFO

APPLICATION P/N NOTES
GDB A/B/C/D ※for JDM 440005 ※FOR OFF ROAD USE ONLY.
GDB E/F/G ※for JDM 440010
WRX/WRX STI 02-07 ※for USDM 440006

FEATURE / SPEC

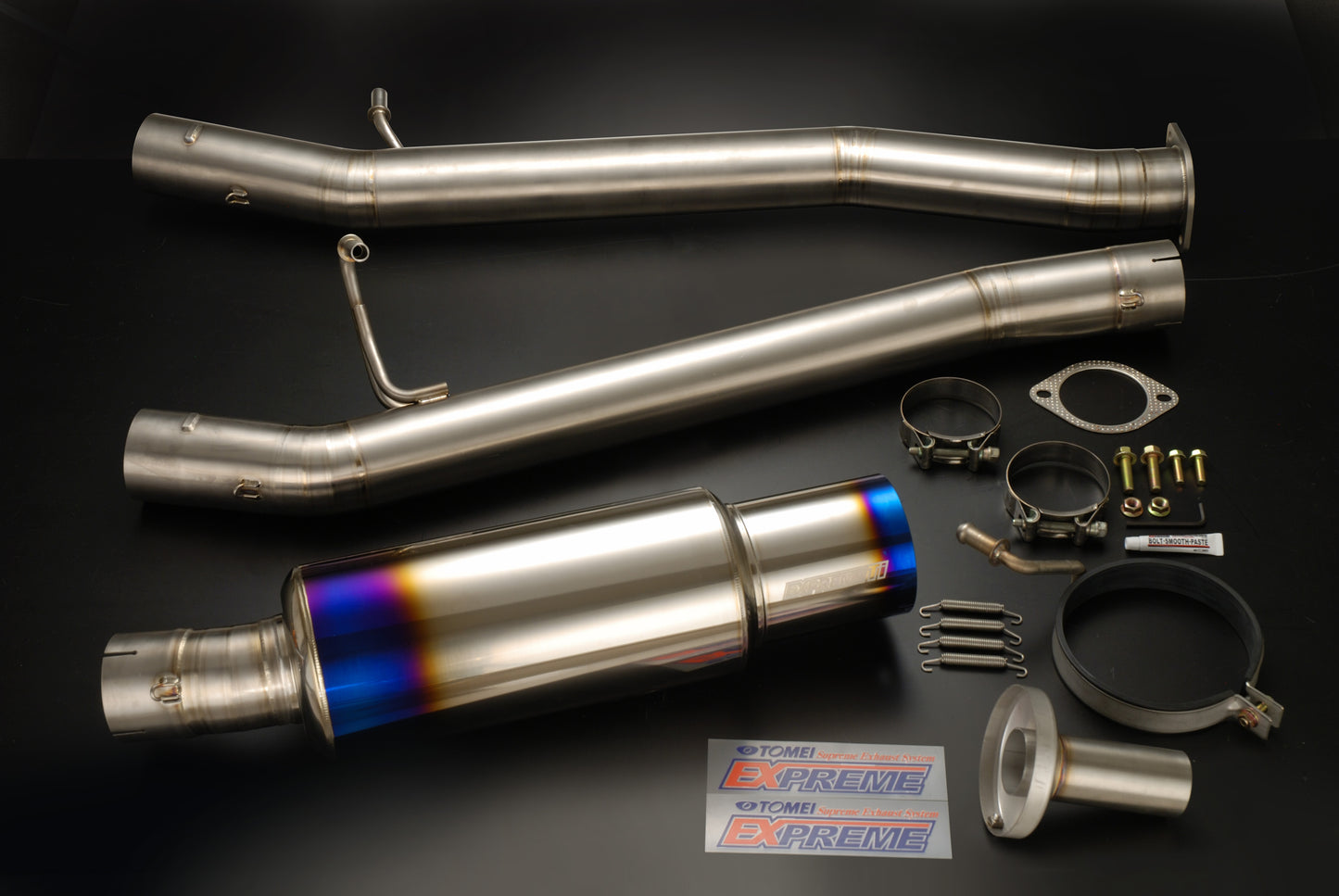

KIT CONTENTS


for JDM for USDM
  • MAIN PIPE A
  • MAIN PIPE B
  • SILENCER ASSY
  • CLAMP BAND
  • SPRING
  • SILENCER BAND
  • BAND RUBBER
  • FLANGE BOLT M8 L=25
  • FLANGE NUT M8
  • FLANGE BOLT M8 L=55
  • SOUND REDUCER
  • BUTTON BOLT
  • ALLEN KEY
    		•
  • MAIN PIPE A
  • MAIN PIPE B
  • SILENCER ASSY
  • STD FRONT PIPE GASKET
  • STD FRONT PIPE FLANGE BOLT M8
  • STD FRONT PIPE FLANGE NUT M8
  • AFTERMARKET FRONT PIPE GASKET
  • AFTERMARKET FRONT PIPE FLANGE BOLT
  • SILENCER ASSY
  • AFTERMARKET FRONT PIPE FLANGE NUT
  • CLAMP BAND
  • SPRING
  • SILENCER BAND
  • BAND RUBBER
  • FLANGE BOLT M8
  • FLANGE NUT M8
  • SOUND REDUCER
  • BUTTON BOLT
  • ALLEN KEY (1)
    		•
    SPEC
    TOMEI STD (GDB-C)
    MATERIAL TITANIUM IRON
    MAIN PIPE DIAMETER Φ80.0 Φ60.5
    MAIN PIPE THICKNESS 1mm 1.5ｍｍ
    SILENCER DIAMETER Φ152 –
    SILENCER THICKNESS 1mm –
    EXIT DIAMETER Φ115 Φ100
    EXIT THICKNESS 1mm –
    FLANGE THICKNESS 2.0mm 2.5mm
    WEIGHT 5.1kg 15.5kg
    10.4kg DROP!
    DATA
    LAYOUT

    RACING LAYOUT

    For the best exhaust efficiency results minimal bends and curves was the design focus points on this product which aided with the supreme results.

    3 SECTION PIPE ASSEMBLY

    No flanges were fitted for increased weight savings and for a better finish with the race look secure springs and clamp methods.

    STYLE


  • GDB APPLIED C



  • GDB APPLIED G
