TOMEI

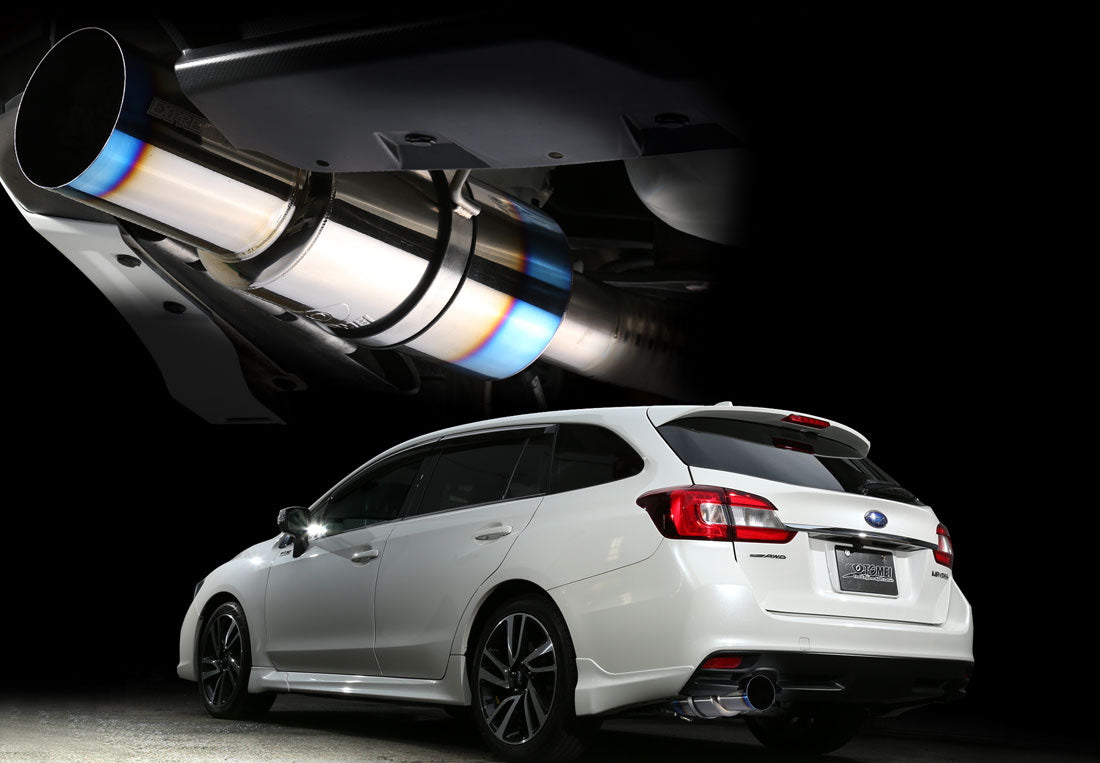

Tomei EXPREME Ti TITANIUM MUFFLER for LEVORG

Tomei EXPREME Ti TITANIUM MUFFLER for LEVORG

SKU: 440023
£1,305.99
£1,305.99
Sale Sold out
Taxes included.

Some items may take 3-5 days to ship.
Ultimate performance exhaust now out! Extract the latent potential of the Sport Wagon!

Feather weight titanium construction with minimal bends racing layout and straight through muffler design.
Expreme Ti has been developed for only one simple purpose, true performance to win.

PRODUCT INFO

APPLICATION P/N NOTES
2.0(VMG)
1.6(VM4)		 440023 ※FOR OFF ROAD USE ONLY.
※COMPATIBLE WITH STOCK FRONT PIPE

FEATURE / SPEC

KIT CONTENTS


  • MAIN PIPE A
  • MAIN PIPE B
  • SILENCER ASSY
  • BOLT M8 L=25mm
  • BOLT M8 L=55mm
  • NUT M8
  • CLAMP BAND
  • SPRING
  • SILENCER BAND
  • BAND RUBBER
  • SOUND REDUCER
  • ALLEN KEY
    		•
    SPEC
    TOMEI STD
    MATERIAL TITANIUM IRON
    MAIN PIPE DIAMETER Φ80 Φ60.5-54.0-42.7×2
    SUB SILENCER DIAMETER Φ120 MEASUREMENT N/A
    MAIN SILENCER DIAMETER Φ152 MEASUREMENT N/A
    PIPE THICKNESS 1mm 1.5mm
    EXIT DIAMETER Φ115 Φ80-100
    EXIT THICKNESS STRAIGHT CUT-OFF OVAL DOUBLE PIPE
    FLANGE THICKNESS 2.0mm 2.0mm
    WEIGHT 7.0kg 23.3kg
    16.3kg DROP!
    DATA
    EXHAUST NOISE TEST      LEVORG 2.0(VAG) TESTED： 4000rpm
    TOMEI STD
    64.0db(IDLING）/92.6db 60.5db(IDLING）/81.5db

     LEVORG 1.6(VM4) TESTED： 4000rpm
    TOMEI STD
    63.4db(IDLING）/79.7db 58.5db(IDLING）/79.7db
    LAYOUT

    RACING LAYOUT


    When aiming for true performance efficiency, we had chosen to design the exhaust with the least amount of bends as possible. Just like the true purpose built race cars, in a racing layout design, yet to still comply with the stock body design so it can be fitted to any street used vehicles.
    80mm main pipe, racing straight layout and lightweight single tail design provides another level of performance and weight reduction.

    SECTION PIPE ASSEMBLY

    The conventional style flange is not used to help reduce weight even further. The use of the springs and clamps eliminates the need for gaskets as well.

    STYLE
