Tomei EXPREME Ti TITANIUM MUFFLER for WRX VAB_VAG/FORESTER
Tomei EXPREME Ti TITANIUM MUFFLER for WRX VAB_VAG/FORESTER
Regular price
£1,305.99
Regular price
Sale price
£1,305.99
Unit price
per
Taxes included.
Shipping calculated at checkout.
Some items may take 3-5 days to ship.
Couldn't load pickup availability
Super High-Flow and Ultimate lightweight!
When aiming for true performance efficiency, we had chosen to design the exhaust with the least amount of bends as possible. Just like the true purpose built race cars, in a racing layout design, yet to still comply with the stock body design so it can be fitted to any street used vehicles.
80mm main pipe, racing straight layout and lightweight single tail design provides another level of performance and weight reduction.
Feather weight titanium construction with minimal bends racing layout and straight through muffler design.
Expreme Ti has been developed for only one simple purpose, true performance to win.
PRODUCT INFO
| APPLICATION | P/N | NOTES | ||
|---|---|---|---|---|
| WRX STI(VAB) WRX S4(VAG) FORESTER SJG |
※for JDM | 440022 | ※For OFF ROAD use only. ※Compatible with stock Front pipe. ※Slight modification to the bumper cover will be required to fit the exhaust to Forester. |
|
FEATURE / SPEC

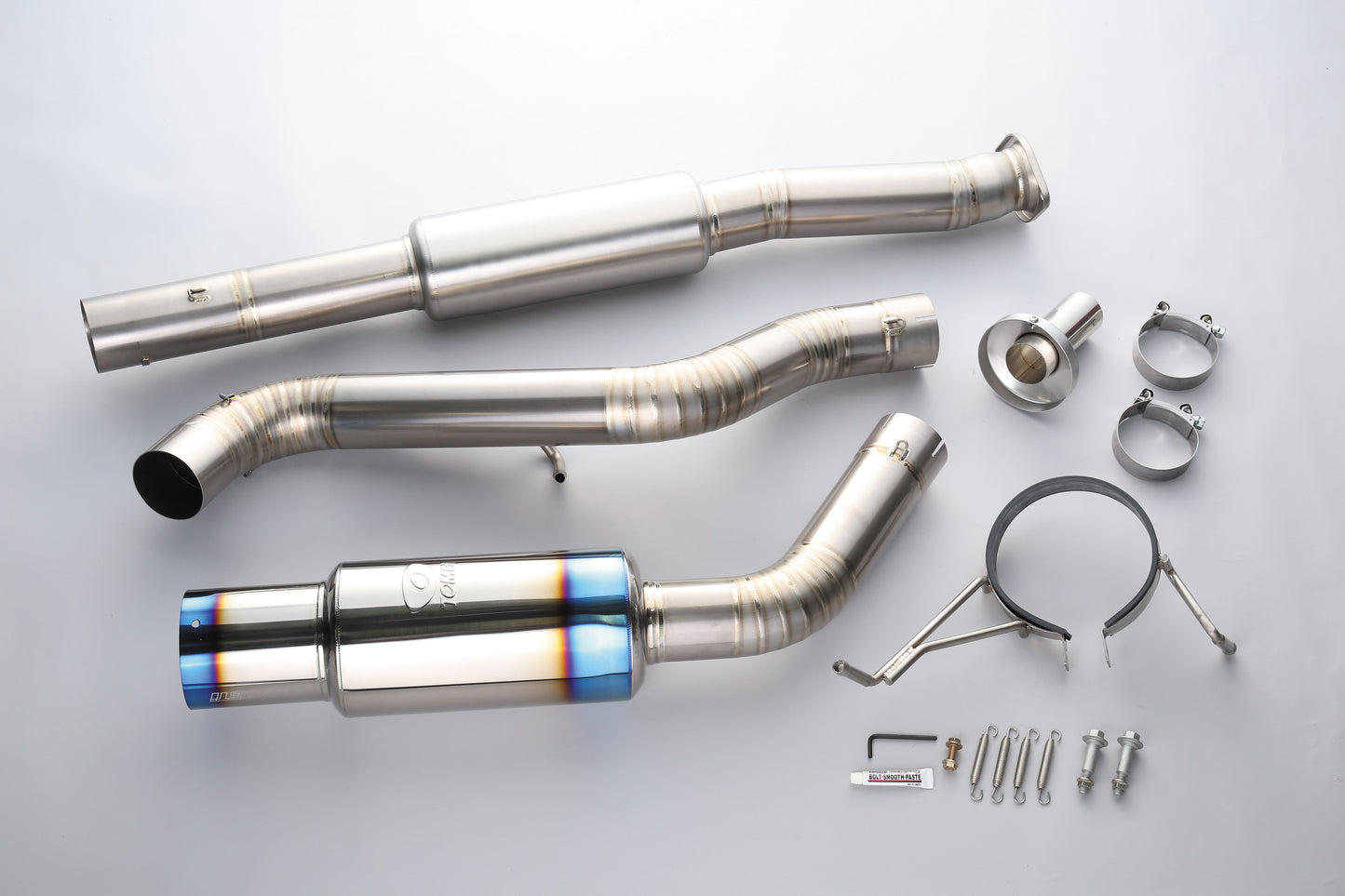

KIT CONTENTS
 |
|
SPEC
| TOMEI | STD (VAB ,VAG) | STD (FORESTER) | |
|---|---|---|---|
| MATERIAL | TITANIUM | IRON | IRON |
| MAIN PIPE DIAMETER | Φ80 | Φ60.5-42.7×2 | φ60.5-φ48.0-φ38.0×2 |
| SUB SILENCER DIAMETER | Φ120 | MEASUREMENT N/A | MEASUREMENT N/A |
| MAIN SILENCER DIAMETER | Φ152 | MEASUREMENT N/A | MEASUREMENT N/A |
| PIPE THICKNESS | 1mm | 1.5mm | 1.5mm |
| EXIT DIAMETER | Φ115 | Φ80×2 | 90-75 OVALE |
| EXIT THICKNESS | STRAIGHT CUT-OFF | DOUBLE PIPE | DOUBLE PIPE |
| FLANGE THICKNESS | 2.0mm | 2.0mm | 2.0mm |
| WEIGHT | 6.9kg | 23.1kg | 20.3kg |
| 16.2kg DROP! | 13.4kg DROP! | ||
DATA
| WRX S4(VAG) TESTED： 4000rpm | ||
|---|---|---|
| TOMEI | STD | |
| EXHAUST NOISE TEST | 75.1db(IDLING）/89.1db | 60.0db(IDLING）/78.5db |
LAYOUT
RACING LAYOUT
When aiming for true performance efficiency, we had chosen to design the exhaust with the least amount of bends as possible. Just like the true purpose built race cars, in a racing layout design, yet to still comply with the stock body design so it can be fitted to any street used vehicles.
80mm main pipe, racing straight layout and lightweight single tail design provides another level of performance and weight reduction.
SECTION PIPE ASSEMBLY
 |
The conventional style flange is not used to help reduce weight even further. The use of the springs and clamps eliminates the need for gaskets as well. |
STYLE
・FORESTER
