Tomei EXPREME TURBINE OUTLET PIPE 1JZ-GTE JZX100/JZX110(W)/JZZ30(1996.8-)/JZS171(W)
Tomei EXPREME TURBINE OUTLET PIPE 1JZ-GTE JZX100/JZX110(W)/JZZ30(1996.8-)/JZS171(W)
Regular price
£373.14
Regular price
Sale price
£373.14
Unit price
/
per
Some items may take 3-5 days to ship.

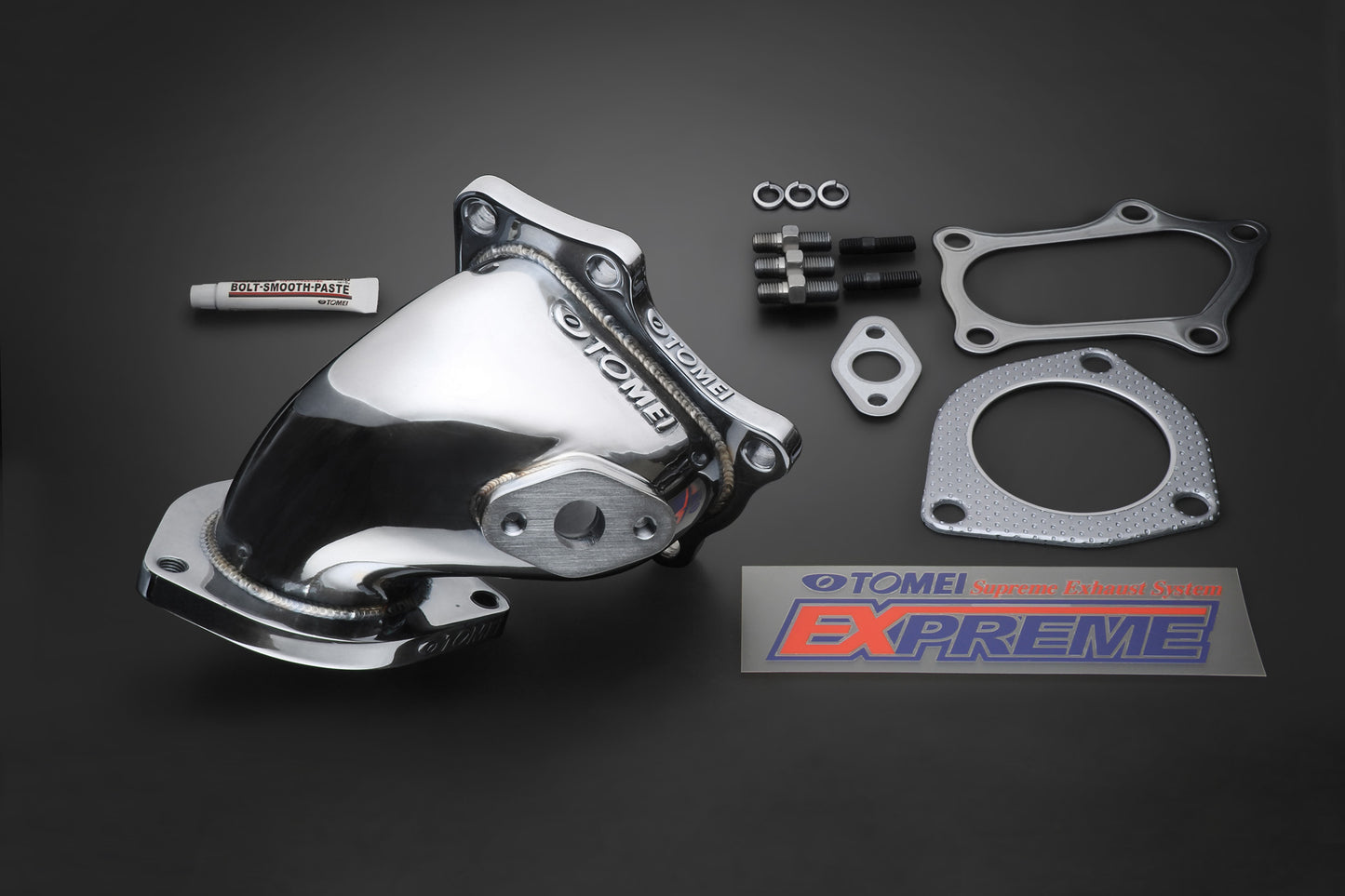

Large Capacity For High Flow, Maximise Your 1JZ Potential!
Exit DIA the 120% increase over stock. Greatly reduces the secondary exhaust gas pressure.
The internal shape is made smooth to optimize the large volumetric gas flow. With a well designed flange for ease of installation. This products design will maximize the Tomei ARMS Turbos performance potential. It was designed with the exit diameter of Φ76.3mm, yet with the same flange bolt pattern of the stock front pipe.
PRODUCT INFO
APPLICATION | P/N | NOTES | ||
---|---|---|---|---|
JZX100 JZX110/JZX110W JZZ30 Late JZS171/JZS171W |
1JZ-GTE | 424001 |
FEATURE / SPEC
TOMEI | STD | |
---|---|---|
MATERIAL | SUS304 | STEEL |
EXIT DIA. | Φ76.3 | Φ60.0 |
FLANGE THICKNESS | 12mm | 13.8mm |
VOLUME | 810cc | 620cc |
WEIGHT | 1.8kg | 2.5kg |
■ WIDE MOUTH / 3 INCH (φ76.3mm) COMPATIBLE
Allows the exhaust gases to smoothly exit from the turbo without interference. The Lost Wax method was used for optimum strength and enhanced looks.Exit DIA the 120% increase over stock. Greatly reduces the secondary exhaust gas pressure.
