TOMEI
Tomei FUEL DELIVERY PIPE RB26DETT JECS
Tomei FUEL DELIVERY PIPE RB26DETT JECS
Regular price
£270.53
Regular price
Sale price
£270.53
Unit price
per
Taxes included.
Some items may take 3-5 days to ship.
Couldn't load pickup availability

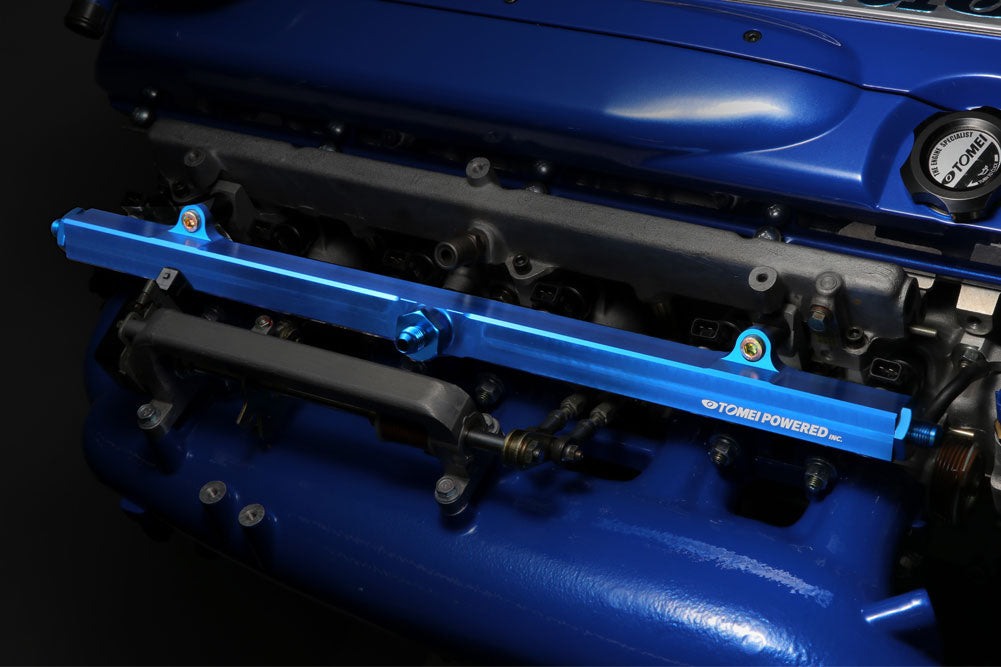

When upgrading the injectors on the RB26DETT engine, the fuel system will also require upgrading to ensure a stable fuel pressure supply.
The TOMEI Fuel Delivery Pipe is essential for the upgrade.
Even when using high flowing injectors. Designed to allow an increase in fuel flow even when using high flowing injectors.
PRODUCT INFO
| APPLICATION | TYPE | P/N | KIT CONTENTS | ||
|---|---|---|---|---|---|
| INJECTOR | ADAPTER | ||||
| RB26DETT BNR32/BCNR33/BNR34 |
DENSO | AN6 | 186006 | ・Pipe ・Adapter(3) ・O-Ring(3) ・8mm Bolt(2) ・Spacer(2) |
|
| AN6/Blind | 186007 | ||||
| AN8 | 186008 | ||||
| JECS | AN6 | 186009 | |||
※ Use what is required to suit the positioning of your setup.
OPTION ADAPTER
| ADAPTER TYPE | P/N | NOTES | |
|---|---|---|---|
| AN6 | 181010 | Please purchase additional items according to the application for which they are to be installed. | |
| AN6/Blind | 181011 | ||
| AN8 | 181015 |
FEATURE / SPEC
・Kit contains combination of fittings to suit each application.
・Billet aluminium.
The aluminium material prevents fuel percolation by its excellent heat dissipation.
Beautiful blue anodised aluminium colour on the body. Marking with TOMEI logo.
SYSTEM OUTLINE(reference)
SPEC
| Material | Coating | cc | Weigh | Injector Hole Size |
|---|---|---|---|---|
| Aluminium | Almite(Blue) | 160cc | 690g (including fitting) |
・JECS dia.: o10.45 |
| ・DENSO dia.: o10.90 |
・Increased internal capacity and the precise manufacturing with the specially formulated material reduces fuel pulsation.・If return hole in the centre is not used, it can be blocked with a blind plug. An O-ring is used at the plug ensure a secure seal.
Identification mark:JECS
Identification mark:DENSO
Compatible Injector (Application Examples)
| JECS TYPE | STD 444cc 16600 05U02 TOMEI 444cc 195013(Discontinued) TOMEI 555cc 195014(Discontinued) TOMEI 600cc 195015(Discontinued) nismo 555cc 16600 RR420 nismo 600cc 16600 RRR60 |
|---|---|
| DENSO TYPE | DENSO 700cc 183008(Discontinued) DeatschWerks 555cc 42M-01-05506R DeatschWerks 800cc 42M-01-08006R DeatschWerks 1000cc 42M-01-10006R |
