TOMEI

Tomei FULL CAST TURBO OUTLET PIPE SR20DET(With EAI_

Tomei FULL CAST TURBO OUTLET PIPE SR20DET(With EAI_

SKU: 423003
£326.50
£326.50
Sale Sold out
Tax included.

Some items may take 3-5 days to ship.
Precise CNC machine finish!

The previous model has been fully brushed up for even better overall performance.
The all new full-lost-wax process provides not just the beautiful appearance, but also makes it whole lot stronger and eliminates cracks in welding beads.

PRODUCT INFO

APPLICATION TYPE P/N NOTE
SR20DET PS13/RPS13 w/ EAI 423003 Compatible Ex-Manifold:TOMEI EXPREME or S14 type
w/o EAI 423004
S14/S15

FEATURE / SPEC

TOMEI STD
With EAI Without EAI PS13 S15
MATERIAL SUS304 STEEL
MFG PROCESS LOST WAX CASTED STEEL
EXIT DIA. Φ72 Φ54
VOLUME 950cc 480cc 510cc
PIPE THK. 3.0mm 4.0～4.5mm 4.5～5.0mm
FLANGE THK. 11mm 8～14mm 8～15mm
WEIGHT 1.75kg 1.70kg 1.90kg 2.25kg


LH：W/ factory EAI　／　Center：W/O factory EAI　／　RH：TOMEI


■ Wide mouth design & Step-less connection with a 76.3mm front pipe.

Dumps the exhaust gas from the turbo straight onto the front pipe without reducing the flowing speed.

■ Compatible with EAI (P/N: 423003)

Factory turbo outlet pipe of PS13/RPS13 is equipped with an air inlet port for the EAI system.
Removing the EAI system may make it difficult to pass emission regulations and to make it street-legal in some countries.
TOMEI Full Cast Turbo Outlet Pipe is offered in 2 types for with or without EAI to suit each different application and different needs.

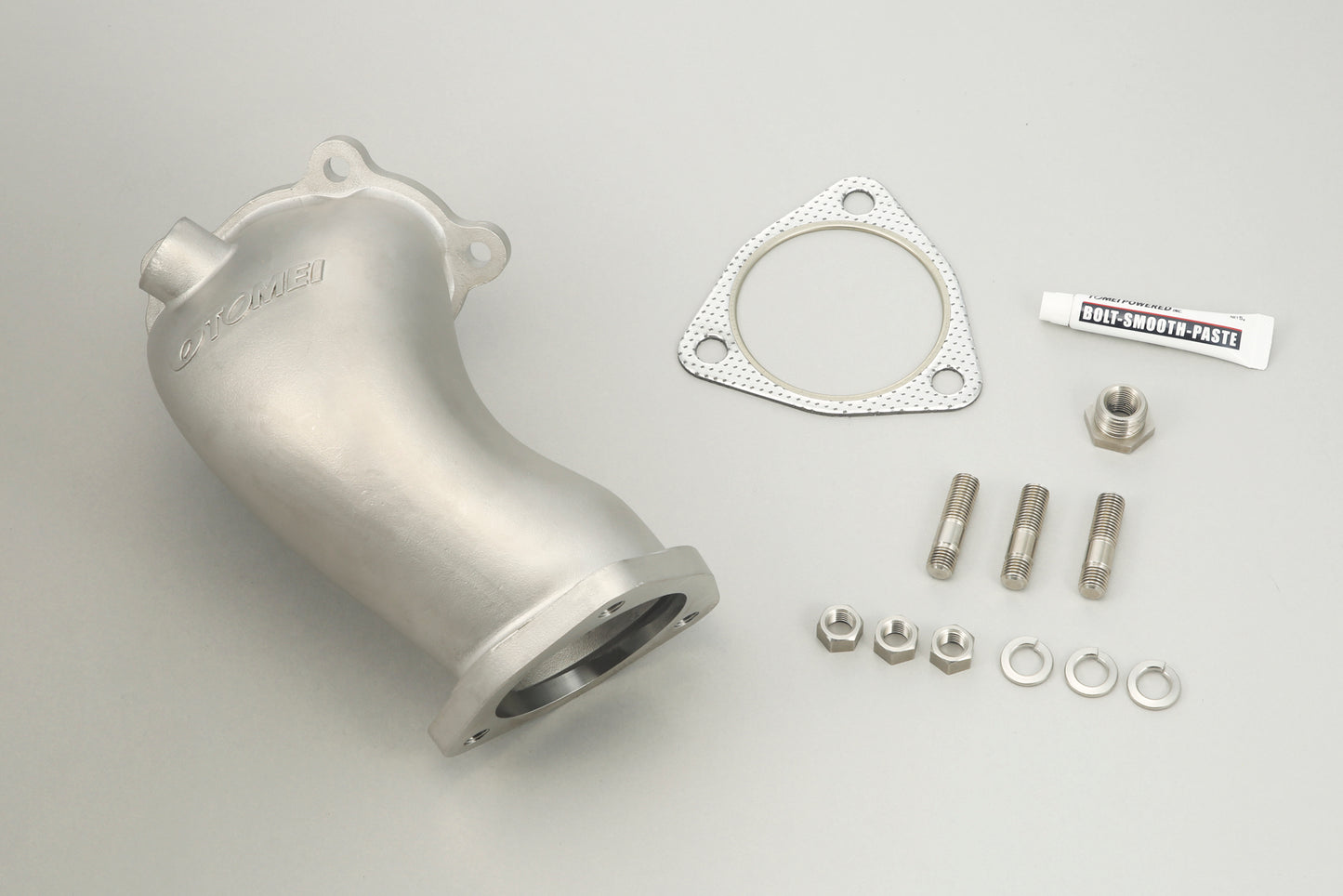

KIT CONTENTS


  • OUTLET PIPE
  • OUTLET GASKET（FRONT PIPE SIDE）
  • O2 SENSOR ADAPTER
  • NUT
  • SPRING WASHER
  • STUD BOLT

    • Only included 423004
  • WASHER
    • Only included 423004
  • HEXAGON BOLT
