Re-engineered to cover those highly tuned Nissan-A by the modern technologies.
All new design to win the race.
PRODUCT INFO
| APPLICATION | P/N | NOTES | |
|---|---|---|---|

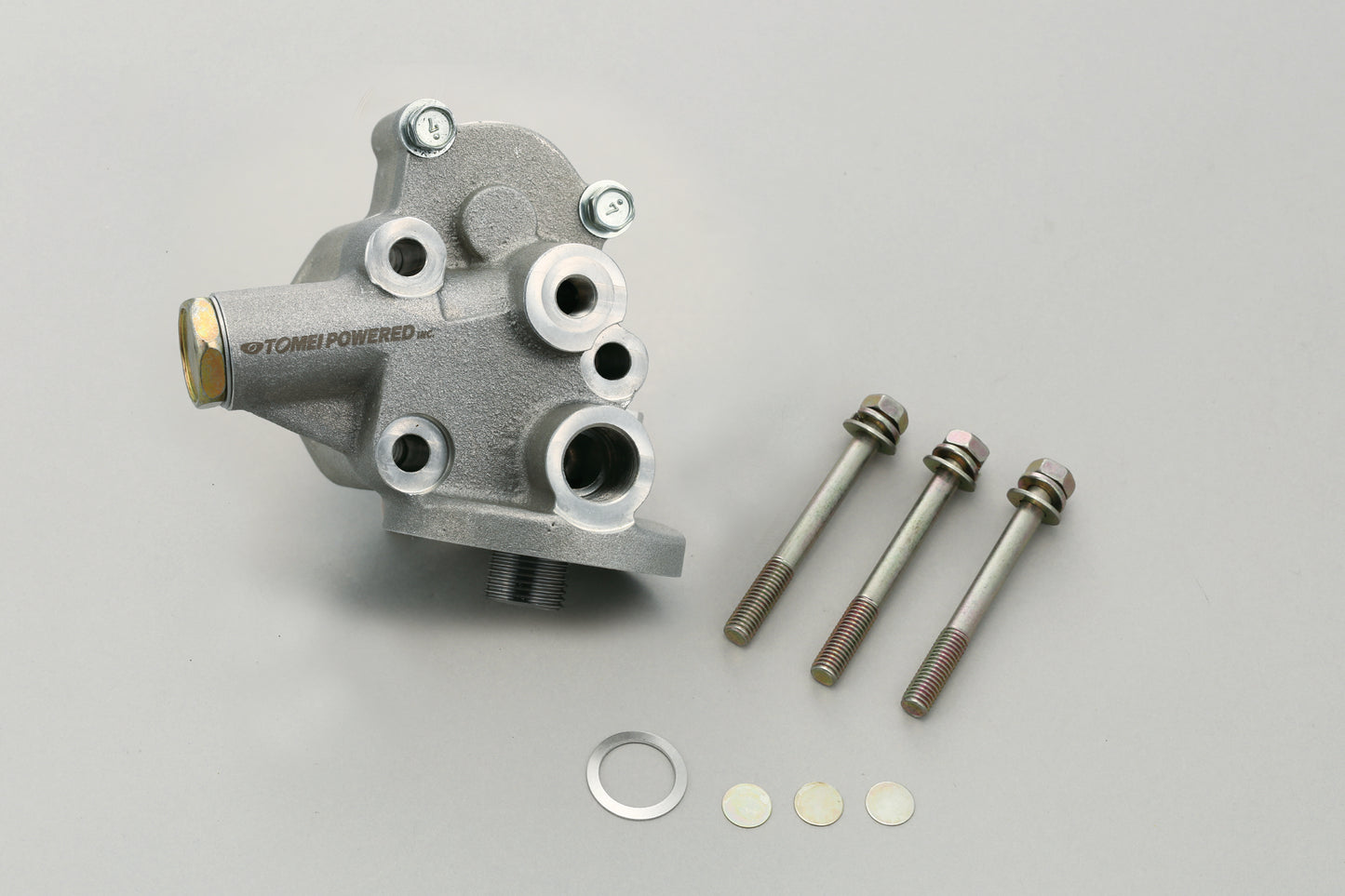

| A12/A13 | 194014 | Fittings for oil pressure gauge or oil cooler are not included in the kit. |
FEATURE / SPEC
| TOMEI | ||
|---|---|---|
| Material | SCM435 | |
| Fitting size | for Oil pressure gauge | PT1/8 |
| for Oil cooler | M18-P1.5 | |
| Gear thickness | 20mm | |
| Oil Flow Rate | 1.17x(*Compared to stock options) | |
・The drive gear shaft is held both at the pump case side and at the cover side.
・The thick 20mm gear significantly increases the flow rate.
・Easy installation, no need of backset adjustment of the gear with the o-ring sealing design.
DATA
【Oil pressure data (reference)】
*This data is reference only. Actual value will vary depending on oil spec, temp and other factors.
*Numerical values of oil pressure will vary depending on ambient temperature.
*This data is reference only. Actual value will vary depending on oil spec, temp and other factors.
*Numerical values of oil pressure will vary depending on ambient temperature.
