Stabilize the oil supply by the multi-plated structure!
The upper block-stiffening part and the lower oil-baffling part together help the stable oil supply all the times by keeping the oil from moving around too much.
【STD (w/o TOMEI baffle kit)】
The oil jumps up towards the block side along with the oil pan shape that will cause to cut the oil supply and lower the oil pressure.
【TOMEI baffle kit】
The upper plate blocks the oil jumping and keeps the oil in the oil pan that ensures the stable oil supply under any condition.
【STD (w/o TOMEI baffle kit)】
The oil moves around due to the strong G-force towards the front, rear, left and right that causes air cavitation in the oil line.
【TOMEI baffle kit】
The lower plate keeps the oil, that is kept in the oil pan by the upper plate, in the bottom of the oil pan where the oil pickup is.
During hard acceleration, deceleration and cornering, the sudden change in inertial forces will cause the oil to jump and move around too much which causes the oil move away from the oil pickup and in turn cuts oil supply to the engine.
The TOMEI baffle plate is designed to prevent this problem from happening under any situation by the multi-plated structure and help the stable oil supply at all times.

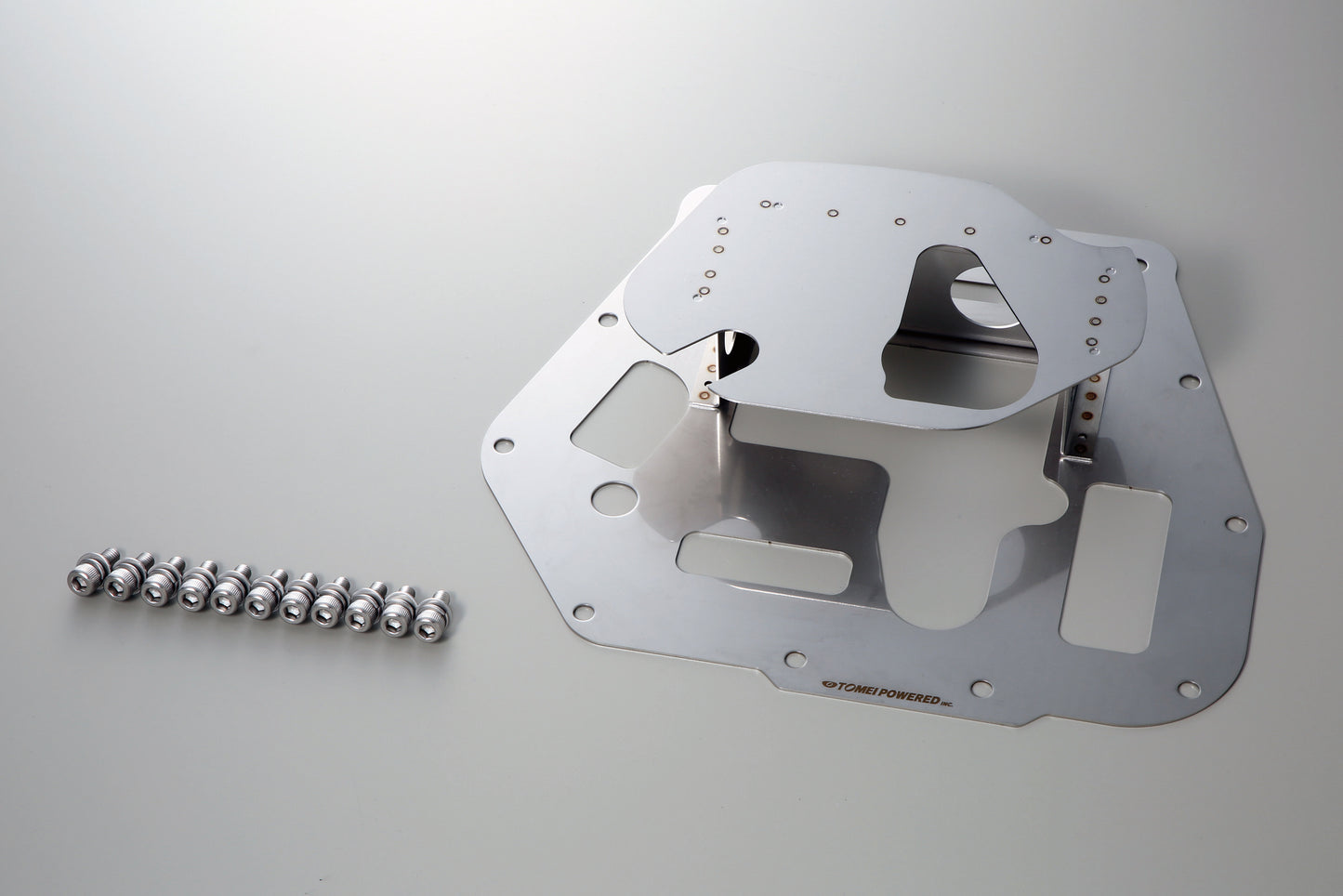

PRODUCT INFO
| APPLICATION | P/N | NOTES | ||
|---|---|---|---|---|
| TOYOTA GR86 SUBARU BRZ |
FA24DI | 194017 | ・Baffle ASSY ・Bolts included. |
|
FEATURE / SPEC
| MATERIAL | PLATE THICKNESS | WEIGHT |
|---|---|---|
| SUS304 | t=1.2mm | 580g |
■ UPPER PLATE CONTROLS OIL SIDEWAYS AND UPWARDS SPLASHING
The upper block-stiffening part and the lower oil-baffling part together help the stable oil supply all the times by keeping the oil from moving around too much.
【STD (w/o TOMEI baffle kit)】
The oil jumps up towards the block side along with the oil pan shape that will cause to cut the oil supply and lower the oil pressure.
【TOMEI baffle kit】
The upper plate blocks the oil jumping and keeps the oil in the oil pan that ensures the stable oil supply under any condition.
■ The lower plate keeps the oil at the oil pickup
【STD (w/o TOMEI baffle kit)】
The oil moves around due to the strong G-force towards the front, rear, left and right that causes air cavitation in the oil line.
【TOMEI baffle kit】
The lower plate keeps the oil, that is kept in the oil pan by the upper plate, in the bottom of the oil pan where the oil pickup is.
