Protects the engine under the strong G-force on track!
【IMAGE】
During hard acceleration, deceleration and cornering, the sudden change in inertial forces will cause the oil to jump and move around too much. When this happens, the oil can move away from the oil pickup, which then in turn cuts oil supply to the engine.

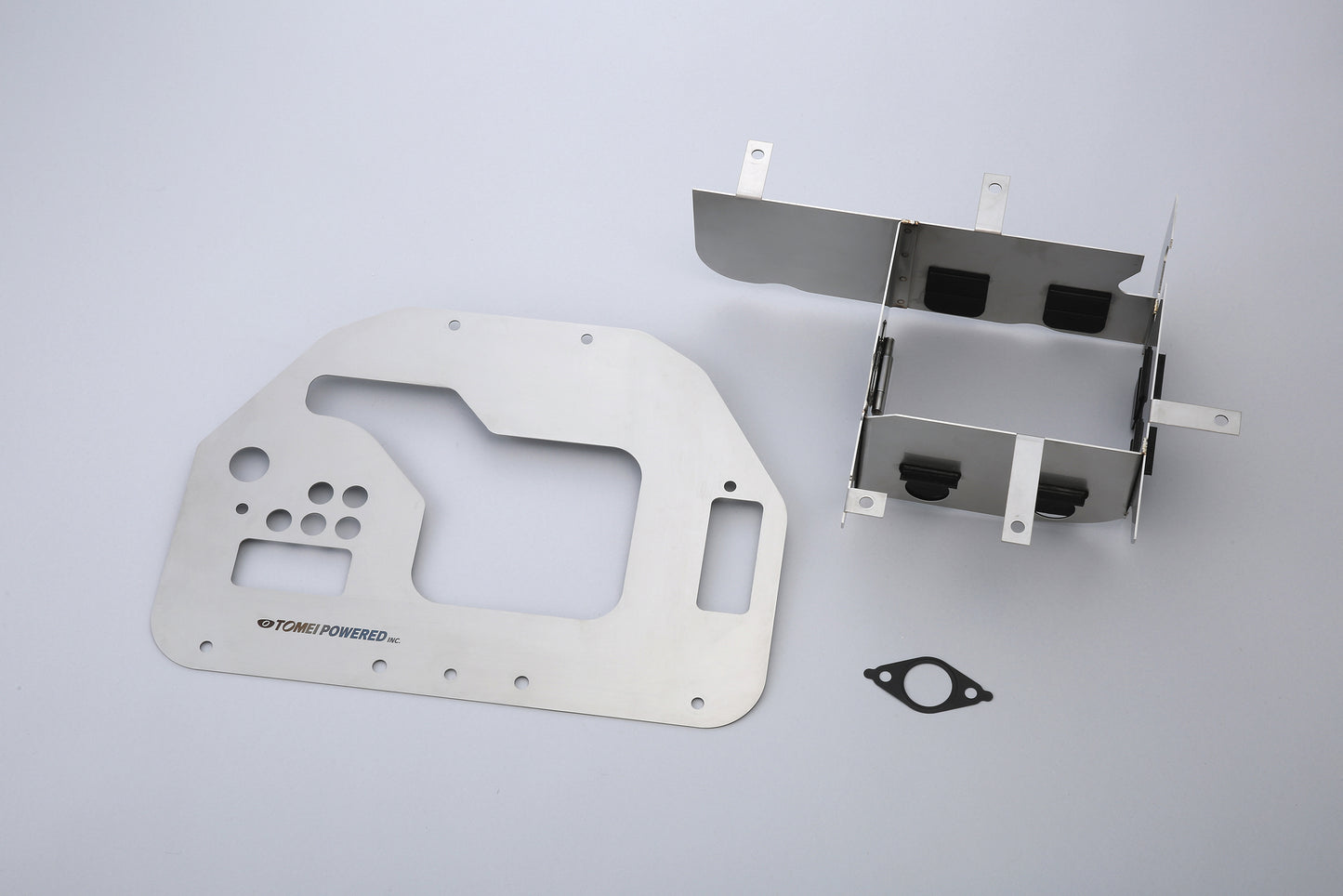

The TOMEI baffle plate is designed to prevent this problem from happening especially when the car is used for competition use.
PRODUCT INFO
| TYPE | APPLICATION | P/N | NOTE | ||
|---|---|---|---|---|---|
| TYPE F1 | JZS161/JZX110/JZX110W JZS171/JZS171W |
194005 | This product has been designed to fit Toyota P/N:12102-46040 (OIL PAN NO.2) and P/N: 15104-46070 (STRAINER ASSY) only. （※This product only fits front sump models.） |
||
| TYPE F2 | JZS147/JZX100/JZX90 | 194008 | This product has been designed to fit Toyota P/N:12102-46011 (OIL PAN NO.2) and P/N: 15104-46060 (STRAINER ASSY) only. （※This product only fits front sump models.） |
||
| TYPE R | JZA80/JZZ30 | 194009 | This product has been designed to fit Toyota P/N:12102-46031 (OIL PAN NO.2) and P/N: 15104-46030 (STRAINER ASSY) only. （※This product only fits Rear sump models.） |
||
*Make sure the oil pan and oil strainer you are installing this product with are the right application prior to the installation.
*The Lower Baffle of this kit will interfere with the oil level sensor float.Please note that this product has been designed to use without the oil level sensor.
FEATURE / SPEC
 |
■ Keeps the oil from sloshing away from the oil pickup during hard cornering.It allows the one way movement of oil and can keeping it where the oil pickup is at all times by preventing oil deviation with the use of swing plates on hinges. |
 |
■ Competition proven, true performance.Designed based on the knowledge and experience we acquired in Formula Drift series. It’s well proven in the real competition to increase reliability of the whole engine by helping to properly lubricate the engine at all times. |
SPEC
| TYPE F1 | TYPE F2 | TYPE R | |
|---|---|---|---|
| MATERIAL | SUS304 | SUS304 | SUS304 |
| UPPER BAFFLE THICKNESS | 1.2mm | 1.2mm | 1.2mm |
| LOWER BAFFLE THICKNESS | 1.2mm | 1.2mm | 1.2mm |
| WEIGHT |
UPPER : 475g LOWER : 635g (Including rubber valve) |
UPPER : 490g LOWER : 600g (Including rubber valve) |
UPPER : 410g LOWER : 610g (Including rubber valve) |
