TOMEI

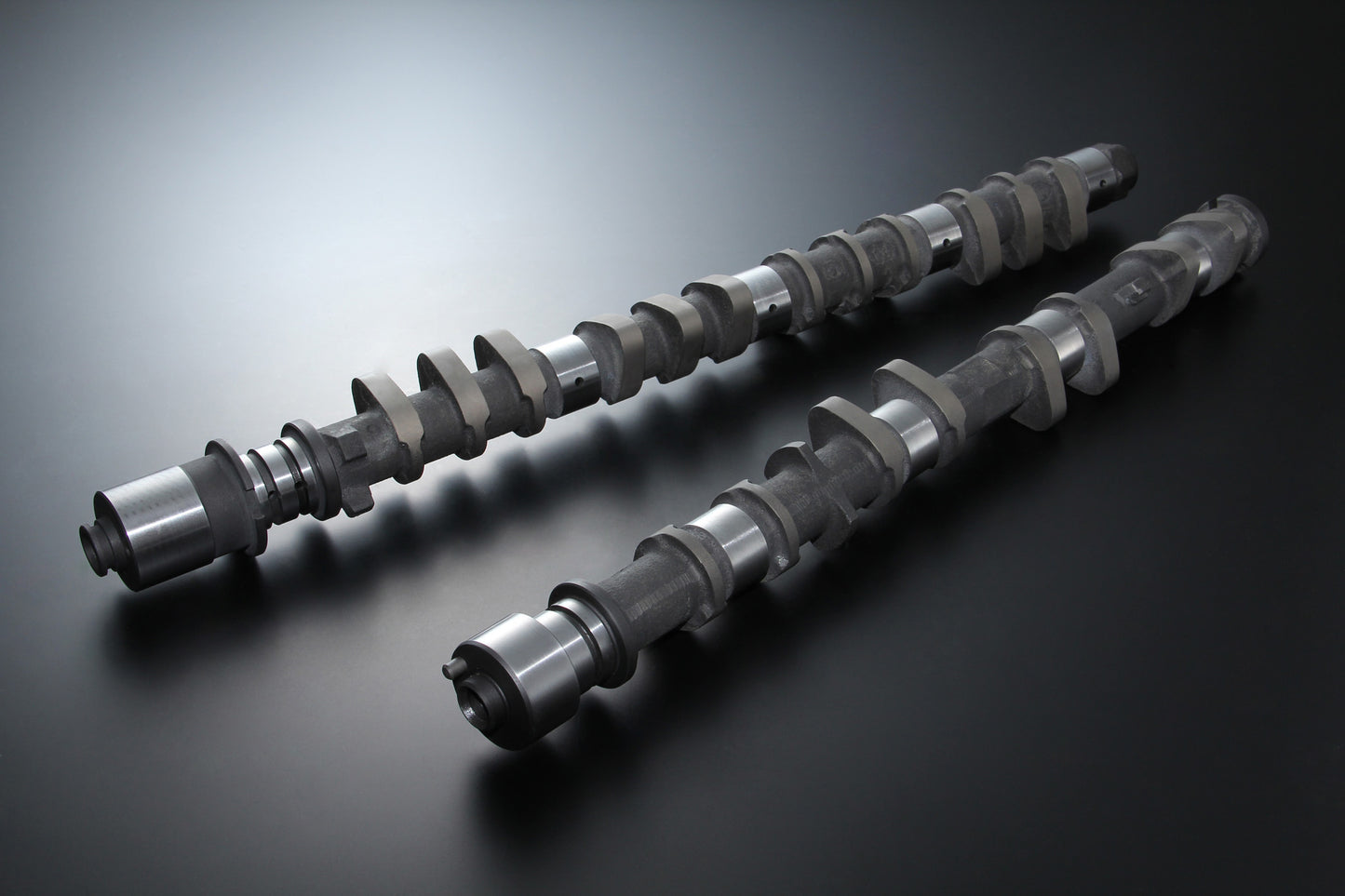

Tomei PROCAM 4AG 4VALVE IN 264-8.15mm

Tomei PROCAM 4AG 4VALVE IN 264-8.15mm

SKU: 1493264081
£240.99
£240.99
Sale Sold out
Taxes included. Shipping calculated at checkout.

Some items may take 3-5 days to ship.

PRODUCT INFO



APPLICATION DURATION（°） MAX CAM LIFT（mm） IN/EX P/N
ENGINE MODEL IN EX IN EX
4AG 4VALVE 264 264 8.15 8.15 IN & EX Set 143056
5VALVE 264 256 9.00 9.00 IN & EX Set 143073

※PRESET VALVE TIMING
※STOCK VALVE SPRING COMPATIBLE



APPLICATION DURATION（°） MAX CAM LIFT（mm） IN/EX P/N NOTE
ENGINE MODEL
4AG 4VALVE 264 8.15 IN 1493264081 PONCAM
EX 1494264081 PONCAM
288 10.00 IN 1491288100 Inner Shim Type
EX 1492288100
296 10.50 IN 1492296105
EX
304 11.00 IN 1492304110
EX
5VALVE 264 9.00 IN 1493264090 PONCAM
256 EX 1494256090 PONCAM

* Inner Shim Type Recommended Valve Timing IN/EX 100°

FEATURE / SPEC



Plenty of response, the true NA feeling all the way up to redline.Retains smooth idle.

【4VALVE】
・Increased compression ratio for increased performance.
・Compatible with stock, or even a 4 throttle setup.

【5VALVE】
・Performance throughout.
・VVT Compatible.


The pursuit of the optimal profile
The profile of these camshafts were designed to aim for maximum efficiency of the valve opening and closing duration. These PROCAMS were designed with a quicker valve opening time and a gentle closing time to provide stability to the valve seat rings.
This lightens the stress applied to the all the surrounding components of the valvetrain and decrease unwanted noises.

Accommodates to high RPM
Each and every profile with varying duration and lift listed below are designed to perform the best during 4,000~10,000 RPMs.
■ SPEC
ENGINE MODEL Duration（°） Max Cam lift (mm) IN/EX Max Valve lift （mm） Cold Valve Clearance
（mm）［±0.01］		 Valve Timing Centerline
(Deg)		 Base circle NOTE
4AG 4VALVE 264 8.15 IN 7.95 0.20 105 28.0 PONCAM
EX 1.90 0.25 110 PONCAM
288 10.00 IN 9.77 0.23 105 27.5 Inner Shim Type
EX 9.75 0.25 110
296 10.50 IN 10.27 0.23 109
EX 10.25 0.25 110
304 11.00 IN 10.77 0.23 109
EX 10.75 0.25 110
5VALVE 264 9.00 IN 8.76 0.24 120 32.0 PONCAM
256 EX 8.56 0.44 110 PONCAM


Theme of TOMEI CAMSHAFT

Asymmetrical G-Controlled Profile

When opening the intake valve during high acceleration the G from the camshaft requires to send as much mixture to the cylinder in the shortest time possible. However if the speed is too high it can damaged the Valves, Valve Seats and Valve Springs if the Acceleration G is too high. The Asymmetrical profile design given to the camshafts will allow the Intake and Exhaust Valves to fulfill the target requirement with the wider duration and high lift without damaging the Valve System.

Maximizing the Valves Efficiency



The general purpose of engine tuning is to change the torque characteristics of the engine by changing the cams duration timing and cam lift amount for maximum torque and horse power. However tuning the engine is not only based on that. When going into finer details by maximizing the Valves efficiency is not just about timing and height lift but to also maximize the intake efficiency. The high valve lift allows huge amounts of air in but at the same time it mechanically damages the valve train and gains added friction loss. Longer cam durations and big cam lifts give deliver more power at higher engine speeds but it also gives a rough idle and at low engine speeds. Tomei engineers worked hard to produce camshafts that will deliver a well balanced profile at 1.3-1.5 times more than the stock camshaft.

Quality Control

Every camshaft is carefully built through these production processes. Plus, strict inspection will be given to them and only the highest quality products are shipped.

Surface Coating


Coating the surface of camshaft with manganese phosphate in order to protect from damage even when the camshaft has not lubricated yet. This has done by steeping press process that produces 0.5mm to 15 micromillimeter thin of manganese phosphate coating on its surface to prevent from direct contact with other metal parts while realizing smooth operation.

CNC Super Precise High Speed Grinding



The combination of a ultra high-speed main bearing and diamond grindstone is controlled by the computer. By using the same special-purpose machine as an automaker, high precision grinding is realized though in 1/3 period of time. Consequently, incredible accuracy of profile and remarkable price were realized at the same time.

Wavy Groove Finish by Oscillation Grinding

Wavy groove is curved to the cam profile surface by oscillation during cam grinding process. Oil pool that is formed on the cam profile surface reduces a friction loss and prevents locking.
