TOMEI

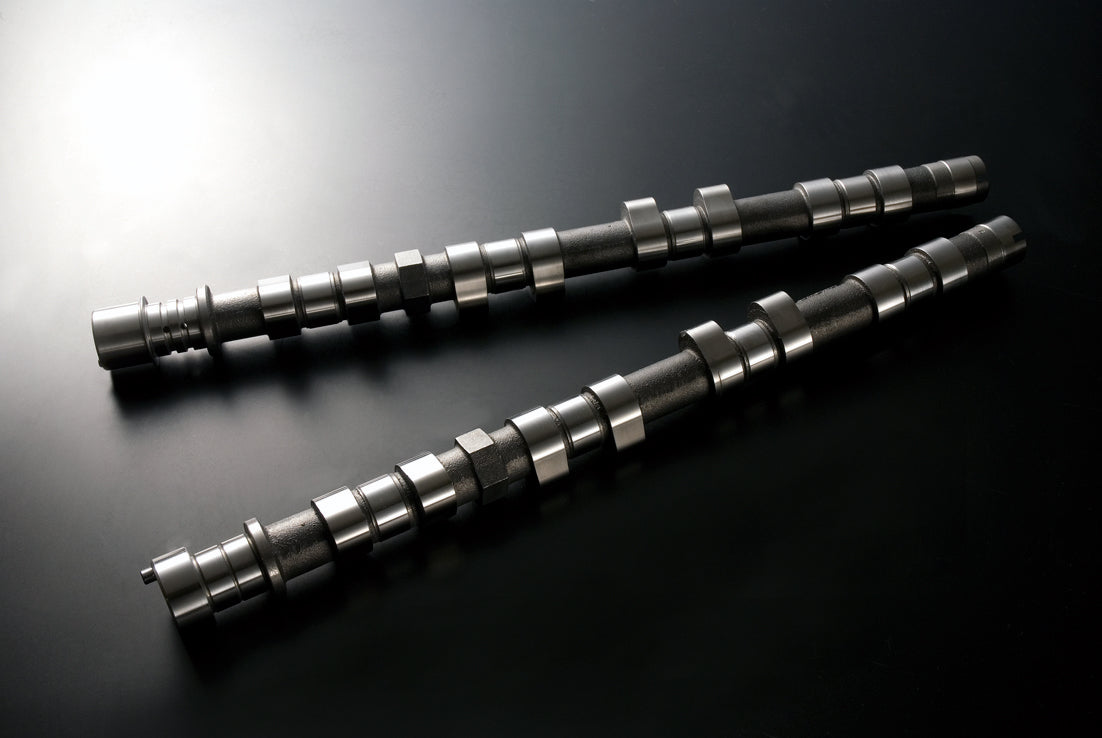

Tomei PROCAM 4G63 SOLID EVO4-6 EX 270-11.5mm

Tomei PROCAM 4G63 SOLID EVO4-6 EX 270-11.5mm

SKU: 1457270115
Regular price £240.99
Regular price Sale price £240.99
Sale Sold out
Taxes included.

Some items may take 3-5 days to ship.

PRODUCT INFO



TYPE APPLICATION DURATION(°) MAX VALVE LIFT(mm) IN/EX P/N NOTE
ENGINE MODEL IN EX IN EX
4G63 EVO I - III 260 260 10.70 10.20 IN & EX Set 143032
EVO IV - VI 143033
EVO VII-VIII
Air Trex
143038 GT-A is available
EVO IX 143058
R EVO IV - VI 270 270 10.70 10.20 IN & EX Set 143066
EVO VII-VIII 143067
EVO IX 143068

※PRESET VALVE TIMING
※STOCK VALVE SPRING COMPATIBLE
※MIVEC is available for EVO9




APPLICATION TYPE DURATION(°) MAX VALVE LIFT(mm) IN/EX P/N NOTE
4G63 EVO I - III
エクリプス
LASH 260 10.70 IN 1451260107 Same as PONCAM
10.20 EX 1452260102 Same as PONCAM
EVO IV - VI 260 10.70 IN 1453260107 Same as PONCAM
10.20 EX 1454260102 Same as PONCAM
270 10.70 IN 1453270107 Same as PONCAM
10.20 EX 1454270102 Same as PONCAM
11.50 IN 1453270115 Requires Tomei Valve Springs
EX 1454270115
280 IN 1453280115
EX 1454280115
290 IN 1453290115
EX 1454290115
EVO VII-VIII 260 10.70 IN 1453260107 Same as PONCAM
10.20 EX 1455260102 Same as PONCAM
270 10.70 IN 1453270107 Same as PONCAM
10.20 EX 1455270102 Same as PONCAM
11.50 IN 1453270115 Requires Tomei Valve Springs
EX 1455270115
280 IN 1453280115
EX 1455280115
290 IN 1453290115
EX 1455290115
EVO IX 260 10.70 IN 1462260107 Same as PONCAM
10.20 EX 1463260102 Same as PONCAM
270 10.70 IN 1462270107 Same as PONCAM
10.20 EX 1463270102 Same as PONCAM
11.50 IN 1462270115 Requires Tomei Valve Springs
EX 1463270115
280 IN 1462280115
EX 1463280115
290 IN 1462290115
EX 1463290115
EVO I - III SOLID 270 11.50 IN 1459270115 Requires Tomei Valve Springs
EX 1460270115
280 IN 1459280115
EX 1460280115
EVO IV - VI 270 11.50 IN 1456270115
EX 1457270115
280 IN 1456280115
EX 1457280115
290 IN 1456290115
EX 1457290115
EVO VII-VIII 270 11.50 IN 1456270115
EX 1458270115
280 IN 1456280115
EX 1458280115
290 IN 1456290115
EX 1458290115
EVO IX 270 11.50 IN 146A270115
EX 146B270115
280 IN 146A280115
EX 146B280115
290 IN 146A290115
EX 146B290115

※Solid Pivots and Valve Springs are required for Solid camshafts (sold separately).

FEATURE / SPEC



STD PONCAM PONCAM TYPE-R
RECOMMENDED SETUP CATALYTIC CONVERTER Sports Catalytic Converter or Straight Pipe Sports Catalytic Converter or Straight Pipe
TURBO Stock Stock or Larger Bolt On Type



■ SPEC
ENGINE Type Duration Max Cam lift (mm) IN/EX Max Valve lift (mm) Cold Valve Clearance
(mm)[±0.01]
Valve Timing Centerline
(Deg)
Base circle Note
4G63 EVO I-III
Lash
260 6.17 IN 10.70 110 30 PPNCAM
5.88 EX 10.20 115 PPNCAM
EVO IV-VI TM
Lash
6.17 IN 10.70 110 PPNCAM
5.88 EX 10.20 115 PPNCAM
EVO VII-VIII
Lash
6.17 IN 10.70 110 PPNCAM
5.88 EX 10.20 115 PPNCAM
EVO IX
Lash
6.17 IN 10.70 130 PPNCAM
5.88 EX 10.20 110 PPNCAM
EVO IV-VI TM
Lash
270 6.17 IN 10.70 105 PPNCAM
5.88 EX 10.20 115 PPNCAM
EVO VII-VIII
Lash
6.17 IN 10.70 105 PPNCAM
5.88 EX 10.20 115 PPNCAM
EVO IX
Lash
6.17 IN 10.70 130 PPNCAM
5.88 EX 10.20 110 PPNCAM
EVO IV-VI TM
Lash
6.65 IN 11.50 110
EX 115
EVO VII-VIII
Lash
IN 110
EX 115
EVO IX
Lash
IN 130
EX 110
EVO I-III
Solid
6.75 IN 0.12 110
EX 0.14 115
EVO IV-VI TM
Solid
IN 0.12 110
EX 0.14 115
EVO VII-VIII
Solid
IN 0.12 110
EX 0.14 115
EVO IX
Solid
IN 0.12 130
EX 0.14 110
EVO IV-VI TM
Lash
280 6.65 IN 11.50 110
EX 115
EVO VII-VIII
Lash
IN 110
EX 115
EVO IX
Lash
IN 130
EX 110
EVO I-III
Solid
6.75 IN 0.12 110
EX 0.14 115
EVO IV-VI TM
Solid
IN 0.12 110
EX 0.14 115
EVO VII-VIII
Solid
IN 0.12 110
EX 0.14 115
EVO IX
Solid
IN 0.12 130
EX 0.14 110
EVO IV-VI TM
Lash
290 6.75 IN 11.50 110
EX 115
EVO VII-VIII
Lash
IN 110
EX 115
EVO IX
Lash
IN 130
EX 110
EVO IV-VI TM
Solid
IN 0.12 110
EX 0.14 115
EVO VII-VIII
Solid
IN 0.12 110
EX 0.14 115
EVO IX
Solid
IN 0.12 130
EX 0.14 110


Theme of TOMEI CAMSHAFT

Asymmetrical G-Controlled Profile

When opening the intake valve during high acceleration the G from the camshaft requires to send as much mixture to the cylinder in the shortest time possible. However if the speed is too high it can damaged the Valves, Valve Seats and Valve Springs if the Acceleration G is too high. The Asymmetrical profile design given to the camshafts will allow the Intake and Exhaust Valves to fulfill the target requirement with the wider duration and high lift without damaging the Valve System.

Maximizing the Valves Efficiency



The general purpose of engine tuning is to change the torque characteristics of the engine by changing the cams duration timing and cam lift amount for maximum torque and horse power. However tuning the engine is not only based on that. When going into finer details by maximizing the Valves efficiency is not just about timing and height lift but to also maximize the intake efficiency. The high valve lift allows huge amounts of air in but at the same time it mechanically damages the valve train and gains added friction loss. Longer cam durations and big cam lifts give deliver more power at higher engine speeds but it also gives a rough idle and at low engine speeds. Tomei engineers worked hard to produce camshafts that will deliver a well balanced profile at 1.3-1.5 times more than the stock camshaft.

Quality Control

Every camshaft is carefully built through these production processes. Plus, strict inspection will be given to them and only the highest quality products are shipped.

Surface Coating


Coating the surface of camshaft with manganese phosphate in order to protect from damage even when the camshaft has not lubricated yet. This has done by steeping press process that produces 0.5mm to 15 micromillimeter thin of manganese phosphate coating on its surface to prevent from direct contact with other metal parts while realizing smooth operation.

CNC Super Precise High Speed Grinding



The combination of a ultra high-speed main bearing and diamond grindstone is controlled by the computer. By using the same special-purpose machine as an automaker, high precision grinding is realized though in 1/3 period of time. Consequently, incredible accuracy of profile and remarkable price were realized at the same time.

Wavy Groove Finish by Oscillation Grinding

Wavy groove is curved to the cam profile surface by oscillation during cam grinding process. Oil pool that is formed on the cam profile surface reduces a friction loss and prevents locking.
