Tomei RB25DET T440M Turbo Kit For Nissan Skyline R33 GTST R34 GTT Laurel C34 C35 Stagea WC34
Tomei RB25DET T440M Turbo Kit For Nissan Skyline R33 GTST R34 GTT Laurel C34 C35 Stagea WC34
Regular price
£1,699.00
Regular price
Sale price
£1,699.00
Unit price
per
Taxes included.
Shipping calculated at checkout.
Some items may take 3-5 days to ship.
Couldn't load pickup availability

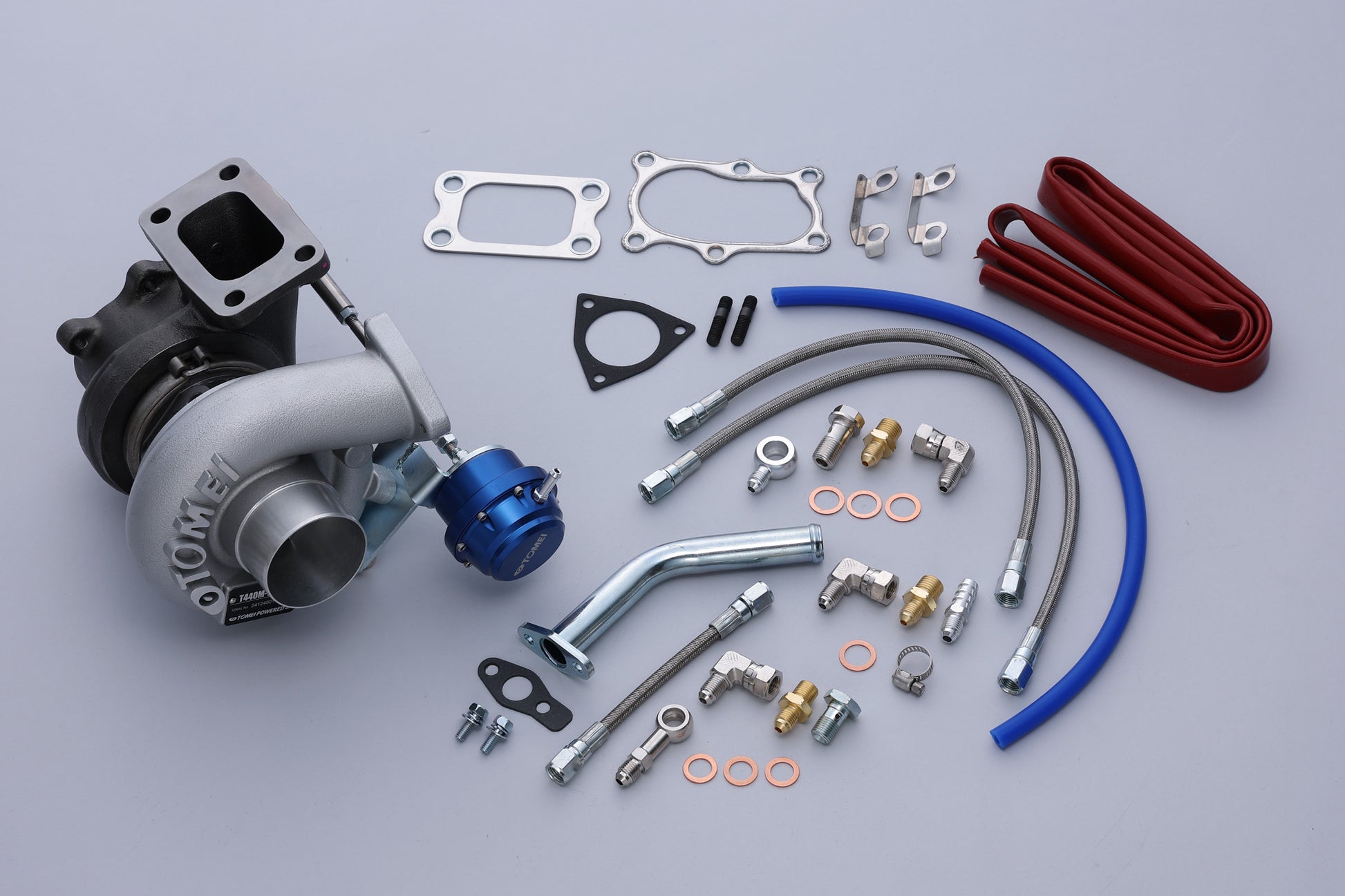

T440M TURBO KIT for RB25DET
TURBO CHARGER
Seamless power straight to the high RPM range that a stock turbo boost-up can't reach!
Refined the balance of the housing, turbine wheel and the wastegate actuator to make RB25 even more enjoyable and user-friendly compared to the previous model.
While improving low-to-mid-range response, also focused on enhancing mid-to-high RPM characteristics, where the stock turbo is known to fall short.
The all-new billet compressor wheel further optimizes spooling efficiency.
PRODUCT INFO
| APPLICATION | TYPE | P/N | JPY | NOTES |
|---|---|---|---|---|
| R33/R34 C34/C35/WC34 RB25DET |
T440M | 173033 | ￥248,000 |
FEATURE / SPEC
NEW HOUSING FOR MORE EFFICIENCY
Redeveloped from the material for more efficiency to convert the energy straight to power with better lubrication and cooling.
FLOATING METAL |
Reinforced actuator |
|
 |
 |
|
| High quality floating journal bearing at the center shaft. | Remarkable stability under high boost. |
BOLT-ON APPLICATION
The ARMS series turbo kits all come supplied with all the required gaskets and fitting, no modifications required.
1 YEAR WARRANTY
The T400M/T440M Turbo Kit comes with a 1 year limited warranty after purchase.
SPEC
COMPRESSOR WHEEL DATA
| TRIM | INNER DIA. | OUTER DIA. | BLADES | |
|---|---|---|---|---|
| RB25DET STD | 53 | 48.5 | 66.5 | 6/6 |
| TOMEI T440M | 56 | 56.2 | 75.0 | 6/6 |
The all new, forged aluminum billet compressor wheel increases even more efficiency and at the same time reduces surging that is one of the well known problems on tuning especially with AVCS applications.TURBINE WHEEL DATA
| TRIM | OUTER DIA. | EXIT DIA. | BLADES | |
|---|---|---|---|---|
| RB25DET STD | 70 | 43.0 | 51.5 | 9 |
| TOMEI T440M | 77.4 | 54.1 | 61.5 | 11 |
DATA
GREAT LOW-MID CHARACTERISTIC
Improved low-mid RPM range for a much better driving experience on the street. Designed to reduce surging and make the power curve as linear with engine RPM as possible for a easy, smooth and stress-free driving.
SETTING GUIDE
| STANDARD ENGINE | TUNED ENGINE (e.g. Forged Pistons) |
|
|---|---|---|
| BOOST SETTING | 1.0～1.2kgf/cm2(14.2～17.1psi) With Boost Controller |
1.5kgf/cm2 (22.0psi) With Boost Controller |
| ACTUATOR SETTING | Not Required since a boost controller is used. |
Not Required since a boost controller is used. |
| POWER (APPROX) | 350～370PS | 400～440PS |
| INJECTORS | 550cc or more | 550cc or more |
| FUEL PUMP | 240L/h or more（F/Pressure 3kg/cm2） Recommended: TOMEI 255L/h |
240L/h or more（F/Pressure 3kg/cm2） Recommended: TOMEI 255L/h |
| FUEL PRESSURE REGULATOR |
Adjustable Regulator required. Recommended: TOMEI TYPE S |
Adjustable Regulator required. Recommended: TOMEI TYPE S |
| PLUGS | Higher Heat Type required. Suitable Heat Range: Number 8~9 |
Higher Heat Type required. Suitable Heat Range: Number 8~9 |
| BLOW OFF VALVE | Upgraded Type is required. (Must be Closed-Return type) |
Upgraded Type is required. (Must be Closed-Return type) |
| CAMSHAFTS | STD ~ High Flow Type (Preferable) Recommended: TOMEI PONCAM |
Larger Cam Duration is required Recommended: TOMEI PONCAM |
| EXHAUST MANIFOLDS | STD | STD ~ High Flow Type (Preferable) |
| OUTLET/ FRONT PIPE | STD ~ High Flow Type Recommended: TOMEI OUTLET |
High Flow Type is required. Recommended: TOMEI OUTLET |
| MUFFLER | High Flow Type is required. Recommended Main Pipe : 80~90mm |
High Flow Type is required. Recommended Main Pipe : 80~90mm |
| CATALYTIC CONVERTER | High Flow Type is required. Recommended: Sport Cat |
High Flow Type is required. Recommended: Sport Cat |
| HEAD GASKET | Upgraded Type is required. Recommended: TOMEI Metal Gasket |
Upgraded Type is required. Recommended: TOMEI Metal Gasket |
| ENGINE MANAGEMENT | ECU Resetting is required. | ECU Resetting is required. |
| INTERCOOLER | STD ~ Upgraded Type | Upgraded Type is required. |
| AIR CLEANER | Recommended: High Flow Type | Recommended: High Flow Type |
| SUCTION HOSE | STD ~ High Flow Type | High Flow Type is required. |
