Tomei SR22KIT 86.5mm RNN14 With Bearings

Tomei SR22KIT 86.5mm RNN14 With Bearings

SKU: 250007
£3,599.25
£3,599.25
Sale Sold out
Taxes included. Shipping calculated at checkout.

Some items may take 3-5 days to ship.

PRODUCT INFO

APPLICATION BORE P/N NOTES
RNN14
 φ86.5 221033
φ87.0 221034

【With Conrod Bearings Bundle Pack】

APPLICATION BORE P/N NOTES
RNN14
 φ86.5 250007
φ87.0 250008

* The conrod bearing option kit is supplied with the conrod bearings for the 1 engine application.

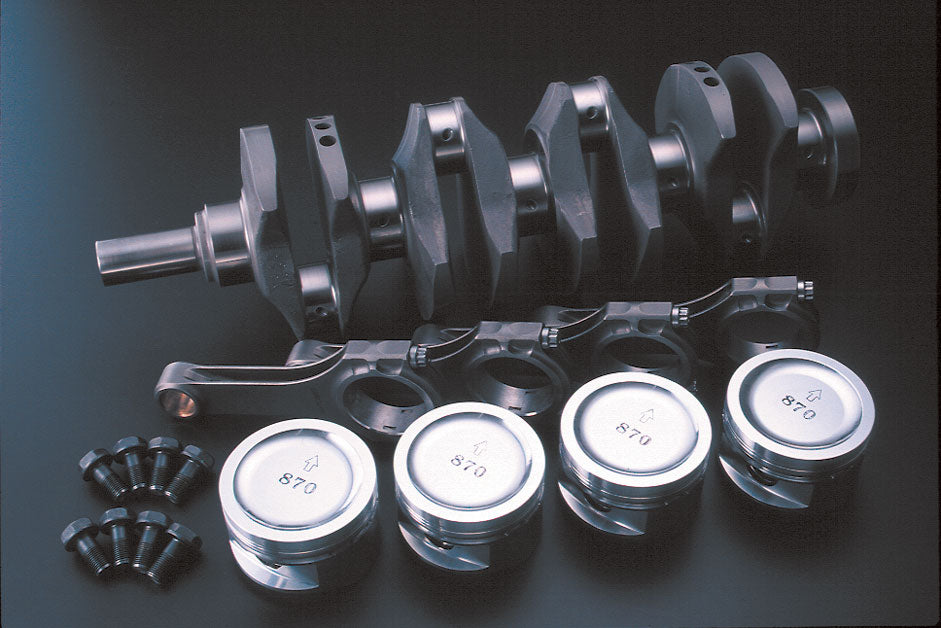

●Contents Forged special piston kit, Forged "full-counter" crankshaft, Forged H-beam con-rod, Special flywheel bolts, Flywheel modification
* The flywheel that will be used with this application will need modification.

FEATURE / SPEC

SPEC

PISTON

Bore
(Φ)		 Pin Dia
(Φ)		 Length
(mm)		 Recess Comp.Height
(mm)		 PistonCrownVolume
(cc)		 Weight
(g)		 Pin weight
(g)		 Total weight
(g)
86.5 22.0 60 × 29.5 18.0 323 113 436
87.0 × 18.0 329 442
Top ring B×T(mm) Second ring B×T(mm) Oil ring B×T(mm)
1.2×3.1 1.2×3.9 2.5×3.1

CRANKSHAFT

Stroke (mm) Weight (kg) STD Stroke (mm)
91.0 18.0 86.0

CONNECTING ROD

Conrod Conrod Bolt Conrod Bearing Material
Length
(mm)		 L.Diam×Length
(mm)		 S.Diam×Length
(mm)
 Bolt Size Height Under Neck
(mm)		 Inner Circum
(mm)		 Bearing Width
(mm)
136.3 φ51×22.8 φ22×22.8 3/8-24 40 48 17.0 SNCM439
DATA
ボア(φ) 86.0(STD) 86.5 87.0
排気量(cc) 1998 2138 2163

KIT WITH BEARINGS INCLUDED

Tomei has made an option to include their Competition Bearing Series product with our kits. All the engine internals are brought to static temperature (20 degrees Celcius) and blueprinted with 0.040~0.060mm clearance bearings.
This eliminates the measuring and blueprinting process for the customer, so the kit can be installed with less hassle.
