TOMEI
Tomei SR22KIT 87.0mm RNN14
Tomei SR22KIT 87.0mm RNN14
Regular price
£3,404.90
Regular price
Sale price
£3,404.90
Unit price
/
per
Taxes included.
Shipping calculated at checkout.
Some items may take 3-5 days to ship.
Couldn't load pickup availability
PRODUCT INFO
| APPLICATION | BORE | P/N | NOTES | |
|---|---|---|---|---|
| RNN14 |
φ86.5 | 221033 | ||
| φ87.0 | 221034 |
【With Conrod Bearings Bundle Pack】
| APPLICATION | BORE | P/N | NOTES | |
|---|---|---|---|---|
| RNN14 |
φ86.5 | 250007 | ||
| φ87.0 | 250008 |

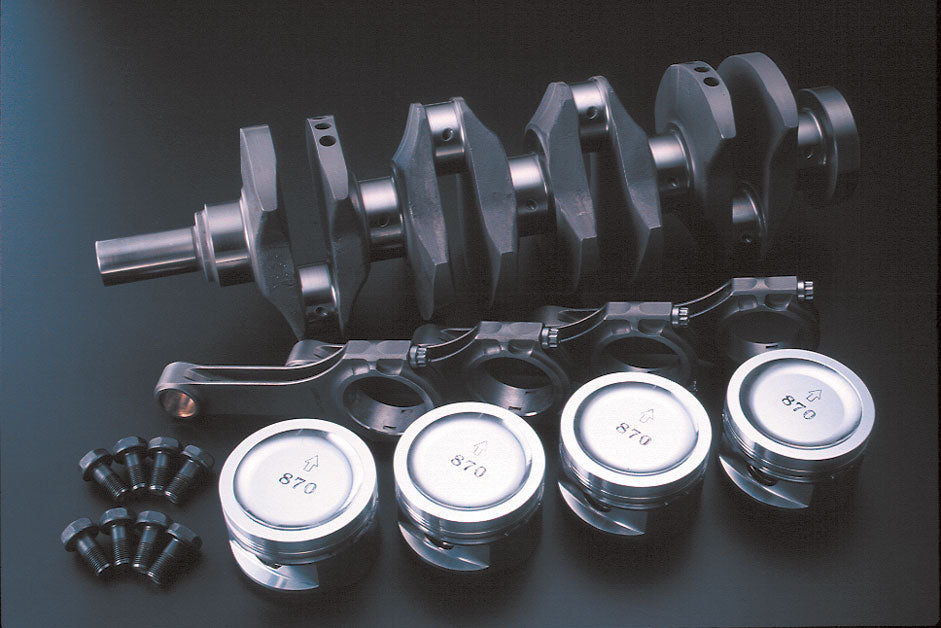

●Contents Forged special piston kit, Forged "full-counter" crankshaft, Forged H-beam con-rod, Special flywheel bolts, Flywheel modification
* The flywheel that will be used with this application will need modification.
FEATURE / SPEC
SPEC
PISTON
|
Bore (Φ) |
Pin Dia (Φ) |
Length (mm) |
Recess |
Comp.Height (mm) |
PistonCrownVolume (cc) |
Weight (g) |
Pin weight (g) |
Total weight (g) |
|---|---|---|---|---|---|---|---|---|
| 86.5 | 22.0 | 60 | × | 29.5 | 18.0 | 323 | 113 | 436 |
| 87.0 | × | 18.0 | 329 | 442 |
| Top ring B×T(mm) | Second ring B×T(mm) | Oil ring B×T(mm) |
|---|---|---|
| 1.2×3.1 | 1.2×3.9 | 2.5×3.1 |
CRANKSHAFT
| Stroke (mm) | Weight (kg) | STD Stroke (mm) |
|---|---|---|
| 91.0 | 18.0 | 86.0 |
CONNECTING ROD
| Conrod | Conrod Bolt | Conrod Bearing | Material | ||||
|---|---|---|---|---|---|---|---|
|
Length (mm) |
L.Diam×Length (mm) |
S.Diam×Length (mm) |
Bolt Size |
Height Under Neck (mm) |
Inner Circum (mm) |
Bearing Width (mm) |
|
| 136.3 | φ51×22.8 | φ22×22.8 | 3/8-24 | 40 | 48 | 17.0 | SNCM439 |
DATA
| ボア(φ) | 86.0(STD) | 86.5 | 87.0 |
|---|---|---|---|
| 排気量(cc) | 1998 | 2138 | 2163 |
KIT WITH BEARINGS INCLUDED
Tomei has made an option to include their Competition Bearing Series product with our kits. All the engine internals are brought to static temperature (20 degrees Celcius) and blueprinted with 0.040~0.060mm clearance bearings.This eliminates the measuring and blueprinting process for the customer, so the kit can be installed with less hassle.
