TOMEI

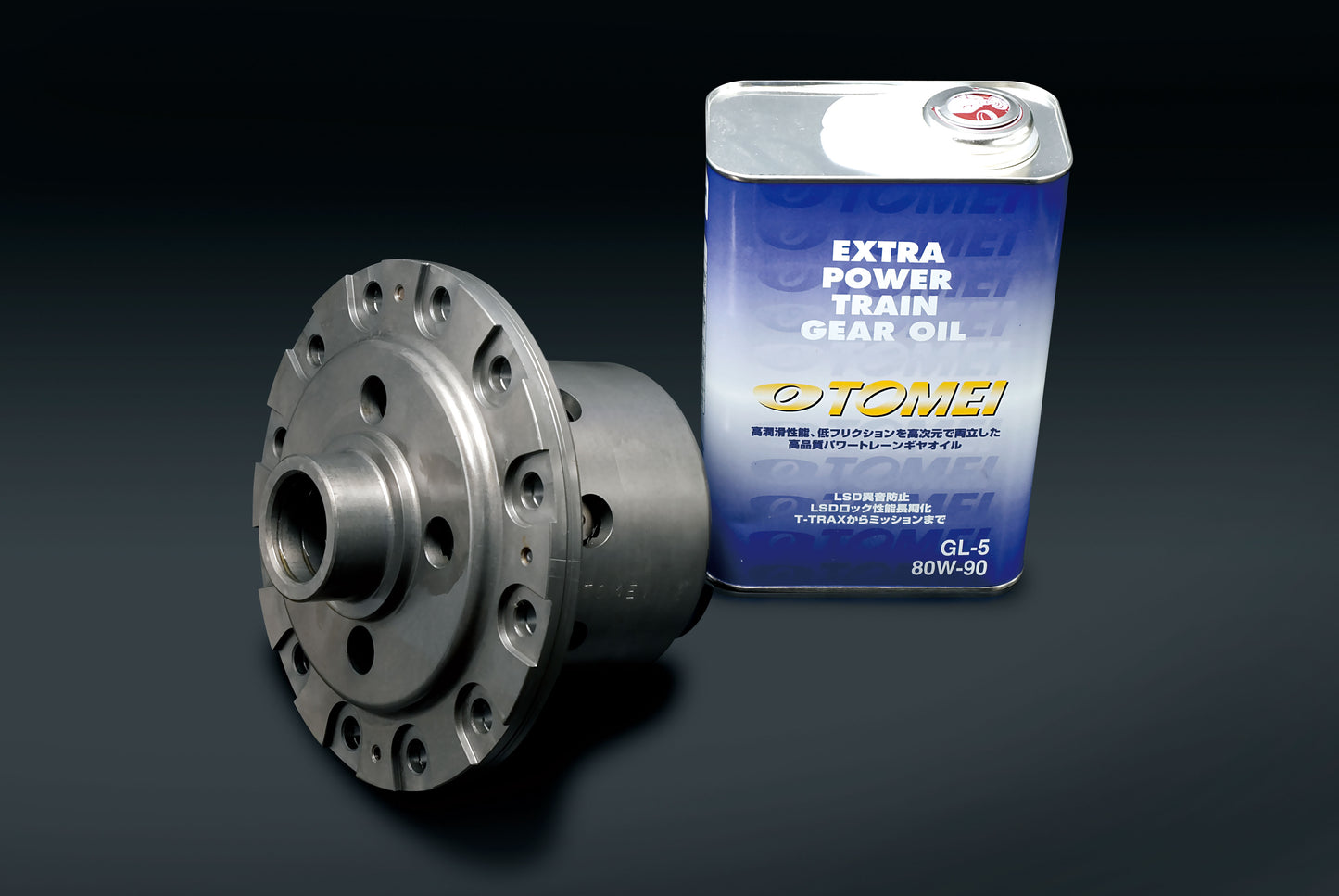

Tomei T-TRAX ADVANCE LSD MAZDA ZDA

Tomei T-TRAX ADVANCE LSD MAZDA ZDA

SKU: 562045
Regular price £979.49
Regular price Sale price £979.49
Sale Sold out
Taxes included.

Some items may take 3-5 days to ship.

2 Way LSD locks very well with being ON or OFF the throttle.

T-TRAX ADVANCE has several advantages over similar products from other manufacturers.
It features optimized cam angles, spring discs, larger surface area clutch discs and a higher initial torque setting. These all translate to improved corner entry, more precise driving, better corner exit traction as well as quicker response through successive corners. T-TRAX ADVANCE offers superior performance in every way.

PRODUCT INFO

TYPE P/N KIT CONTENTS
ZCA 562044 L.S.D ×1
Low Friction High Grade Oil 2 Litres
ZDA 562045
ZA 562029
ZB 562030
ZE 562049

APPLICATION
CAR MAKE MODEL ENGINE GRADE YEAR TRANS
MISSION
LOCATION STD
DIFF
DISCS DISC
SIZE
ADAPTABLE NOTES
RX-7 FC3S 13B NA 85.09-91.10 MT/AT REAR OPEN 12 M ZB
13B TURBO OPEN 12 L ZCA
VISCOUS ZDA
FD3S 13B-REW 91.11-02.08 MT/AT REAR TORSEN 12 L ZCA
RX-8 LA-SE3P 13B-MSP 03.04- MT/AT REAR TORSEN 12 L ZCA
ROADSTER NA6CE B6 89.09-93.09 MT REAR VISCOUS 12 SS ZA #1
AT REAR OPEN 12 SS ZA
NA8C BP-ZE 93.09-98.01 MT/AT REAR OPEN/TORSEN 12 M ZB
NB8C BP-ZE 98.01- MT/AT REAR OPEN/TORSEN 12 M ZB
NB6C B6 98.01- MT/AT REAR OPEN/TORSEN 12 M ZB
NCEC LFVE JDM : 2005.08-
USDM : 2006-2012
MT/AT REAR OPEN/TORSEN 12 M ZE

#1・・・Side Shafts T005-27-270B×2/Circlips F001-25-421A×2 (both left and right need to be exchanged)

FEATURE / SPEC

TYPE DISC SPRING Size & No.
of
Ring Gear Bolts
No.
of
Serration Teeth
Flange
In Dia.
Initial Torque
Pre Setting
(kg.m)
Super High
Initial
Pressure Ring
Cam Angle
Ext Dia. No.
(In Dia.)
No.
(Ex Dia.)
Thickness No.
Ex Teeth
No.
In Teeth
No.
Teeth N/A
No. Teeth N/A
Strengthening
ZCA 160 106 6 6 1.7 2 2 OPT N/A 10-φ10 30T φ33.5 15.0~18.0 60°×60°
ZDA 160 106 6 6 1.7 2 2 OPT N/A 10-φ10 30T φ33.5 15.0~18.0 60°×60°
ZA 114 81 6 6 1.6 N/A N/A 2 OPT 8-φ10 24T φ26.0 4.0~5.0 50°×50°
ZB 134 93 6 6 1.7 N/A N/A 2 N/A 10-φ10 26T φ28.0 6.0~8.0 × 45°×45°
ZE 134 93 4 4 1.7 N/A N/A 2 N/A 10-φ10.3 28T φ29.4 6.0~8.0 × 45°×45

When upgrading to the Technical Trax LSD there is a large significant difference that you have to experience.
Please practice using this LSD in a safe environment to get accustomed to it.

LSD units tend to have a chattering sound when it operates.
This is completely normal and doesn’t mean that there is a problem.
Technical Trax LSD units are vehicle specific and should only be used for the model specified. The kit comes with 2 liters of “T-TRAX hypoid gear LSD oil” in the kit (GL-5 80W-90) and must be used with the Tomei Technical Trax LSD unit.
When using another brand or grade oil you may experience a louder chattering sound from the LSD unit and can increase wearing thus reducing the life span of the LSD unit.
Oils with higher viscosity and higher pressure type lubricants may increase the chance for the LSD chattering noise to increase.
If you want to stop the chattering noise after using aftermarket oil you can try these methods 1: to completely change the oil to the Tomei Technical Trax oil after flushing it completely. 2: If the noise is still present you will have to dismantle the LSD unit and wash & clean each surface area of all internals before reassembling the unit and applying the Tomei Technical Trax Oil. Once the LSD unit is reassembled it is required to reset the initial torque for the LSD unit.
After about 5 kilometers of running the unit in you will need to adjust the unit’s settings.
The value of the initial torques setting can vary after the testing has ended as it depends on upon the vehicles condition of traveling and the type of oil used. If necessary you may need to re-adjust.
REPAIR PARTS
–>
TYPE P/N PARTS SIZE CONTENTS
ZC ZD
ZCA ZDA
563001 Over Haul Kit Plate, Plate Spring & Washer Each For ZC/ZD
563039 Over Haul Kit Plate, Plate Spring & Washer Each For ZCA/ZDA
563002 Friction Disc (External Teeth) Kit Standard Standard Thickness 2 Piece SET
563003 Friction Disc (External Teeth) Kit Thickness Standard Thickness +0.1mm Thickness 2 Piece SET
563004 Friction Disc (Internal Teeth) Kit Standard Standard Thickness 2 Piece SET
563005 Pressure Ring Set 2way ZC/ZD Type Standard Part
563043 Pressure Ring Set 2way ZCA/ZDA Type Standard Part
ZA 563012 Over Haul Kit Plate, Plate Spring & Washer Each
563013 Friction Disc (External Teeth) Kit Standard Standard Thickness 2 Piece SET
563014 Friction Disc (External Teeth) Kit Thickness Standard Thickness +0.1mm Thickness 2 Piece SET
563015 Friction Disc (Internal Teeth) Kit Standard Standard Thickness 2 Piece SET
563047 Spring Disc (Teethless) Kit Standard Standard Thickness 2 Piece SET
563045 Spring Disc (Teethless) Kit 強化 Standard Thickness +0.1mm Thickness 2 Piece SET
ZB 563007 Over Haul Kit Plate, Plate Spring & Washer Each
563008 Friction Disc (External Teeth) Kit Standard Standard Thickness 2 Piece SET
563009 Friction Disc (External Teeth) Kit Thickness Standard Thickness +0.1mm Thickness 2 Piece SET
563010 Friction Disc (Internal Teeth) Kit Standard Standard Thickness 2 Piece SET
563038 Pressure Ring Set 2way ZB Type Standard Part
