TOMEI

Tomei T-TRAX ADVANCE LSD NISSAN EA

Tomei T-TRAX ADVANCE LSD NISSAN EA

SKU: 562019
Regular price £979.49
Regular price Sale price £979.49
Sale Sold out
Taxes included.

Some items may take 3-5 days to ship.

2 Way LSD locks very well with being ON or OFF the throttle.

T-TRAX ADVANCE has several advantages over similar products from other manufacturers.
It features optimized cam angles, spring discs, larger surface area clutch discs and a higher initial torque setting. These all translate to improved corner entry, more precise driving, better corner exit traction as well as quicker response through successive corners. T-TRAX ADVANCE offers superior performance in every way.

PRODUCT INFO

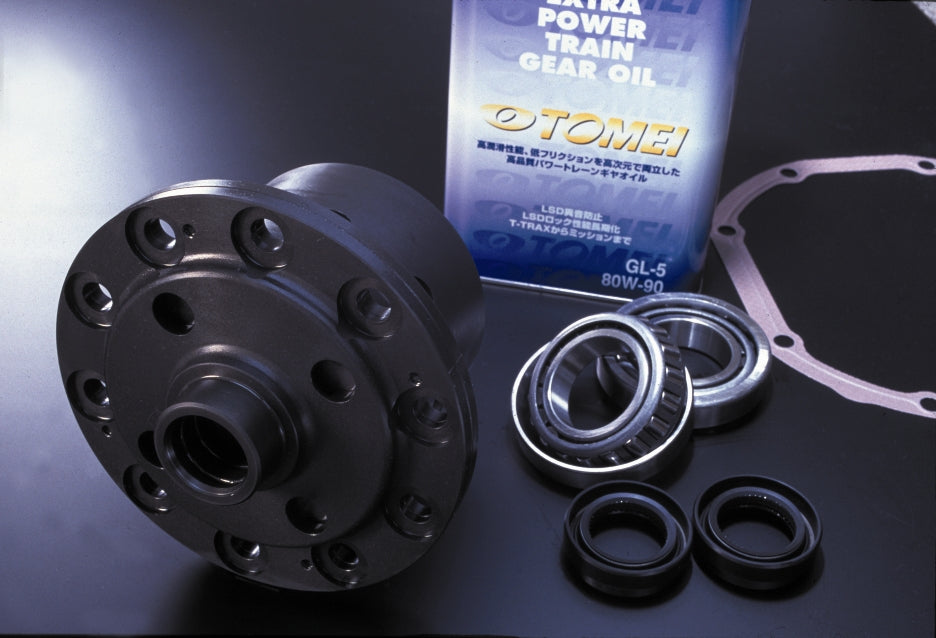

TYPE P/N KIT CONTENTS
AXA 562016 L.S.D ×1
Low Friction High Grade Oil 2 Litres
Carrier Cover Gaskets ×1
Bearings ×2
Oil Seals ×2
CXA 562017
EXA 562018
EA 562019
IA 562021
HA 562020 L.S.D ×1
Low Friction High Grade Oil 2 Litres
HXA 562048

APPLICATION
CAR MAKE MODEL ENGINE GRADE YEAR TRANS
MISSION
LOCATION STD
DIFF
DISCS DISC
SIZE
ADAPTABLE NOTES
SKYLINE HR32 RB20E GTE 89.05-93.08 MT/AT REAR OPEN 16 L IA
VISCOUS 16 L AXA
RB20DE GTS 89.05-93.08 MT/AT REAR OPEN 16 L IA
VISCOUS 16 L AXA
HCR32 RB20DET GTS-t 89.05-93.08 MT/AT REAR VISCOUS 20 L CXA
HNR32 RB20DET GTS4 89.05-93.08 MT/AT REAR VISCOUS 20 L EXA
ER32 RB25DE GTS25 91.08-93.08 MT REAR VISCOUS 16 L AXA
AT REAR VISCOUS 16 L AXA
MT/AT REAR OPEN 16 L IA
BNR32 RB26DETT GT-R(Early) 89.08-93.01 MT REAR MECHANICAL 20 L EA
HR33 RB20E GTS 93.08-96.12 MT/AT REAR OPEN 16 L IA
VISCOUS 16 L AXA
96.12-98.05 MT/AT REAR OPEN 16 L IA
VISCOUS 20 L EXA
ER33 RB25DE GTS25(2Door) 93.08-94.04 MT REAR OPEN 16 L IA
VISCOUS 16 L AXA
94.04-96.01 MT REAR OPEN 16 L IA
VISCOUS 16 L AXA
93.08-96.01 AT REAR OPEN 16 L IA
VISCOUS 16 L AXA
GTS25(4Door) 93.08-96.01 MT/AT REAR OPEN 16 L IA
VISCOUS 16 L AXA
GTS25(ALL) 96.01-96.12 MT/AT REAR OPEN 16 L IA
VISCOUS 16 L AXA
96.12-98.05 MT/AT REAR OPEN 16 L IA
VISCOUS 20 L EXA
ENR33 RB25DE GTS4 93.08-96.12 MT/AT REAR VISCOUS 20 L CXA
96.12-98.05 MT/AT REAR VISCOUS 20 L EXA
ECR33 RB25DET GTS25t 93.08-98.05 MT/AT REAR VISCOUS 20 L CXA #1
HR34 RB20DE GT 98.05-01.06 MT/AT REAR OPEN 20 L EA
VISCOUS 20 L EXA
ER34 RB25DE 25GT 98.05-01.06 MT/AT REAR OPEN 20 L EA
VISCOUS 20 L EXA
ER34 RB25DET   25GT TURBO 98.05-99.08 MT/AT REAR VISCOUS 20 L EXA
99.08-01.06 MT REAR HELICAL 20 L EA
AT REAR VISCOUS 20 L EXA
ENR34 RB25DE 25GT FOUR 98.05-01.06 MT/AT REAR VISCOUS 20 L EXA
V35 VQ35DE    03.01- 6MT REAR VISCOUS 24 L HA
04.11- CVT REAR VISCOUS 24 L HA
VQ25DD 01.06- 6MT REAR VISCOUS 24 L HA
SILVIA S13 CA18DE Q's 88.04-90.12 MT/AT REAR OPEN 16 L IA #2
VISCOUS 16 L AXA
CA18DET K's 88.04-90.12 MT/AT REAR VISCOUS 16 L AXA
PS13 SR20DE Q's 91.01-93.10 MT/AT REAR OPEN 16 L IA #4,#2
VISCOUS 16 L AXA
SR20DET K's 91.01-93.10 MT/AT REAR VISCOUS 16 L AXA
S14 SR20DE Q's 93.10-96.12 MT/AT REAR OPEN 16 L IA #4,#2
VISCOUS 16 L AXA
96.12-99.01 MT/AT REAR OPEN 16 L IA #4,#2
VISCOUS 20 L EXA
SR20DET K's 93.10-96.12 MT REAR VISCOUS 20 L CXA
AT REAR VISCOUS 16 L AXA
96.12-99.01 MT REAR VISCOUS 20 L EXA
AT REAR VISCOUS 20 L CXA
S15 SR20DE SPEC S 99.01-02.08 MT/AT REAR OPEN 20 L EA
HELICAL 20 L EA
VISCOUS 20 L EXA
SR20DET SPEC R 99.01-02.08 MT REAR HELICAL 20 L EA
AT REAR VISCOUS 20 L EXA
180SX RS13 CA18DET TYPE I/II 88.04-91.01 MT/AT REAR VISCOUS 16 L AXA
RPS13 SR20DE TYPE S 96.12-98.12 MT/AT REAR OPEN 16 L IA
VISCOUS 20 L EXA
SR20DET TYPE X・R 91.01-96.12 MT/AT REAR VISCOUS 16 L AXA
96.12-98.12 MT/AT REAR VISCOUS 20 L EXA
240SX S13 KA24E LE/SE
(US MODEL)
89.01-90.12 MT/AT REAR OPEN 16 L IA
VISCOUS 16 L AXA
PS13 KA24DE LE/SE
(US MODEL)
91.01-94.12 MT/AT REAR OPEN 16 L IA
VISCOUS 16 L AXA
S14 KA24DE LE/SE
(US MODEL)
95.10-96.12 MT/AT REAR OPEN 16 L IA
VISCOUS 16 L AXA
97.01-98.12 MT/AT REAR OPEN 16 L IA
VISCOUS 20 L EXA
FAIRLADY Z Z32 VG30DE NA 89.07-98.10 MT/AT REAR VISCOUS 20 L CXA
Z33 VQ35DE NA 02.07-08.11 MT REAR VISCOUS 24 L HA
02.07-08.11 OPEN 24 L HXA
Z34 VQ37VHR NA 08.12- MT REAR VISCOUS 24 L HA
OPEN 24 L HXA
CEDRIC
GLORIA
Y32 VG30DE 91.06-95.06 AT REAR VISCOUS 20 L CXA
VG30DET 91.05-95.06 AT REAR VISCOUS 20 L EXA
Y33 VQ30DE 95.06-99.06 AT REAR OPEN 20 L EA
VISCOUS 20 L EXA
VQ30DET 95.06-99.06 AT REAR OPEN 20 L EA
VISCOUS 20 L EXA
CIMA FGY32 VG30DET 93.09-96.06 AT REAR VISCOUS 20 L EXA
VH41DE AT REAR VISCOUS 20 L EXA
F50 VK45DD 01.01-03.11 AT REAR VISCOUS 24 L HA
VK45DE 03.11- AT REAR VISCOUS 24 L HA
CEFIRO A31 RB20E 88.07-94.07 MT/AT REAR OPEN 16 L IA #4,#2
VISCOUS 16 L AXA
RB20DE 88.07-94.07 MT/AT REAR OPEN 16 L IA
VISCOUS 16 L AXA
RB25DE 88.07-94.07 AT REAR OPEN 16 L IA
VISCOUS 16 L AXA
RB20DET TURBO 88.07-94.07 MT/AT REAR VISCOUS 16 L AXA
NA31 RB20DET 4WD 88.07-94.07 AT REAR VISCOUS 20 L CXA
LAUREL HC33 RB20E 88.12-93.01 MT REAR OPEN 16 L IA #4,#2
88.12-93.01 AT REAR OPEN 16 L IA #2
RB20DE 88.12-93.01 MT/AT REAR VISCOUS 16 L AXA
H(C)C33 RB20DET TURBO 88.12-93.01 MT/AT REAR VISCOUS 16 L AXA
HC34 RB20E 93.01-96.12 AT REAR OPEN 16 L IA #4,#2
VISCOUS 16 L AXA
96.12-97.06 AT REAR OPEN 16 L IA #4,#2
VISCOUS 20 L EXA
RB20DE 93.01-94.09 AT REAR VISCOUS 16 L AXA
GC34 RB25DE 93.01-96.05 AT REAR OPEN 16 L IA
VISCOUS 16 L AXA
96.05-96.12 AT REAR OPEN 16 L IA
VISCOUS 16 L AXA
96.12-97.06 AT REAR OPEN 16 L IA
VISCOUS 20 L EXA
RB25DET TURBO 94.01-96.12 AT REAR VISCOUS 20 L CXA
96.12-97.06 AT REAR VISCOUS 20 L EXA
SC34 RD28 93.01-96.12 MT/AT REAR OPEN 16 L IA
VISCOUS 16 L AXA
96.12-97.06 MT/AT REAR OPEN 16 L IA
VISCOUS 20 L EXA
GNC34 RB25DE 4WD 94.09-96.12 AT REAR VISCOUS 20 L CXA
96.12-97.06 AT REAR VISCOUS 20 L EXA
HC35 RB20DE 97.06- AT REAR OPEN 20 L EA
GC35 RB25DE VISCOUS 20 L EXA
RB25DET TURBO 97.06-02.06 AT REAR OPEN 20 L EA
VISCOUS 20 L EXA
SC35 RD28 97.06-02.08 AT REAR OPEN 20 L EA
VISCOUS 20 L EXA
GNC35 RB25DE 4WD 97.06-02.08 AT REAR OPEN 20 L EA
VISCOUS 20 L EXA
STAGEA M35 VQ25DD 01.10- AT REAR VISCOUS 24 L HA #3
VQ35DE 03.06- AT REAR VISCOUS 24 L HA #3

#1・・・Excluding active LSD models.
#2・・・For Cars equiped with R180 Differential.
#3・・・For Cars with 5 Speed Automatic Transmission.
#4・・・ABS equiped cars.
NISSAN Cars that were produced from December 1996 came equiped with many variations of differentials.
So you will need to carefully check your differential to choose the correct LSD unit for your application.

FEATURE / SPEC

TYPE DISC SPRING Size & No.
of
Ring Gear Bolts
No.
of
Serration Teeth
Flange
In Dia.
Initial Torque
Pre Setting
(kg.m)
Super High
Initial
Pressure Ring
Cam Angle
Ext Dia. No.
(In Dia.)
No.
(Ex Dia.)
Thickness No.
Ex Teeth
No.
In Teeth
No.
Teeth N/A
No. Teeth N/A
Strengthening
AXA 150 106 8 8 1.7 OPT OPT 2 N/A 10-φ12 29T φ32.0 16.5~18.5 60°×60°
CXA 150 106 10 10 1.7 OPT OPT 2 N/A 10-φ13 29T φ32.0 16.5~18.5 60°×60°
EXA 150 106 10 10 1.7 OPT OPT 2 N/A 10-φ13 30T φ32.0 16.5~18.5 60°×60°
EA 150 106 10 10 1.7 OPT OPT 2 N/A 10-φ13 30T φ32.0 16.5~18.5 60°×60°
IA 150 106 8 8 1.7 OPT OPT 2 N/A 10-φ12 29T φ32.0 16.5~18.5 60°×60°
HA 150 106 12 12 1.7 OPT OPT 2 N/A 10-φ13 31T φ32.0 16.5~18.5 60°×60°
HXA 150 106 12 12 1.7 OPT OPT 2 N/A 10-φ13 31T φ32.0 16.5~18.5 60°×60°

When upgrading to the Technical Trax LSD there is a large significant difference that you have to experience.
Please practice using this LSD in a safe environment to get accustomed to it.

LSD units tend to have a chattering sound when it operates.
This is completely normal and doesn’t mean that there is a problem.
Technical Trax LSD units are vehicle specific and should only be used for the model specified. The kit comes with 2 liters of “T-TRAX hypoid gear LSD oil” in the kit (GL-5 80W-90) and must be used with the Tomei Technical Trax LSD unit.
When using another brand or grade oil you may experience a louder chattering sound from the LSD unit and can increase wearing thus reducing the life span of the LSD unit.
Oils with higher viscosity and higher pressure type lubricants may increase the chance for the LSD chattering noise to increase.
If you want to stop the chattering noise after using aftermarket oil you can try these methods 1: to completely change the oil to the Tomei Technical Trax oil after flushing it completely. 2: If the noise is still present you will have to dismantle the LSD unit and wash & clean each surface area of all internals before reassembling the unit and applying the Tomei Technical Trax Oil. Once the LSD unit is reassembled it is required to reset the initial torque for the LSD unit.
After about 5 kilometers of running the unit in you will need to adjust the unit’s settings.
The value of the initial torques setting can vary after the testing has ended as it depends on upon the vehicles condition of traveling and the type of oil used. If necessary you may need to re-adjust.
HIGH INITIAL SPECIAL
The High Initial Torque of the T-TRAX ADVANCE LSD unit can be raised even higher to suit Professional needs. Higher initial specifications can be suited for expert professional levels.

【TYPE AXA/IA】
Specification 1. Standard Specs 2. High Initial Spec (Example)
Friction Disc (External Teeth) 8 Plates 8 Plates
Friction Disc (Internal Teeth) 8 Plates 6 Plates
Spring Disc (External Teeth) 2 Plates
Spring Disc (Internal Teeth) 2 Plates
Spring Disc (Toothless) 2 Plates
Initial Torque 16.5-18.5 18.0-20.0


【TYPE EA/EXA/CXA】
Specification 1. Standard Specs 2. High Initial Spec (Example)
Friction Disc (External Teeth) 10 Plates 10 Plates
Friction Disc (Internal Teeth) 10 Plates 8 Plates
Spring Disc (External Teeth) 2 Plates
Spring Disc (Internal Teeth) 2 Plates
Spring Disc (Toothless) 2 Plates
Initial Torque 16.5-18.5 18.0-20.0


【TYPE HA/HXA】
Specification 1. Standard Specs 2. High Initial Spec (Example)
Friction Disc (External Teeth) 12 Plates 12 Plates
Friction Disc (Internal Teeth) 12 Plates 10 Plates
Spring Disc (External Teeth) 2 Plates
Spring Disc (Internal Teeth) 2 Plates
Spring Disc (Toothless) 2 Plates
Initial Torque 16.5-18.5 18.0-20.0
REPAIR PARTS
TYPE P/N PARTS SIZE CONTENTS
EA
AXA
CXA
EXA
IA
HA
HXA
563040 Over Haul Kit Plate, Plate Spring & Washer Each For EA/CXA/EXA
563041 Over Haul Kit Plate, Plate Spring & Washer Each For AXA/IA
563042 Over Haul Kit Plate, Plate Spring & Washer Each For HA/HXA
563002 Friction Disc (External Teeth) Kit Standard Standard Thickness 2 Piece SET
563003 Friction Disc (External Teeth) Kit Thickness Standard Thickness +0.1mm Thickness 2 Piece SET
563004 Friction Disc (Internal Teeth) Kit Standard Standard Thickness 2 Piece SET
563048 Spring Disc (External Teeth) Kit Standard 2 SET for Super High Initial Torque Modification
563049 Spring Disc (Internal Teeth) Kit Standard 2 SET for Super High Initial Torque Modification
563050 Spring Disc (Teethless) Kit Standard Standard Part 2 PieceSET
563051 Pressure Ring Set 2way Standard Part 2 Way
563052 Pressure Ring Set 1.5way For Modifying 1.5 Way Applications
Old Model O/H
A200 C200
E200 B200
AX200 AX150
CX200 CX150
EX200 EX150
563001 Over Haul Kit Plate, Plate Spring & Washer Each
563002 Friction Disc (External Teeth) Kit Standard Standard Thickness 2 Piece SET
563003 Friction Disc (External Teeth) Kit Thickness Standard Thickness +0.1mm Thickness 2 Piece SET
563004 Friction Disc (Internal Teeth) Kit Standard Standard Thickness 2 Piece SET
563005 Pressure Ring Set 2way 200 Type Standard Part
563006 Pressure Ring Set 1.5way 150 Type Standard Part
G200 563037 Over Haul Kit Plate, Plate Spring & Washer Each
563002 Friction Disc (External Teeth) Kit Standard Standard Thickness 2 Piece SET
563003 Friction Disc (External Teeth) Kit Thickness Standard Thickness +0.1mm Thickness 2 Piece SET
563004 Friction Disc (Internal Teeth) Kit Standard Standard Thickness 2 Piece SET
563005 Pressure Ring Set 2way Standard Part
563006 Pressure Ring Set 1.5way For Conversions
F200 563007 Over Haul Kit Plate, Plate Spring & Washer Each
563008 Friction Disc (External Teeth) Kit Standard Standard Thickness 2 Piece SET
563009 Friction Disc (External Teeth) Kit Thickness Standard Thickness +0.1mm Thickness 2 Piece SET
563010 Friction Disc (Internal Teeth) Kit Standard Standard Thickness 2 Piece SET
563011 Pressure Ring Set 2way Standard Part
