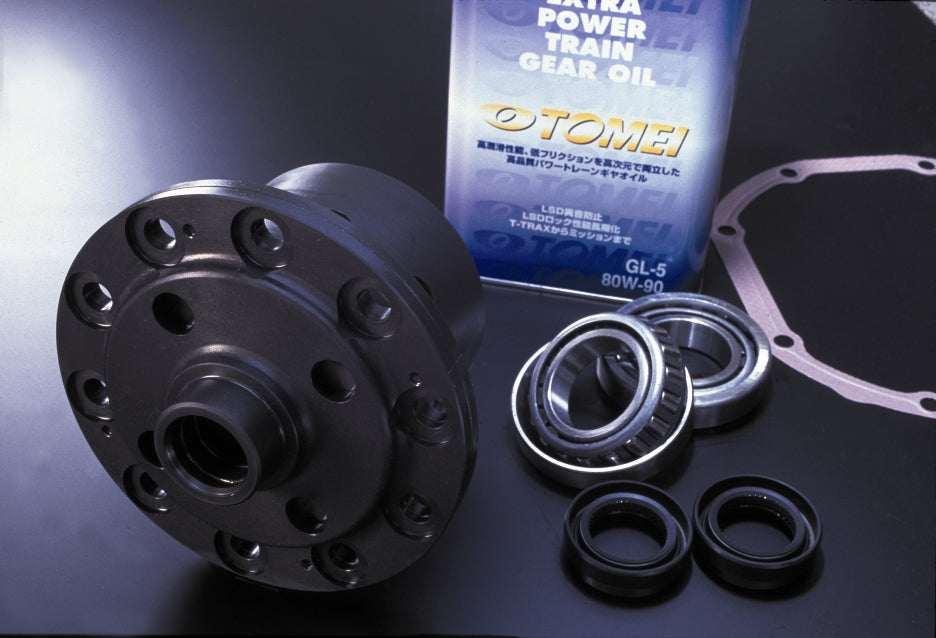

Tomei T-TRAX ADVANCE LSD NISSAN IA

Name: Tomei T-TRAX ADVANCE LSD NISSAN IA
Brand: TOMEI
SKU: 562021
Price: 979.49 GBP
Availability: InStock

SKU: 562021

£979.49

Sale Sold out

Tax included.

Product variants

Some items may take 3-5 days to ship.

Quantity

2 Way LSD locks very well with being ON or OFF the throttle.

T-TRAX ADVANCE has several advantages over similar products from other manufacturers.
It features optimized cam angles, spring discs, larger surface area clutch discs and a higher initial torque setting. These all translate to improved corner entry, more precise driving, better corner exit traction as well as quicker response through successive corners. T-TRAX ADVANCE offers superior performance in every way.

PRODUCT INFO

TYPE	P/N	KIT CONTENTS
AXA	562016	L.S.D ×1 Low Friction High Grade Oil 2 Litres Carrier Cover Gaskets ×1 Bearings ×2 Oil Seals ×2
CXA	562017
EXA	562018
EA	562019
IA	562021
HA	562020	L.S.D ×1 Low Friction High Grade Oil 2 Litres
HXA	562048	L.S.D ×1 Low Friction High Grade Oil 2 Litres

APPLICATION

CAR MAKE	MODEL	ENGINE	GRADE	YEAR	TRANS MISSION	LOCATION	STD DIFF	DISCS	DISC SIZE	ADAPTABLE	NOTES
SKYLINE	HR32	RB20E	GTE	89.05-93.08	MT/AT	REAR	OPEN	16	L	IA
		RB20E	GTE	89.05-93.08	MT/AT	REAR	VISCOUS	16	L	AXA
		RB20DE	GTS	89.05-93.08	MT/AT	REAR	OPEN	16	L	IA
		RB20DE	GTS	89.05-93.08	MT/AT	REAR	VISCOUS	16	L	AXA
	HCR32	RB20DET	GTS-t	89.05-93.08	MT/AT	REAR	VISCOUS	20	L	CXA
	HNR32	RB20DET	GTS4	89.05-93.08	MT/AT	REAR	VISCOUS	20	L	EXA
	ER32	RB25DE	GTS25	91.08-93.08	MT	REAR	VISCOUS	16	L	AXA
					AT	REAR	VISCOUS	16	L	AXA
					MT/AT	REAR	OPEN	16	L	IA
	BNR32	RB26DETT	GT-R(Early)	89.08-93.01	MT	REAR	MECHANICAL	20	L	EA
	HR33	RB20E	GTS	93.08-96.12	MT/AT	REAR	OPEN	16	L	IA
				93.08-96.12	MT/AT	REAR	VISCOUS	16	L	AXA
				96.12-98.05	MT/AT	REAR	OPEN	16	L	IA
				96.12-98.05	MT/AT	REAR	VISCOUS	20	L	EXA
	ER33	RB25DE	GTS25(2Door)	93.08-94.04	MT	REAR	OPEN	16	L	IA
				93.08-94.04	MT	REAR	VISCOUS	16	L	AXA
				94.04-96.01	MT	REAR	OPEN	16	L	IA
				94.04-96.01	MT	REAR	VISCOUS	16	L	AXA
				93.08-96.01	AT	REAR	OPEN	16	L	IA
				93.08-96.01	AT	REAR	VISCOUS	16	L	AXA
			GTS25(4Door)	93.08-96.01	MT/AT	REAR	OPEN	16	L	IA
			GTS25(4Door)	93.08-96.01	MT/AT	REAR	VISCOUS	16	L	AXA
			GTS25(ALL)	96.01-96.12	MT/AT	REAR	OPEN	16	L	IA
				96.01-96.12	MT/AT	REAR	VISCOUS	16	L	AXA
				96.12-98.05	MT/AT	REAR	OPEN	16	L	IA
				96.12-98.05	MT/AT	REAR	VISCOUS	20	L	EXA
	ENR33	RB25DE	GTS4	93.08-96.12	MT/AT	REAR	VISCOUS	20	L	CXA
	ENR33	RB25DE	GTS4	96.12-98.05	MT/AT	REAR	VISCOUS	20	L	EXA
	ECR33	RB25DET	GTS25t	93.08-98.05	MT/AT	REAR	VISCOUS	20	L	CXA	#1
	HR34	RB20DE	GT	98.05-01.06	MT/AT	REAR	OPEN	20	L	EA
	HR34	RB20DE	GT	98.05-01.06	MT/AT	REAR	VISCOUS	20	L	EXA
	ER34	RB25DE	25GT	98.05-01.06	MT/AT	REAR	OPEN	20	L	EA
	ER34	RB25DE	25GT	98.05-01.06	MT/AT	REAR	VISCOUS	20	L	EXA
	ER34	RB25DET	25GT TURBO	98.05-99.08	MT/AT	REAR	VISCOUS	20	L	EXA
				99.08-01.06	MT	REAR	HELICAL	20	L	EA
				99.08-01.06	AT	REAR	VISCOUS	20	L	EXA
	ENR34	RB25DE	25GT FOUR	98.05-01.06	MT/AT	REAR	VISCOUS	20	L	EXA
	V35	VQ35DE		03.01-	6MT	REAR	VISCOUS	24	L	HA
		VQ35DE		04.11-	CVT	REAR	VISCOUS	24	L	HA
		VQ25DD		01.06-	6MT	REAR	VISCOUS	24	L	HA
SILVIA	S13	CA18DE	Q's	88.04-90.12	MT/AT	REAR	OPEN	16	L	IA	#2
		CA18DE	Q's	88.04-90.12	MT/AT	REAR	VISCOUS	16	L	AXA
		CA18DET	K's	88.04-90.12	MT/AT	REAR	VISCOUS	16	L	AXA
	PS13	SR20DE	Q's	91.01-93.10	MT/AT	REAR	OPEN	16	L	IA	#4,#2
		SR20DE	Q's	91.01-93.10	MT/AT	REAR	VISCOUS	16	L	AXA
		SR20DET	K's	91.01-93.10	MT/AT	REAR	VISCOUS	16	L	AXA
	S14	SR20DE	Q's	93.10-96.12	MT/AT	REAR	OPEN	16	L	IA	#4,#2
				93.10-96.12	MT/AT	REAR	VISCOUS	16	L	AXA
				96.12-99.01	MT/AT	REAR	OPEN	16	L	IA	#4,#2
				96.12-99.01	MT/AT	REAR	VISCOUS	20	L	EXA
		SR20DET	K's	93.10-96.12	MT	REAR	VISCOUS	20	L	CXA
				93.10-96.12	AT	REAR	VISCOUS	16	L	AXA
				96.12-99.01	MT	REAR	VISCOUS	20	L	EXA
				96.12-99.01	AT	REAR	VISCOUS	20	L	CXA
	S15	SR20DE	SPEC S	99.01-02.08	MT/AT	REAR	OPEN	20	L	EA
							HELICAL	20	L	EA
							VISCOUS	20	L	EXA
		SR20DET	SPEC R	99.01-02.08	MT	REAR	HELICAL	20	L	EA
		SR20DET	SPEC R	99.01-02.08	AT	REAR	VISCOUS	20	L	EXA
180SX	RS13	CA18DET	TYPE I/II	88.04-91.01	MT/AT	REAR	VISCOUS	16	L	AXA
	RPS13	SR20DE	TYPE S	96.12-98.12	MT/AT	REAR	OPEN	16	L	IA
		SR20DE	TYPE S	96.12-98.12	MT/AT	REAR	VISCOUS	20	L	EXA
		SR20DET	TYPE X・R	91.01-96.12	MT/AT	REAR	VISCOUS	16	L	AXA
		SR20DET	TYPE X・R	96.12-98.12	MT/AT	REAR	VISCOUS	20	L	EXA
240SX	S13	KA24E	LE/SE (US MODEL)	89.01-90.12	MT/AT	REAR	OPEN	16	L	IA
	S13	KA24E	LE/SE (US MODEL)	89.01-90.12	MT/AT	REAR	VISCOUS	16	L	AXA
	PS13	KA24DE	LE/SE (US MODEL)	91.01-94.12	MT/AT	REAR	OPEN	16	L	IA
	PS13	KA24DE	LE/SE (US MODEL)	91.01-94.12	MT/AT	REAR	VISCOUS	16	L	AXA
	S14	KA24DE	LE/SE (US MODEL)	95.10-96.12	MT/AT	REAR	OPEN	16	L	IA
				95.10-96.12	MT/AT	REAR	VISCOUS	16	L	AXA
				97.01-98.12	MT/AT	REAR	OPEN	16	L	IA
				97.01-98.12	MT/AT	REAR	VISCOUS	20	L	EXA
FAIRLADY Z	Z32	VG30DE	NA	89.07-98.10	MT/AT	REAR	VISCOUS	20	L	CXA
	Z33	VQ35DE	NA	02.07-08.11	MT	REAR	VISCOUS	24	L	HA
	Z33	VQ35DE	NA	02.07-08.11	MT	REAR	OPEN	24	L	HXA
	Z34	VQ37VHR	NA	08.12-	MT	REAR	VISCOUS	24	L	HA
	Z34	VQ37VHR	NA	08.12-	MT	REAR	OPEN	24	L	HXA
CEDRIC GLORIA	Y32	VG30DE		91.06-95.06	AT	REAR	VISCOUS	20	L	CXA
	Y32	VG30DET		91.05-95.06	AT	REAR	VISCOUS	20	L	EXA
	Y33	VQ30DE		95.06-99.06	AT	REAR	OPEN	20	L	EA
		VQ30DE		95.06-99.06	AT	REAR	VISCOUS	20	L	EXA
		VQ30DET		95.06-99.06	AT	REAR	OPEN	20	L	EA
		VQ30DET		95.06-99.06	AT	REAR	VISCOUS	20	L	EXA
CIMA	FGY32	VG30DET		93.09-96.06	AT	REAR	VISCOUS	20	L	EXA
	FGY32	VH41DE		93.09-96.06	AT	REAR	VISCOUS	20	L	EXA
	F50	VK45DD		01.01-03.11	AT	REAR	VISCOUS	24	L	HA
	F50	VK45DE		03.11-	AT	REAR	VISCOUS	24	L	HA
CEFIRO	A31	RB20E		88.07-94.07	MT/AT	REAR	OPEN	16	L	IA	#4,#2
		RB20E		88.07-94.07	MT/AT	REAR	VISCOUS	16	L	AXA
		RB20DE		88.07-94.07	MT/AT	REAR	OPEN	16	L	IA
		RB20DE		88.07-94.07	MT/AT	REAR	VISCOUS	16	L	AXA
		RB25DE		88.07-94.07	AT	REAR	OPEN	16	L	IA
		RB25DE		88.07-94.07	AT	REAR	VISCOUS	16	L	AXA
		RB20DET	TURBO	88.07-94.07	MT/AT	REAR	VISCOUS	16	L	AXA
	NA31	RB20DET	4WD	88.07-94.07	AT	REAR	VISCOUS	20	L	CXA
LAUREL	HC33	RB20E		88.12-93.01	MT	REAR	OPEN	16	L	IA	#4,#2
		RB20E		88.12-93.01	AT	REAR	OPEN	16	L	IA	#2
		RB20DE		88.12-93.01	MT/AT	REAR	VISCOUS	16	L	AXA
	H(C)C33	RB20DET	TURBO	88.12-93.01	MT/AT	REAR	VISCOUS	16	L	AXA
	HC34	RB20E		93.01-96.12	AT	REAR	OPEN	16	L	IA	#4,#2
				93.01-96.12	AT	REAR	VISCOUS	16	L	AXA
				96.12-97.06	AT	REAR	OPEN	16	L	IA	#4,#2
				96.12-97.06	AT	REAR	VISCOUS	20	L	EXA
		RB20DE		93.01-94.09	AT	REAR	VISCOUS	16	L	AXA
	GC34	RB25DE		93.01-96.05	AT	REAR	OPEN	16	L	IA
				93.01-96.05	AT	REAR	VISCOUS	16	L	AXA
				96.05-96.12	AT	REAR	OPEN	16	L	IA
				96.05-96.12	AT	REAR	VISCOUS	16	L	AXA
				96.12-97.06	AT	REAR	OPEN	16	L	IA
				96.12-97.06	AT	REAR	VISCOUS	20	L	EXA
		RB25DET	TURBO	94.01-96.12	AT	REAR	VISCOUS	20	L	CXA
		RB25DET	TURBO	96.12-97.06	AT	REAR	VISCOUS	20	L	EXA
	SC34	RD28		93.01-96.12	MT/AT	REAR	OPEN	16	L	IA
				93.01-96.12	MT/AT	REAR	VISCOUS	16	L	AXA
				96.12-97.06	MT/AT	REAR	OPEN	16	L	IA
				96.12-97.06	MT/AT	REAR	VISCOUS	20	L	EXA
	GNC34	RB25DE	4WD	94.09-96.12	AT	REAR	VISCOUS	20	L	CXA
	GNC34	RB25DE	4WD	96.12-97.06	AT	REAR	VISCOUS	20	L	EXA
	HC35	RB20DE		97.06-	AT	REAR	OPEN	20	L	EA
	GC35	RB25DE		97.06-	AT	REAR	VISCOUS	20	L	EXA
		RB25DET	TURBO	97.06-02.06	AT	REAR	OPEN	20	L	EA
		RB25DET	TURBO	97.06-02.06	AT	REAR	VISCOUS	20	L	EXA
	SC35	RD28		97.06-02.08	AT	REAR	OPEN	20	L	EA
	SC35	RD28		97.06-02.08	AT	REAR	VISCOUS	20	L	EXA
	GNC35	RB25DE	4WD	97.06-02.08	AT	REAR	OPEN	20	L	EA
	GNC35	RB25DE	4WD	97.06-02.08	AT	REAR	VISCOUS	20	L	EXA
STAGEA	M35	VQ25DD		01.10-	AT	REAR	VISCOUS	24	L	HA	#3
STAGEA	M35	VQ35DE		03.06-	AT	REAR	VISCOUS	24	L	HA	#3

＃1・・・Excluding active LSD models.
＃2・・・For Cars equiped with R180 Differential.
＃3・・・For Cars with 5 Speed Automatic Transmission.
＃4・・・ABS equiped cars.
NISSAN Cars that were produced from December 1996 came equiped with many variations of differentials.
So you will need to carefully check your differential to choose the correct LSD unit for your application.

FEATURE / SPEC

TYPE		DISC				SPRING				Size & No. of Ring Gear Bolts	No. of Serration Teeth	Flange In Dia.	Initial Torque Pre Setting (kg.m)	Super High Initial	Pressure Ring Cam Angle
TYPE		Ext Dia.	No. (In Dia.)	No. (Ex Dia.)	Thickness	No. Ex Teeth	No. In Teeth	No. Teeth N/A	No. Teeth N/A Strengthening	Size & No. of Ring Gear Bolts	No. of Serration Teeth	Flange In Dia.	Initial Torque Pre Setting (kg.m)	Super High Initial	Pressure Ring Cam Angle
AXA	150	106	8	8	1.7	OPT	OPT	2	N/A	10-φ12	29T	φ32.0	16.5～18.5	○	60°×60°
CXA	150	106	10	10	1.7	OPT	OPT	2	N/A	10-φ13	29T	φ32.0	16.5～18.5	○	60°×60°
EXA	150	106	10	10	1.7	OPT	OPT	2	N/A	10-φ13	30T	φ32.0	16.5～18.5	○	60°×60°
EA	150	106	10	10	1.7	OPT	OPT	2	N/A	10-φ13	30T	φ32.0	16.5～18.5	○	60°×60°
IA	150	106	8	8	1.7	OPT	OPT	2	N/A	10-φ12	29T	φ32.0	16.5～18.5	○	60°×60°
HA	150	106	12	12	1.7	OPT	OPT	2	N/A	10-φ13	31T	φ32.0	16.5～18.5	○	60°×60°
HXA	150	106	12	12	1.7	OPT	OPT	2	N/A	10-φ13	31T	φ32.0	16.5～18.5	○	60°×60°

When upgrading to the Technical Trax LSD there is a large significant difference that you have to experience.
Please practice using this LSD in a safe environment to get accustomed to it.

LSD units tend to have a chattering sound when it operates.
This is completely normal and doesn’t mean that there is a problem.
Technical Trax LSD units are vehicle specific and should only be used for the model specified. The kit comes with 2 liters of “T-TRAX hypoid gear LSD oil” in the kit (GL-5 80W-90) and must be used with the Tomei Technical Trax LSD unit.
When using another brand or grade oil you may experience a louder chattering sound from the LSD unit and can increase wearing thus reducing the life span of the LSD unit.
Oils with higher viscosity and higher pressure type lubricants may increase the chance for the LSD chattering noise to increase.
If you want to stop the chattering noise after using aftermarket oil you can try these methods 1: to completely change the oil to the Tomei Technical Trax oil after flushing it completely. 2: If the noise is still present you will have to dismantle the LSD unit and wash & clean each surface area of all internals before reassembling the unit and applying the Tomei Technical Trax Oil. Once the LSD unit is reassembled it is required to reset the initial torque for the LSD unit.
After about 5 kilometers of running the unit in you will need to adjust the unit’s settings.
The value of the initial torques setting can vary after the testing has ended as it depends on upon the vehicles condition of traveling and the type of oil used. If necessary you may need to re-adjust.

HIGH INITIAL SPECIAL

The High Initial Torque of the T-TRAX ADVANCE LSD unit can be raised even higher to suit Professional needs. Higher initial specifications can be suited for expert professional levels.

【TYPE AXA/IA】

Specification	1. Standard Specs	2. High Initial Spec (Example)
Friction Disc (External Teeth)	8 Plates	8 Plates
Friction Disc (Internal Teeth)	8 Plates	6 Plates
Spring Disc (External Teeth)	–	2 Plates
Spring Disc (Internal Teeth)	–	2 Plates
Spring Disc (Toothless)	2 Plates	–
Initial Torque	16.5-18.5	18.0-20.0

【TYPE EA/EXA/CXA】

Specification	1. Standard Specs	2. High Initial Spec (Example)
Friction Disc (External Teeth)	10 Plates	10 Plates
Friction Disc (Internal Teeth)	10 Plates	8 Plates
Spring Disc (External Teeth)	–	2 Plates
Spring Disc (Internal Teeth)	–	2 Plates
Spring Disc (Toothless)	2 Plates	–
Initial Torque	16.5-18.5	18.0-20.0

【TYPE HA/HXA】

Specification	1. Standard Specs	2. High Initial Spec (Example)
Friction Disc (External Teeth)	12 Plates	12 Plates
Friction Disc (Internal Teeth)	12 Plates	10 Plates
Spring Disc (External Teeth)	–	2 Plates
Spring Disc (Internal Teeth)	–	2 Plates
Spring Disc (Toothless)	2 Plates	–
Initial Torque	16.5-18.5	18.0-20.0

REPAIR PARTS

TYPE	P/N	PARTS	SIZE	CONTENTS
EA AXA CXA EXA IA HA HXA	563040	Over Haul Kit		Plate, Plate Spring & Washer Each For EA/CXA/EXA
	563041	Over Haul Kit		Plate, Plate Spring & Washer Each For AXA/IA
	563042	Over Haul Kit		Plate, Plate Spring & Washer Each For HA/HXA
	563002	Friction Disc (External Teeth) Kit	Standard	Standard Thickness 2 Piece SET
	563003	Friction Disc (External Teeth) Kit	Thickness	Standard Thickness +0.1mm Thickness 2 Piece SET
	563004	Friction Disc (Internal Teeth) Kit	Standard	Standard Thickness 2 Piece SET
	563048	Spring Disc (External Teeth) Kit	Standard	2 SET for Super High Initial Torque Modification
	563049	Spring Disc (Internal Teeth) Kit	Standard	2 SET for Super High Initial Torque Modification
	563050	Spring Disc (Teethless) Kit	Standard	Standard Part 2 PieceSET
	563051	Pressure Ring Set	2way	Standard Part 2 Way
	563052	Pressure Ring Set	1.5way	For Modifying 1.5 Way Applications
Old Model O/H A200 C200 E200 B200 AX200 AX150 CX200 CX150 EX200 EX150	563001	Over Haul Kit		Plate, Plate Spring & Washer Each
	563002	Friction Disc (External Teeth) Kit	Standard	Standard Thickness 2 Piece SET
	563003	Friction Disc (External Teeth) Kit	Thickness	Standard Thickness +0.1mm Thickness 2 Piece SET
	563004	Friction Disc (Internal Teeth) Kit	Standard	Standard Thickness 2 Piece SET
	563005	Pressure Ring Set	2way	200 Type Standard Part
	563006	Pressure Ring Set	1.5way	150 Type Standard Part
G200	563037	Over Haul Kit		Plate, Plate Spring & Washer Each
	563002	Friction Disc (External Teeth) Kit	Standard	Standard Thickness 2 Piece SET
	563003	Friction Disc (External Teeth) Kit	Thickness	Standard Thickness +0.1mm Thickness 2 Piece SET
	563004	Friction Disc (Internal Teeth) Kit	Standard	Standard Thickness 2 Piece SET
	563005	Pressure Ring Set	2way	Standard Part
	563006	Pressure Ring Set	1.5way	For Conversions
F200	563007	Over Haul Kit		Plate, Plate Spring & Washer Each
	563008	Friction Disc (External Teeth) Kit	Standard	Standard Thickness 2 Piece SET
	563009	Friction Disc (External Teeth) Kit	Thickness	Standard Thickness +0.1mm Thickness 2 Piece SET
	563010	Friction Disc (Internal Teeth) Kit	Standard	Standard Thickness 2 Piece SET
	563011	Pressure Ring Set	2way	Standard Part

View full details

Country/region

Tomei T-TRAX ADVANCE LSD NISSAN IA
