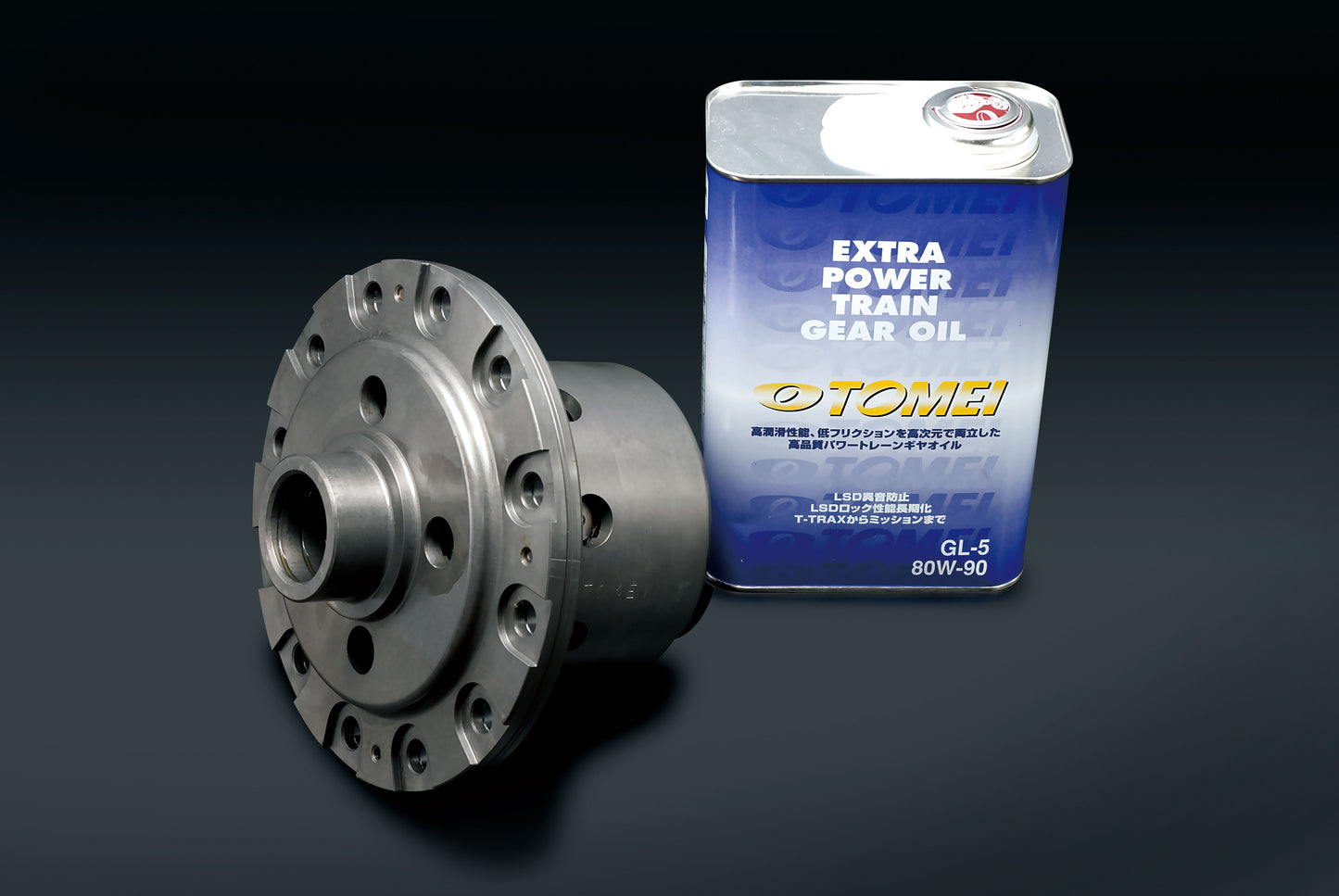

Tomei T-TRAX ADVANCE LSD TOYOTA TB

Tomei T-TRAX ADVANCE LSD TOYOTA TB

SKU: 562027
£1,065.00
£1,065.00
Sale Sold out
Taxes included. Shipping calculated at checkout.

Some items may take 3-5 days to ship.
2 Way LSD locks very well with being ON or OFF the throttle.

T-TRAX ADVANCE has several advantages over similar products from other manufacturers.
It features optimized cam angles, spring discs, larger surface area clutch discs and a higher initial torque setting. These all translate to improved corner entry, more precise driving, better corner exit traction as well as quicker response through successive corners. T-TRAX ADVANCE offers superior performance in every way.

PRODUCT INFO

TYPE P/N KIT CONTENTS
TAA 562041 L.S.D ×1
Low Friction High Grade Oil 2 Litres
TXA 562042
TGA 562047
TB 562027
TC 562028
TD 562033
TE 562034

APPLICATION

【TOYOTA】


CAR MAKE MODEL ENGINE GRADE YEAR TRANS
MISSION		 LOCATION STD
DIFF		 DISCS DISC
SIZE		 ADAPTABLE NOTES
86/FR-S ZN6 FA20 12.04- MT REAR OPEN/TORSEN 16 L TGA
LEVIN
/TRUENO		 AE86 4A-GE GT Early
Model		 83.05-85.10 MT/AT REAR OPEN 12 S TE
GT Late
Model		 85.10-87.04 MT/AT REAR OPEN 12 S TD
SUPRA GA70 1G-GE 88.08-90.08 MT/AT REAR OPEN 16 L TXA
90.08-93.05 MT/AT REAR OPEN 16 L TAA
TORSEN 16 L TXA
1G-GTE 86.02-90.08 MT/AT REAR OPEN 16 L TXA
90.08-93.05 MT/AT REAR OPEN 16 L TAA
TORSEN 16 L TXA
MA70 7M-GTE 86.02-90.08 MT/AT REAR OPEN 16 L TAA
JZA70 1JZ-GTE 90.08-93.05 MT/AT REAR OPEN 16 L TAA
TORSEN 16 L TXA
JZA80 2JZ-GE 93.05-96.05 MT/AT REAR OPEN/TORSEN 8 L TB ＃1
96.06-02.08 MT/AT REAR OPEN/TORSEN 8 L TB
2JZ-GTE RZ 93.05-96.05 6MT REAR TORSEN 18 L TC
93.05-96.05 AT REAR OPEN/TORSEN 8 L TB ＃1
96.06- MT/AT REAR OPEN/TORSEN 8 L TB ＃2
MARK II
/CHASER
/CRESTA		 GX71 1G-GTE 84.08-88.08 MT/AT REAR OPEN 16 L TAA
GX81 1G-GTE 88.08-92.10 MT/AT REAR OPEN 16 L TXA
LSD 16 L TAA
1G-GZE 88.08-92.10 MT/AT REAR OPEN 16 L TXA
JZX81 1JZ-GE 90.08-92.10 MT/AT REAR OPEN 16 L TXA
1JZ-GTE TURBO 90.08-92.10 MT/AT REAR OPEN 16 L TAA
JZX90 1JZ-GTE TOURER V 92.10-96.08 MT/AT REAR OPEN 16 L TAA
TORSEN 16 L TXA
JZX91 2JZ-GE 92.10-96.08 AT REAR OPEN 16 L TXA
JZX100 1JZ-GE TOURER S 96.09-98.08 5AT REAR OPEN 16 L TXA
98.08-00.10 5AT REAR OPEN 16 L TAA
JZX100 1JZ-GTE TOURER V 96.09-00.10 MT REAR OPEN 16 L TAA
OPEN 16 L TXA
96.09-99.07 AT REAR OPEN 16 L TAA
TORSEN 16 L TXA
99.08-00.10 AT REAR OPEN/TORSEN 16 L TXA
JZX101 2JZ-GE 96.09-97.08 AT REAR OPEN 16 L TXA
97.08-00.10 AT REAR OPEN 16 L TAA
MARK II JZX110 1JZ-GTE GRANDE iR-V 00.10-04.10 MT/AT REAR OPEN 16 L TAA
TORSEN 16 L TXA
GRANDE G-tb 00.10-04.10 AT REAR OPEN 16 L TAA
MARK X GRX120 4GR-FSE 04.11-09.10 AT REAR OPEN 16 L TAA
GRX121 3GR-FSE 04.11-09.10 AT REAR OPEN 16 L TAA
SOARER MZ20/21 7M-GTE 86.01-91.04 MT/AT REAR OPEN 16 L TAA
GZ20 1G-GTE 86.01-88.07 MT/AT REAR OPEN 16 L TAA
88.07-91.04 MT REAR OPEN 16 L TXA
LSD 16 L TAA
AT REAR OPEN 16 L TAA
JZZ30 1JZ-GTE 91.06-96.08 MT/AT REAR OPEN/TORSEN 8 L TB ＃1
96.08-00.12 MT/AT REAR OPEN/TORSEN 8 L TB
JZZ31 2JZ-GE 91.06-96.08 MT/AT REAR OPEN/TORSEN 8 L TB ＃1
96.08-00.12 MT/AT REAR OPEN/TORSEN 8 L TB
UZZ31 1UZ-FE 91.06-96.08 MT/AT REAR OPEN/TORSEN 8 L TB ＃1
96.08-00.12 MT/AT REAR OPEN/TORSEN 8 L TB
UZZ40 3UZ-FE 01.04-03.05 AT REAR OPEN 8 L TB ＃1
ARISTO UZS143 1UZ-FE 4WD 92.10-97.08 AT REAR TORSEN 8 L TB ＃1
JZS147 2JZ-GE 91.10-97.08 AT REAR OPEN 8 L TB
2JZ-GTE 91.10-97.08 AT REAR OPEN/TORSEN 8 L TB ＃1
JZS160 2JZ-GE 97.08-03.04 AT REAR OPEN/TORSEN 8 L TB ＃1
JZS161 2JZ-GTE 97.08-03.04 AT REAR OPEN/TORSEN 8 L TB ＃1
MAJESTA JZS147 2JZ-GE ?91.01-95.08 AT REAR OPEN/TORSEN 8 L TB ＃1
JZS149 2JZ-GE ?91.01-95.08 AT REAR OPEN/TORSEN 8 L TB ＃1
UZS141 1UZ-FE 92.10-95.08 AT REAR OPEN/TORSEN 8 L TB ＃1
UZS143 1UZ-FE 92.10-95.08 AT REAR OPEN/TORSEN 8 L TB ＃1
UZS145 1UZ-FE ?92.10-95.08 AT REAR OPEN/TORSEN 8 L TB ＃1
UZS155 1UZ-FE 95.09-99.08 AT REAR OPEN/TORSEN 8 L TB ＃3
JZS155 2JZ-GE 95.09-99.08 AT REAR OPEN/TORSEN 8 L TB
UZS151 1UZ-FE 95.09-99.08 AT REAR OPEN/TORSEN 8 L TB
UZS157 1UZ-FE 95.09-99.08 AT REAR OPEN/TORSEN 8 L TB

＃1・・・TORSEN equiped models will require the side shafts to be exchanged (both left & right part numbers 41309-24020×2)
＃2 ・・・6M/Cars with 30 Spline
＃3・・・'95.8～'97.7models will require the side shafts to be exchanged (both left & right part numbers 41309-24020×2)



【SUBARU】

CAR MAKE MODEL ENGINE GRADE YEAR TRANS
MISSION		 LOCATION STD
DIFF		 DISCS DISC
SIZE		 ADAPTABLE NOTES
BRZ ZC6 FA20 12.03- MT REAR OPEN/TORSEN 16 L TGA

FEATURE / SPEC

TYPE DISC SPRING Size & No.
of
Ring Gear Bolts		 No.
of
Serration Teeth		 Flange
In Dia.		 Initial Torque
Pre Setting
(kg.m)		 Super High
Initial		 Pressure Ring
Cam Angle
Ext Dia. No.
(In Dia.)		 No.
(Ex Dia.)		 Thickness No.
Ex Teeth		 No.
In Teeth		 No.
Teeth N/A		 No. Teeth N/A
Strengthening
TAA 160 106 8 8 1.7 OPT OPT 2 N/A 10-φ11 30T φ35.0 16.5～18.5 ○ 60°×60°
TXA 160 106 8 8 1.7 OPT OPT 2 N/A 10-φ11 30T φ35.0 16.5～18.5 ○ 60°×60°
TGA 160 106 8 8 1.7 OPT OPT 2 N/A 10-φ11 30T φ35.0 16.5～18.5 ○ 60°×60°
TB 150 106 4 4 1.7 2 2 – N/A 10-φ11 30T φ35.0 12.0～14.0 × 60°×60°
TC 160 106 10 8 1.7 2 OPT – N/A 12-φ12 35T φ38.0 11.0～13.0 ○ 60°×60°
TD 125 85 6 6 1.6 N/A N/A 2 OPT 8-φ11.3 23T φ25.9 5.0～6.0 △ 45°×45°
TE 125 85 6 6 1.6 N/A N/A 2 OPT 8-φ11.3 23T φ24.4 5.0～6.0 △ 45°×45°

When upgrading to the Technical Trax LSD there is a large significant difference that you have to experience.
Please practice using this LSD in a safe environment to get accustomed to it.

LSD units tend to have a chattering sound when it operates.
This is completely normal and doesn’t mean that there is a problem.
Technical Trax LSD units are vehicle specific and should only be used for the model specified. The kit comes with 2 liters of “T-TRAX hypoid gear LSD oil” in the kit (GL-5 80W-90) and must be used with the Tomei Technical Trax LSD unit.
When using another brand or grade oil you may experience a louder chattering sound from the LSD unit and can increase wearing thus reducing the life span of the LSD unit.
Oils with higher viscosity and higher pressure type lubricants may increase the chance for the LSD chattering noise to increase.
If you want to stop the chattering noise after using aftermarket oil you can try these methods 1: to completely change the oil to the Tomei Technical Trax oil after flushing it completely. 2: If the noise is still present you will have to dismantle the LSD unit and wash & clean each surface area of all internals before reassembling the unit and applying the Tomei Technical Trax Oil. Once the LSD unit is reassembled it is required to reset the initial torque for the LSD unit.
After about 5 kilometers of running the unit in you will need to adjust the unit’s settings.
The value of the initial torques setting can vary after the testing has ended as it depends on upon the vehicles condition of traveling and the type of oil used. If necessary you may need to re-adjust.
HIGH INITIAL SPECIAL
The High Initial Torque of the T-TRAX ADVANCE LSD unit can be raised even higher to suit Professional needs. Higher initial specifications can be suited for expert professional levels.

【TYPE TA/TXA/TGA】
Specification 1. Standard Specs 2. High Initial Spec (Example)
Friction Disc (External Teeth) 8 Plates 8 Plates
Friction Disc (Internal Teeth) 8 Plates 6 Plates
Spring Disc (External Teeth) – 2 Plates
Spring Disc (Internal Teeth) – 2 Plates
Spring Disc (Toothless) 2 Plates –
Initial Torque 16.5-18.5 18.0-20.0
REPAIR PARTS
TYPE P/N PARTS SIZE CONTENTS
TAA
TXA
TA
TB
TGA		 563001 Over Haul Kit Plate, Plate Spring & Washer Each For TB
563001 Over Haul Kit Plate, Plate Spring & Washer Each For TA
563041 Over Haul Kit Plate, Plate Spring & Washer Each For TAA/TXA/TGA
563002 Friction Disc (External Teeth) Kit Standard Standard Thickness 2 Piece SET
563003 Friction Disc (External Teeth) Kit Thickness Standard Thickness +0.1mm Thickness 2 Piece SET
563004 Friction Disc (Internal Teeth) Kit Standard Standard Thickness 2 Piece SET
563048 Spring Disc (External Teeth) Kit Standard 2 SET for Super High Initial Torque Modification
563049 Spring Disc (Internal Teeth) Kit Standard 2 SET for Super High Initial Torque Modification
563050 Spring Disc (Teethless) Kit Standard Standard Part 2 Way
563005 Pressure Ring Set 2way TB/TA Type Standard Part
563043 Pressure Ring Set 2way TAA/TXA/TGA Type Standard Part
TD
TE		 563016 Over Haul Kit Plate, Plate Spring & Washer Each
563017 Friction Disc (External Teeth) Kit Standard Standard Thickness 2 Piece SET
563018 Friction Disc (External Teeth) Kit Thickness Standard Thickness +0.1mm Thickness 2 Piece SET
563019 Friction Disc (Internal Teeth) Kit Standard Standard Thickness 2 Piece SET
563047 Spring Disc (Teethless) Kit Standard Standard Thickness 2 Piece SET
563020 Pressure Ring Set 2way Standard Part 2 Way
TFA
TF		 563007 Over Haul Kit Plate, Plate Spring & Washer Each For TF
563044 Over Haul Kit Plate, Plate Spring & Washer Each For TFA
563008 Friction Disc (External Teeth) Kit Standard Standard Thickness 2 Piece SET
563009 Friction Disc (External Teeth) Kit Thickness Standard Thickness +0.1mm Thickness 2 Piece SET
563010 Friction Disc (Internal Teeth) Kit Standard Standard Thickness 2 Piece SET
563011 Pressure Ring Set 2way TF Type Standard Part
563046 Pressure Ring Set 2way TFA Type Standard Part
