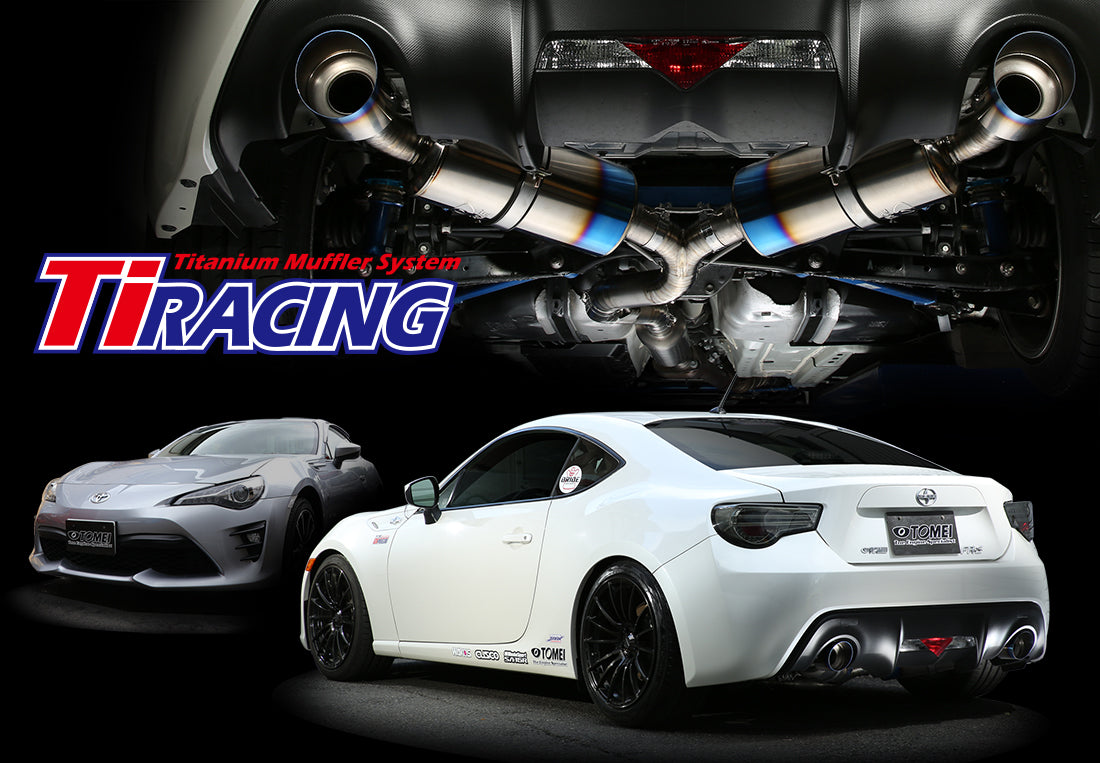

Tomei Ti RACING TITANIUM MUFFLER for 86/BRZ/FR-S

Tomei Ti RACING TITANIUM MUFFLER for 86/BRZ/FR-S

SKU: 441001
£1,523.66
£1,523.66
Sale Sold out
Taxes included. Shipping calculated at checkout.

Some items may take 3-5 days to ship.
Dual titanium exhaust! High performance, light weight with tuned sound.

This all new Ti RACING 86/BRZ/FR-S exhaust system has been designed to improve the performance at all RPM range from low to mid, and then smoothly shift to high RPM range reducing the well-known the mid range hesitation.
Sub muffler in the main pipe, then split into 2 after axle and 2 mufflers in both side.
This structure helps reducing the sound while maximizing the performance.
Front spherical flange fits the stock front pipe and any other aftermarket front pipe with the spherical style flange.

PRODUCT INFO

APPLICATION P/N NOTES
86
BRZ
FRS		 441001 ※FOR OFF ROAD USE ONLY.

FEATURE / SPEC

 Ti RACING Titanium Exhaust series has been designed to improve total performance while reducing the sound as much as possible to meet the sound regulation at the tracks, while EXPREME Ti series has been designed just to unleash engine’s true potential and improve the total performance.
ORIGINAL TITANIUM MATERIAL
To ensure and maintain reasonable price, supreme quality and stable supply, this product is made from TOMEI original titanium material which is refined from raw material and made into performance parts all under quality controlled environment. 		END TIPS
Blue burnt titanium color and laser marked TOMEI logo on the end tips.These together give it the great appearance and prove the best quality. 		PRECISION WELDS
Titanium is known as a difficult material to weld.Its strength, long-life and beautiful appearance all prove the true quality.
MAIN MUFFLERS
Large muffler shells eliminates problem of sound issues at the tracks without reducing performance.Stamped TOMEI logo and gradation titanium color on the mirror finished mufflers. 		  HIGH QUALITY GLASS WOOL
Filled with even more glass wool comparing to existing EXPREME Ti series to reduce and tune the sound.High quality long filament glass wool is very durable and prevents aging deteriorations caused by continues high heat and high pressure. 		  MAIN PIPE
Same free flow design as the existing models with all new pipe layout to ensure enough ground clearance.

KIT CONTENTS

  • MAIN PIPE A (1)
  • MAIN PIPE B (1)
  • MAIN PIPE C (1)
  • MAIN SILENCER LH (1)
  • MAIN SILENCER RH (1)
  • END TIP (2)
  • SILENCER BAND LH (1)
  • SILENCER BAND RH (1)
  • SPRING (7)
  • CLAMP BAND (2)
  • FLANGE NUT A M8 (2)
  • FLANGE BOLT M8 L=22 (2)
  • FLANGE NUT B M8 (2)
  • FLANGE BOLT M8 L=55(2)
  • BAND RUBBER (2)
  • BUTTON BOLT (4)
  • BOLT SMOOTH PASTE(1)
  • ALLEN KEY (1)
    		•
    SPEC

    This all new design meets and exceeds the performance of existing EXPREME Ti series which is full-straight structure. This full titanium dual exhaust system also lowers 7.5kg in the total weight comparing to the stock exhaust..
    *This exhaust system may be louder with late model.
    Ti RACING TYPE-60S STD
    MATERIAL TITANIUM TITANIUM STEEL
    MAIN PIPE DIAMETER Φ60.5 Φ60.5 Φ54.0
    SUB SILENCER DIAMETER Φ120 Φ115 Φ100
    MAIN SILENCER DIAMETER Φ152 Φ115 Φ350x 190 OVAL
    PIPE THICKNESS 1mm 1mm 1.2mm
    EXIT DIAMETER Φ102 Φ105 Φ90×75
    EXIT STYLE SLANT CUT / DUAL OUT – OVAL DOUBLE PIPE / DUAL OUT
    FLANGE THICKNESS 2.0mm 2.0mm 2.0mm
    EXHAUST TEST LEVELS
    前期MT
    後期MT
    		 IDLING:66.0db
    5260RPM:95.0db

    IDLING(With Inner Silencer):65.0db
    5260RPM(With Inner Silencer):92.0db

    *measured in early model with M/T.     		IDLING:59.5db
    5260RPM:88.5db

    *measured in early model with M/T.
    IDLING:63.5db
    5260RPM:91.0db    		 IDLING:69.5db
    5260RPM:97.0db
    WEIGHT 9.85kg 6.4kg 17.4kg
    DATA
    LAYOUT
    From 60.5mm straight main pipe to dual end pieces. Designed to reduce the sound as much as possible without reducing performance to meet the growing problem of sound issues at the tracks.

    COOL APPERANCE

    Slant-cut end tips are adjustable slide tips for better fitment with the rear bumper.
