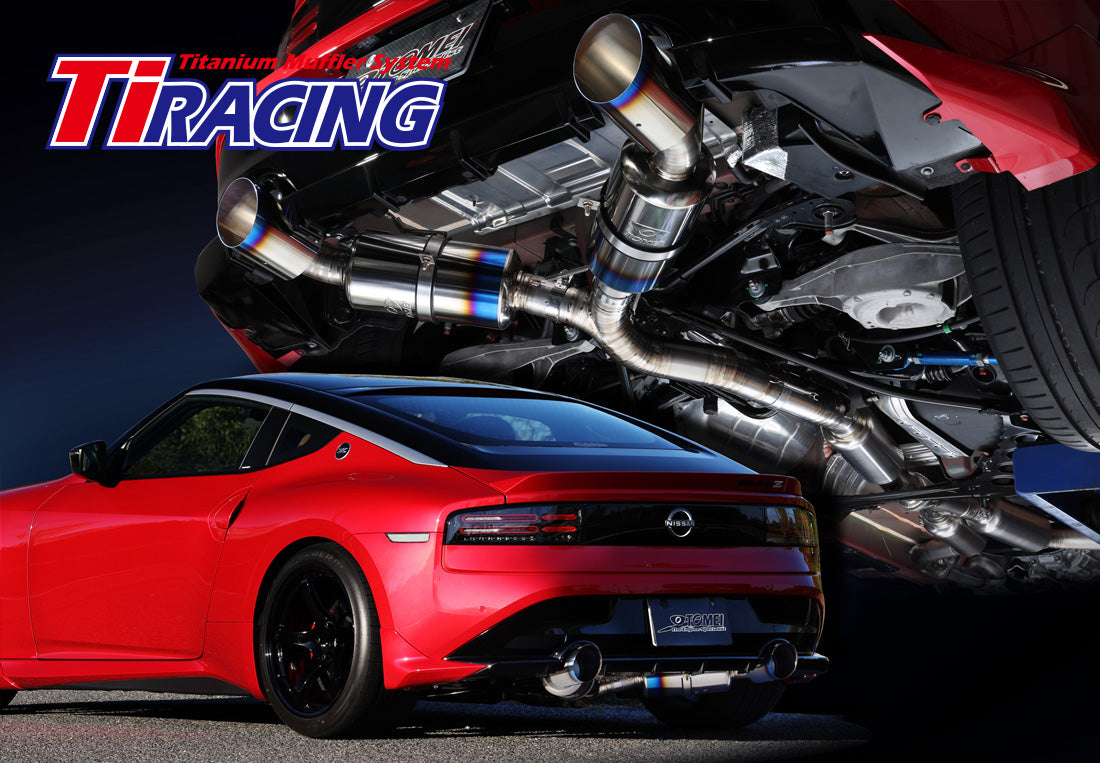

Ti RACING TITANIUM MUFFLER for RZ34/400Z

EXHAUST SYSTEM

Dual out exhaust system to unlock the true performance of RZ34

sub-muffler of the factory exhaust, as well as by its full 80mm setup from the Mid Y-Pipe while maintaining ground clearance.
Designed to meet the recent sound level requirements of the tracks yet still focused on the flow-efficiency and weight reduction.

PRODUCT INFO

FEATURE / SPEC

 Ti RACING Titanium Exhaust series has been designed to improve total performance while reducing the sound as much as possible to meet the sound regulation at the tracks, while EXPREME Ti series has been designed just to unleash engine’s true potential and improve the total performance.

ORIGINAL TITANIUM MATERIAL To ensure and maintain reasonable price, supreme quality and stable supply, this product is made from TOMEI original titanium material which is refined from raw material and made into performance parts all under quality controlled environment.		END TIPS Slash-cut, 120mm slide-able end tips can adjust the rear style to suite each bumper shape and preference.Titanium blue with laser marked TOMEI logo on the end tips.They together give it the great appearance and prove the best quality.		PRECISION WELDS Titanium is known as a difficult material to weld. Its strength, long-life and beautiful appearance all prove the true quality.
MAIN MUFFLERS Large muffler shells eliminates problem of sound issues at the tracks without reducing performance.Stamped TOMEI logo and gradation titanium color on the mirror finished mufflers.		HIGH QUALITY GLASS WOOL Filled with even more glass wool comparing to existing EXPREME Ti series to reduce and tune the sound.High quality long filament glass wool is very durable and prevents aging deteriorations caused by continues high heat and high pressure.		SOUND REDUCER/SILENCER The kit comes with end silencer baffles that can be attached as needed to comply with various environmental restrictions.

KIT CONTENTS

MAIN PIPE A (1) MAIN PIPE B (1) MAIN SILENCER LH (1) MAIN SILENCER RH (1) SILENCER L (1) SILENCER R (1) COLLECTOR PIPE (1) END TIP (2) SOUND REDUCER/SILENCER (2) CONNECTOR STAY (1) SILENCER BAND LH (1) SILENCER BAND RH (1) BAND RUBBER (2) BLIND PLUG(2) GUSKETφ60 (1) GUSKETφ80 (1) CLAMP BAND φ60 (2) CLAMP BAND φ70 (2) CLAMP BAND φ80 (1) SPRING (5) COPPER WASHER (2) FLANGE NUT (2) FLANGE BOLT (2) BUTTON BOLT (4) BOLT SMOOTH PASTE(1) ALLEN KEY (1)

The kit includes the Mid Y-Pipe section with enlarged diameter of 60.5mm compared to the original 45mm, that becomes to 80mm after the merge and connects straight to the rear section without a restriction.
The straight-through silencer on the Mid Y-Pipe eliminates rattles and tunes the sound.
