TOMEI

Tomei Ti RACING TITANIUM MUFFLER for Z33/350Z

Tomei Ti RACING TITANIUM MUFFLER for Z33/350Z

SKU: 441004
Regular price £1,899.00
Regular price Sale price £1,899.00
Sale Sold out
Taxes included.

Some items may take 3-5 days to ship.

Dual-out racing exhaust for the true performance of Z!

Designed not to sacrifice ground clearance on lowered vehicles by the optimized piping layout.
The new design joint flange on the center pipe is narrowing-free design that makes true straight-through 80mm system without any restrictions when combined with the new Ti RACING Mid Y-Pipe!

PRODUCT INFO

APPLICATION P/N NOTES
VQ35DE/HR Z33/350Z 441004 ※FOR OFF ROAD USE ONLY.

FEATURE / SPEC

 Ti RACING Titanium Exhaust series has been designed to improve total performance while reducing the sound as much as possible to meet the sound regulation at the tracks, while EXPREME Ti series has been designed just to unleash engine’s true potential and improve the total performance.

ORIGINAL TITANIUM MATERIAL
To ensure and maintain reasonable price, supreme quality and stable supply, this product is made from TOMEI original titanium material which is refined from raw material and made into performance parts all under quality controlled environment.
END TIPS
Slash-cut, 120mm slide-able end tips can adjust the rear style to suite each bumper shape and preference.Titanium blue with laser marked TOMEI logo on the end tips.They together give it the great appearance and prove the best quality.
PRECISION WELDS
Titanium is known as a difficult material to weld.Its strength, long-life and beautiful appearance all prove the true quality.
MAIN MUFFLERS
Large muffler shells eliminates problem of sound issues at the tracks without reducing performance.Stamped TOMEI logo and gradation titanium color on the mirror finished mufflers.
  HIGH QUALITY GLASS WOOL
Filled with even more glass wool comparing to existing EXPREME Ti series to reduce and tune the sound.High quality long filament glass wool is very durable and prevents aging deteriorations caused by continues high heat and high pressure.


KIT CONTENTS

  • MAIN PIPE A (1)
  • MAIN PIPE B (1)
  • MAIN SILENCER LH (1)
  • MAIN SILENCER RH (1)
  • END TIP (2)
  • SILENCER BAND LH (1)
  • SILENCER BAND RH (1)
  • SPRING (5)
  • GUSKET (1)
  • CLAMP BAND φ70 (2)
  • CLAMP BAND φ80 (1)
  • FLANGE NUT (2)
  • FLANGE BOLT (2)
  • BAND RUBBER (2)
  • BUTTON BOLT (4)
  • BOLT SMOOTH PASTE(1)
  • ALLEN KEY (1)
  • SPEC
    Mufflers set on each side after the split is the key to reduce the noise level while maintaining the best flowing efficiency.
    The best matched pipe diameter that is proven by great amount of tries and errors increases the peak power without ruining the low-mid torque.


    Ti RACING STD
    MATERIAL TITANIUM STAINLESS/STEEL
    MAIN PIPE DIAMETER Φ80S-Φ70W Φ60.5
    SUB SILENCER DIAMETER Φ120.0 105×170 OVAL
    MAIN SILENCER DIAMETER Φ152 190x 340 W600 OVAL
    PIPE THICKNESS 1mm 1.5mm
    EXIT DIAMETER Φ120.0 Φ101.0
    EXIT STYLE SLANT CUT / DUAL OUT CURL TIP / DUAL OUT
    FLANGE THICKNESS 8.0mm 8.0mm
    EXHAUST TEST LEVELS IDLING:66.0db
    4650RPM:105.5db
    IDLING:61.0db
    4650RPM:86.0db
    WEIGHT 10.2kg 21.0kg

    BEST WITH Ti RACING MID Y-PIPE


    True-straight 80mm exhaust system can be achieved by combining with the new Ti RACING Titanium Mid Y-Pipe that is designed to connect to Ti RACING Titanium Exhaust Muffler without any narrowing in the joint.
    DATA

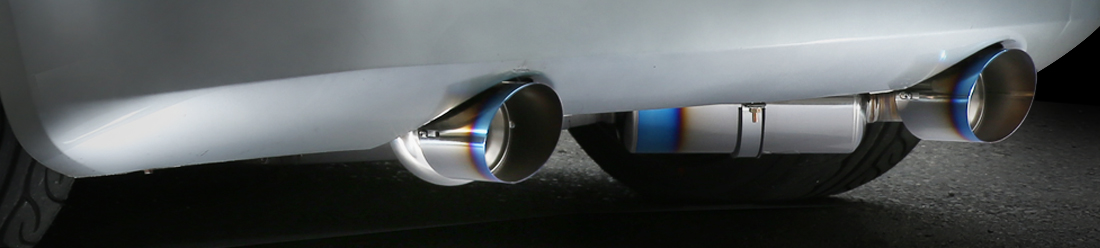

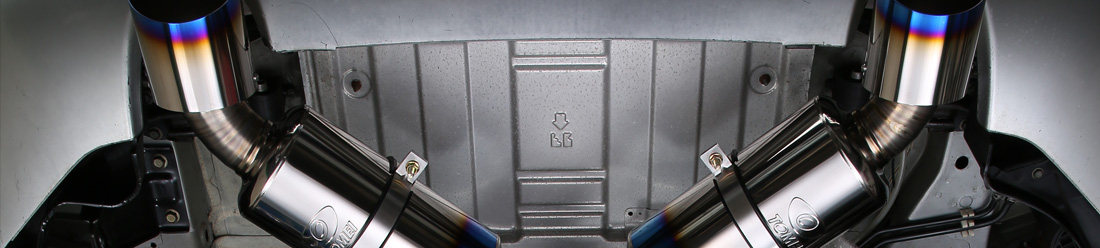

    STYLE
