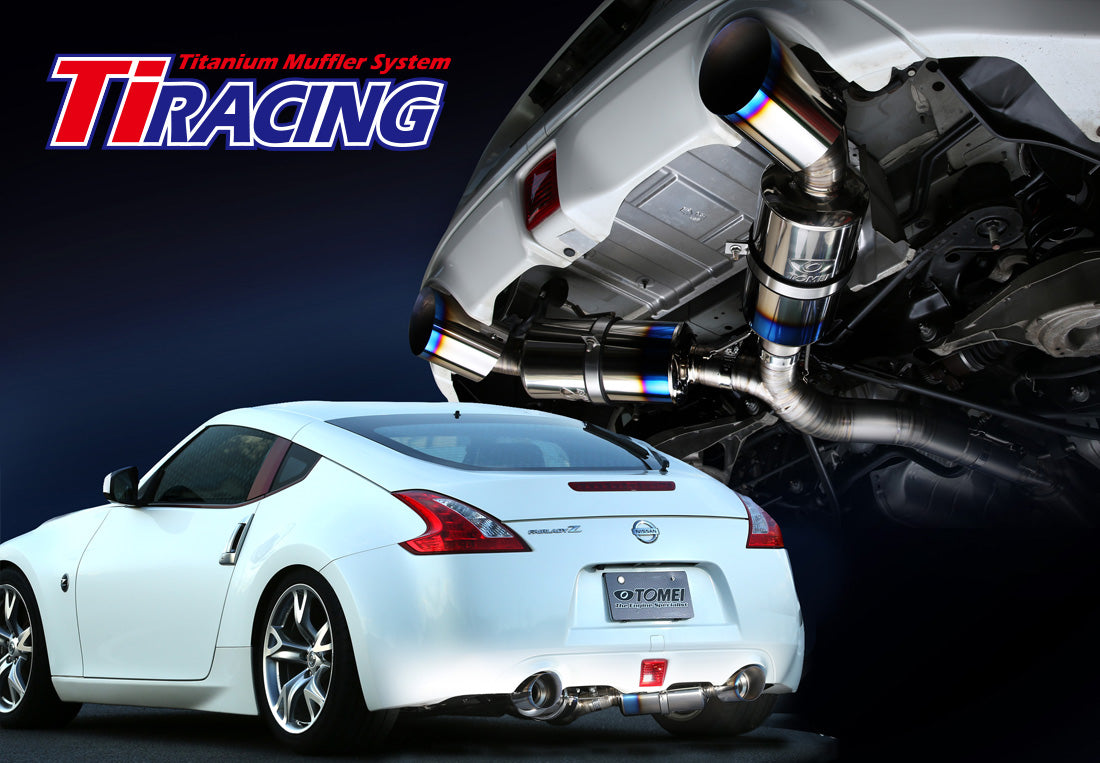

Ti RACING TITANIUM MUFFLER for Z34/370Z

EXHAUST SYSTEM

Designed to meet the recent sound level requirements of the tracks yet still focused on the flow-efficiency and weight reduction!

Designed to optimize exhaust flow by eliminating restrictions after the sub-muffler of the factory exhaust while maintaining ground clearance.
A full 80mm straight setup can be achieved when combined with the TOMEI Mid Y-Pipe.
The end tips enhance the racing aesthetic with a titanium burnt finish and a laser-engraved TOMEI logo.

PRODUCT INFO

APPLICATION P/N
NOTES
VQ37VHR Z34/370Z 441005
※FOR OFF ROAD USE ONLY.

FEATURE / SPEC

 Ti RACING Titanium Exhaust series has been designed to improve total performance while reducing the sound as much as possible to meet the sound regulation at the tracks, while EXPREME Ti series has been designed just to unleash engine’s true potential and improve the total performance.
ORIGINAL TITANIUM MATERIAL
To ensure and maintain reasonable price, supreme quality and stable supply, this product is made from TOMEI original titanium material which is refined from raw material and made into performance parts all under quality controlled environment. 		END TIPS
Slash-cut, 120mm slide-able end tips can adjust the rear style to suite each bumper shape and preference.Titanium blue with laser marked TOMEI logo on the end tips.They together give it the great appearance and prove the best quality. 		PRECISION WELDS
Titanium is known as a difficult material to weld. Its strength, long-life and beautiful appearance all prove the true quality.
MAIN MUFFLERS
Large muffler shells eliminates problem of sound issues at the tracks without reducing performance.Stamped TOMEI logo and gradation titanium color on the mirror finished mufflers. 		  HIGH QUALITY GLASS WOOL
Filled with even more glass wool comparing to existing EXPREME Ti series to reduce and tune the sound.High quality long filament glass wool is very durable and prevents aging deteriorations caused by continues high heat and high pressure. 		  SOUND REDUCER/SILENCER
The kit comes with end silencer baffles that can be attached as needed to comply with various environmental restrictions.

KIT CONTENTS

  • MAIN PIPE A (1)
  • MAIN PIPE B (1)
  • MAIN SILENCER LH (1)
  • MAIN SILENCER RH (1)
  • END TIP (2)
  • SOUND REDUCER/SILENCER (2)
  • SILENCER BAND LH (1)
  • SILENCER BAND RH (1)
  • SPRING (5)
  • GUSKET (1)
  • CLAMP BAND φ70 (2)
  • CLAMP BAND φ80 (1)
  • FLANGE NUT (2)
  • FLANGE BOLT (2)
  • BAND RUBBER (2)
  • BUTTON BOLT (4)
  • BOLT SMOOTH PASTE(1)
  • ALLEN KEY (1)
SPEC
Mufflers set on each side after the split is the key to reduce the noise level while maintaining the best flowing efficiency.
The best matched pipe diameter that is proven by great amount of tries and errors increases the peak power without ruining the low-mid torque.

Ti RACING STD
MATERIAL TITANIUM STAINLESS/STEEL
MAIN PIPE DIAMETER Φ80S-Φ70W φ60-φ50W-φ42.7-φ55W
SUB SILENCER DIAMETER Φ120 φ102W
MAIN SILENCER DIAMETER Φ152 180x 330 W620 OVAL
PIPE THICKNESS 1mm 1.5mm
EXIT DIAMETER Φ120 OVAL(110-95)
EXIT STYLE SLANT CUT / DUAL OUT CURL TIP / DUAL OUT
FLANGE THICKNESS 8.0mm 8.0mm
EXHAUST TEST LEVELS IDLING:72.0db
4650RPM:108.0db		 IDLING:62.0db
4650RPM:88.0db
WEIGHT 10.2kg 20.0kg
STYLE


RELATED PRODUCT

True-straight 80mm exhaust system can be achieved by combining with the new Ti RACING Titanium Mid Y-Pipe that is designed to connect to Ti RACING Titanium Exhaust Muffler without any narrowing in the joint. - 431008
